Draining Fluids and Oil Filter Removal

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Oil Pan Drain Plug & O-Ring
    GM1408844Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil pan drain plug (430) with O-ring (429).

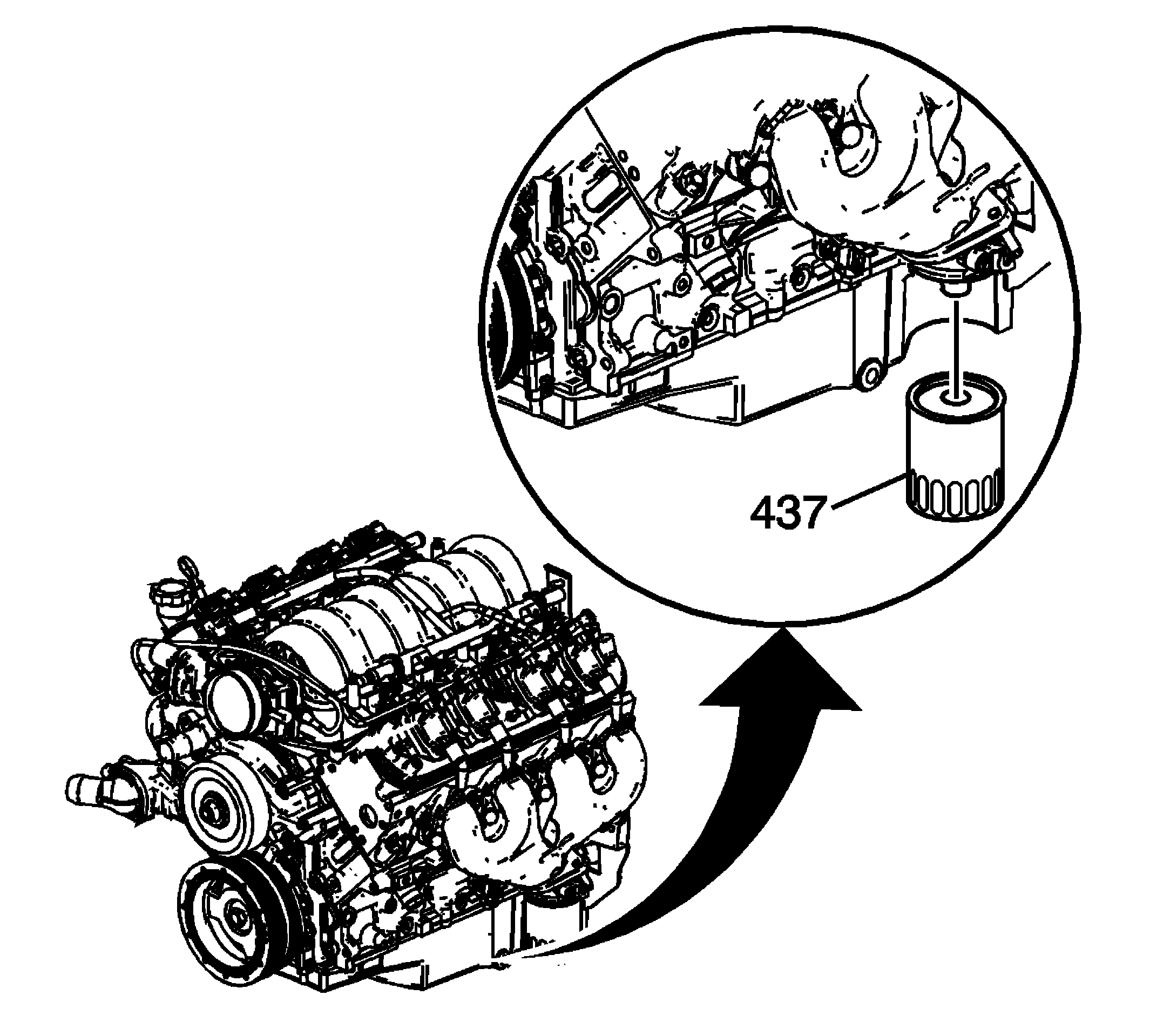

    2. Fig 2: Engine Oil Filter
    GM1408845Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine oil filter (437).

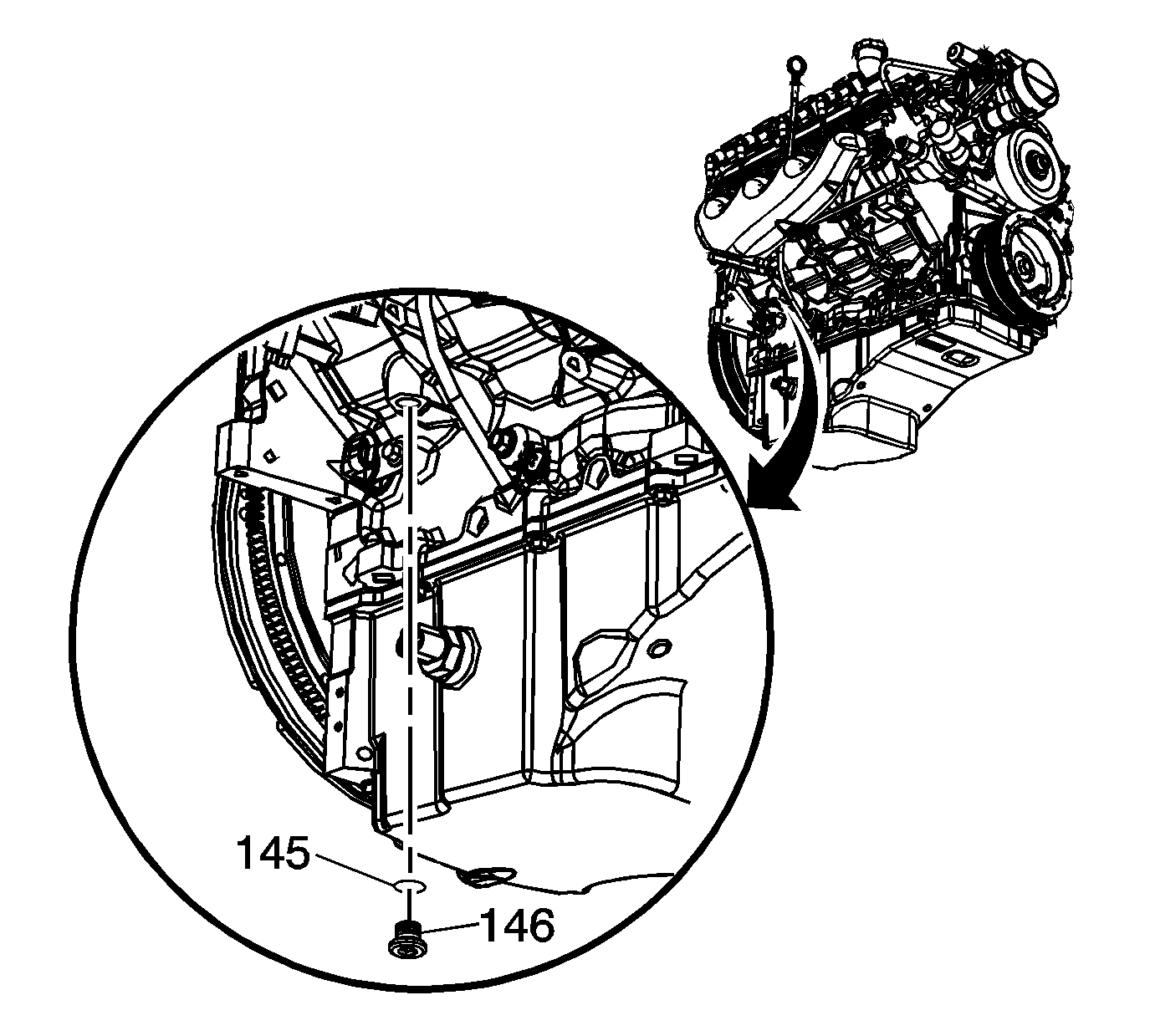

    3. Fig 3: Engine Block Coolant Drain Plug
    GM1559828Courtesy of GENERAL MOTORS CORP.
  3. Remove the right side rear engine block coolant drain hole plug (146) with washer (145).

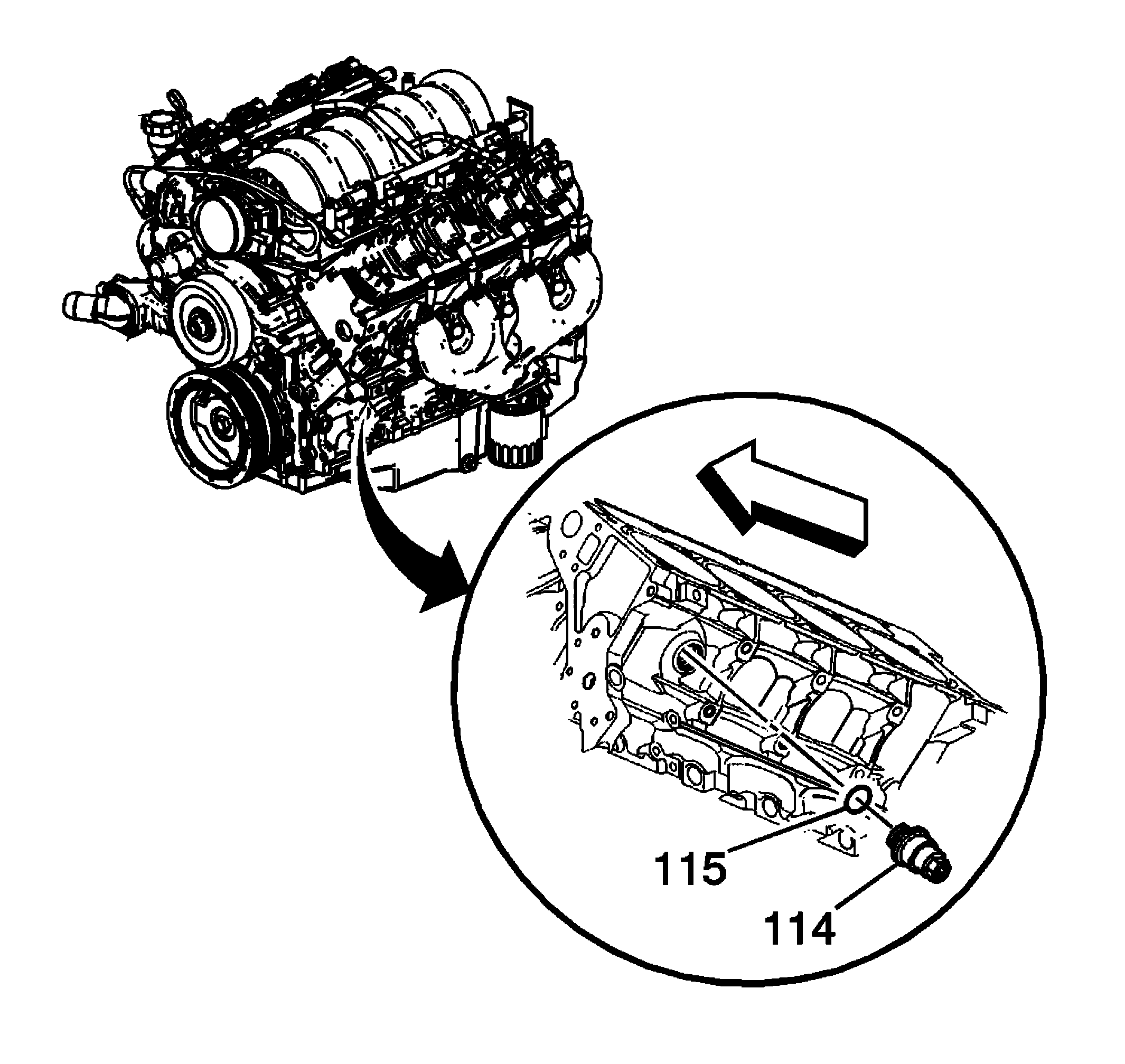

    4. Fig 4: Engine Block Coolant Heater & Washer
    GM1408846Courtesy of GENERAL MOTORS CORP.
  4. Remove the engine block coolant heater (114) with washer (115).
