Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    CAUTION: Refer to Fastener Caution .

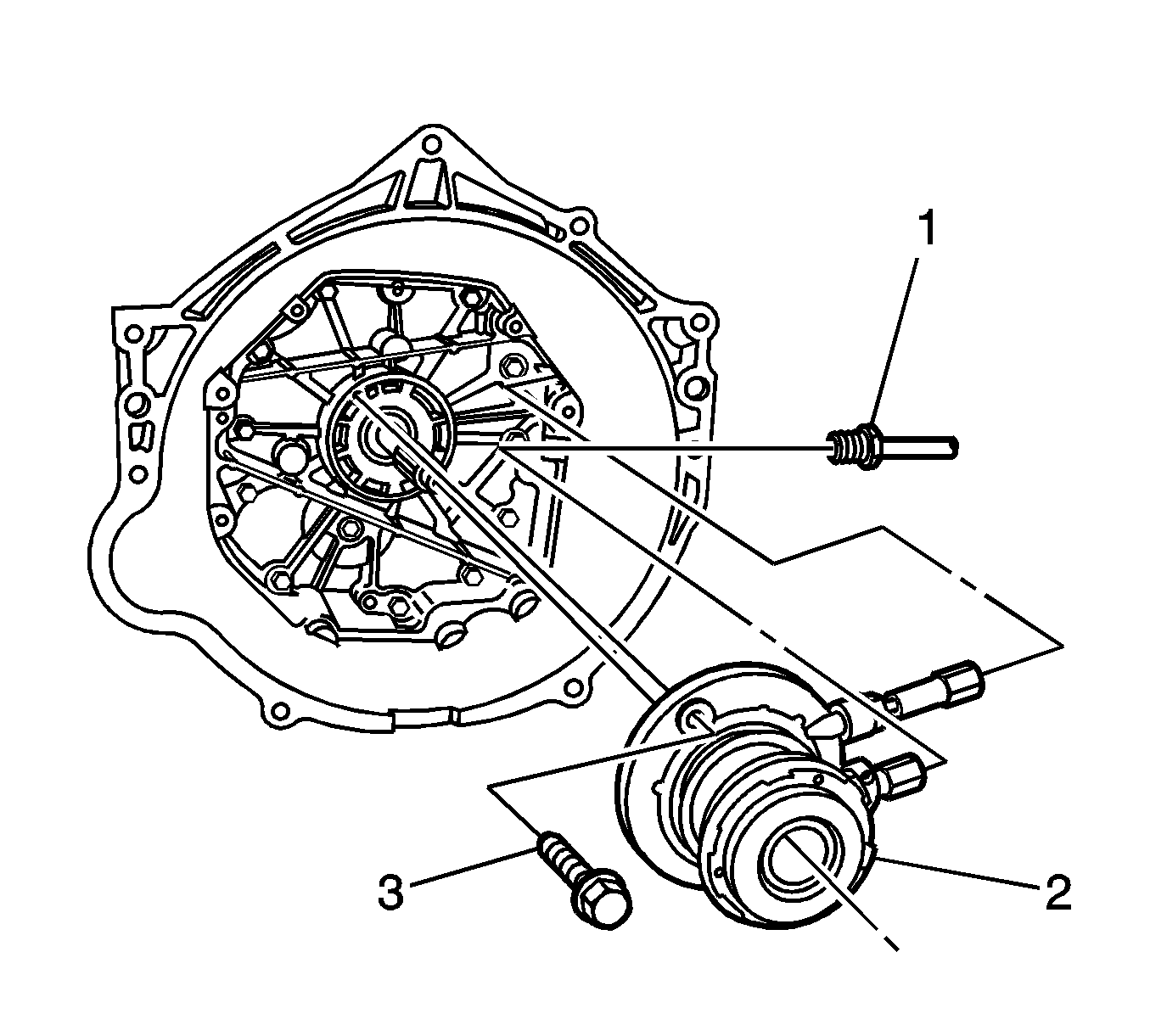

    Fig 1: View Of Pipe Fitting & Clutch Slave Cylinder Bolts
    GM1347270Courtesy of GENERAL MOTORS CORP.
  1. Install the clutch slave cylinder and bolts (3).

    Tighten:  Tighten the clutch actuator cylinder bolts (3) to 10 N.m (115 lb in).

  2. Connect the pipe fitting (1) to the clutch slave cylinder.

    Tighten:  Tighten the pipe fitting (1) to 13 N.m (88 lb in).

  3. Install the manual transmission to the vehicle. Refer to Transmission Replacement .
