Coolant Recovery Reservoir Replacement

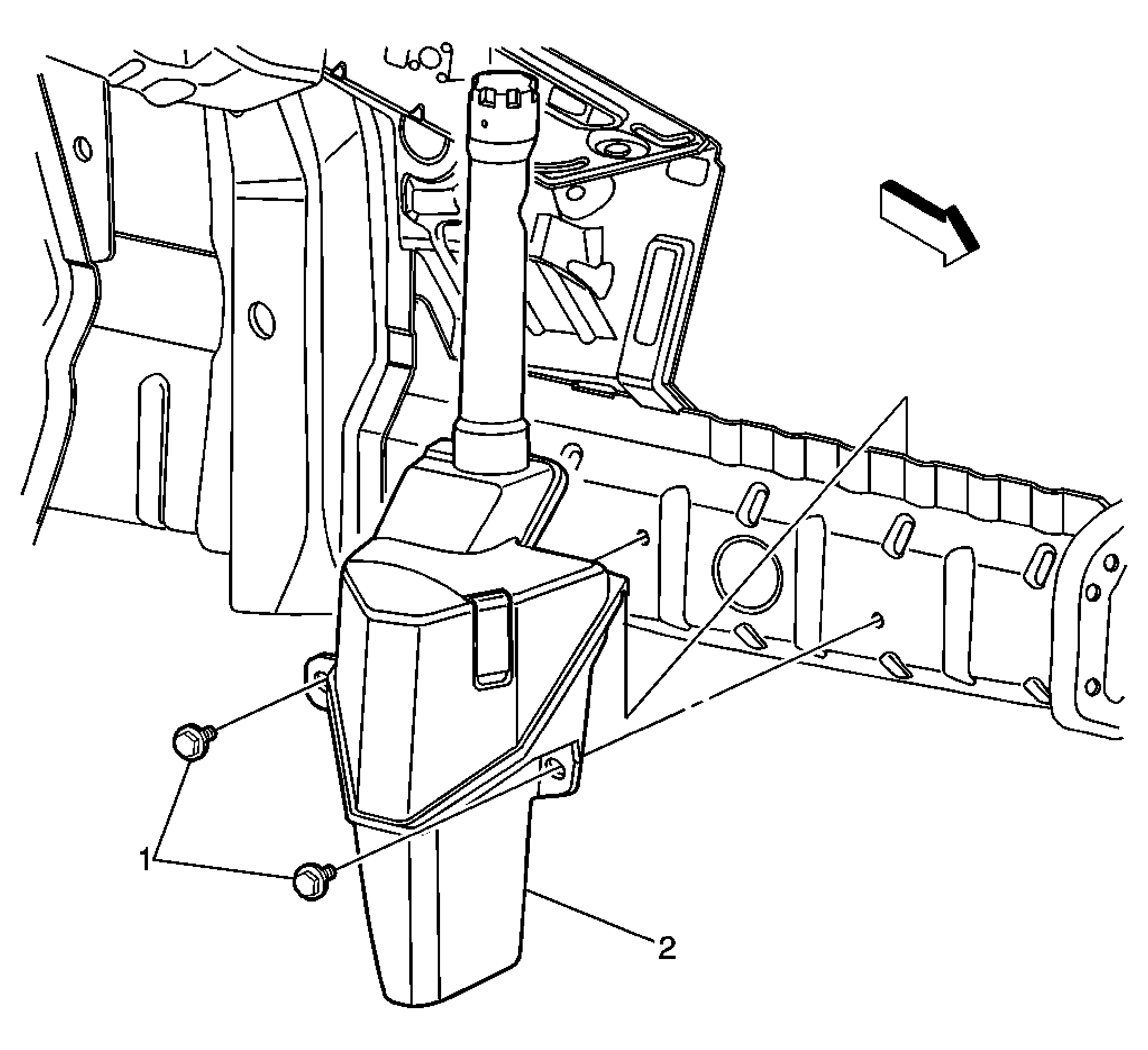

Fig 1: Coolant Recovery Reservoir
GM2209225Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Refer to Cooling System Draining and Filling (LS3, L99 Static Fill)  or Cooling System Draining and Filling (LLT Static Fill)  or Cooling System Draining and Filling (GE 47716) .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Remove the radiator overflow hose. Refer to Radiator Overflow Hose Replacement (LLT)  or Radiator Overflow Hose Replacement (LS3, L99) .
1 Coolant Recovery Reservoir Bolt (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten:  17 N.m (13 lb ft)
2 Coolant Recovery Reservoir
