Radiator Overflow Hose Replacement (LLT)

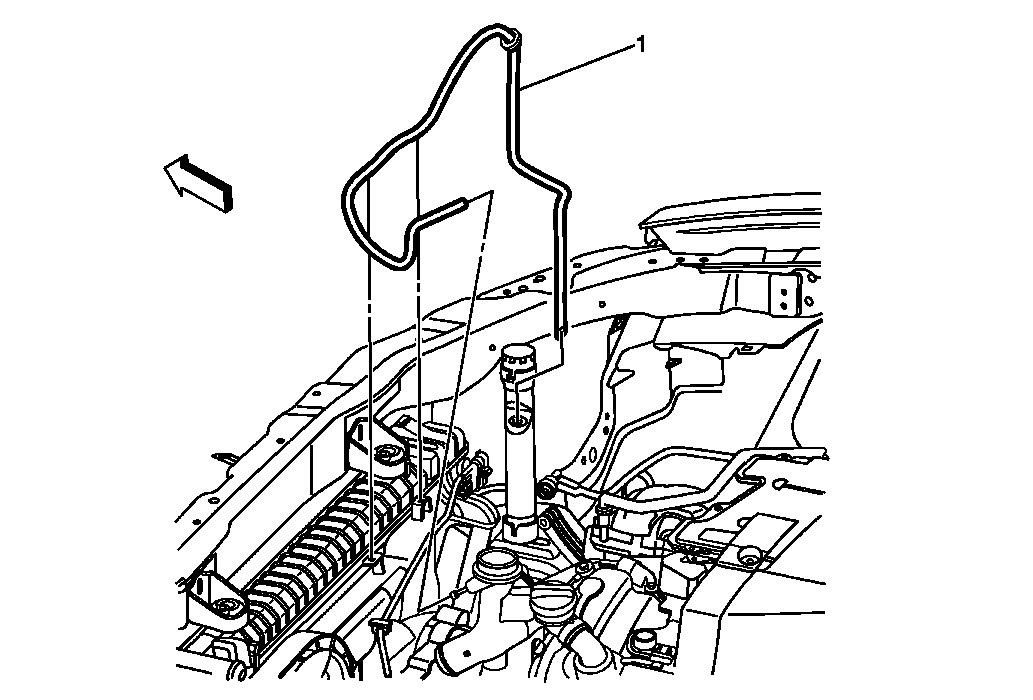

Fig 1: Radiator Overflow Hose (LLT)
GM2185134Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Drain the coolant from the radiator overflow hose.
  2. Remove front intake manifold cover. Refer to Intake Manifold Cover Replacement - Front
  3. Remove air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement
1 Radiator Overflow Hose
