Transmission Mount Bracket Replacement - Left Side (RPO LS4)

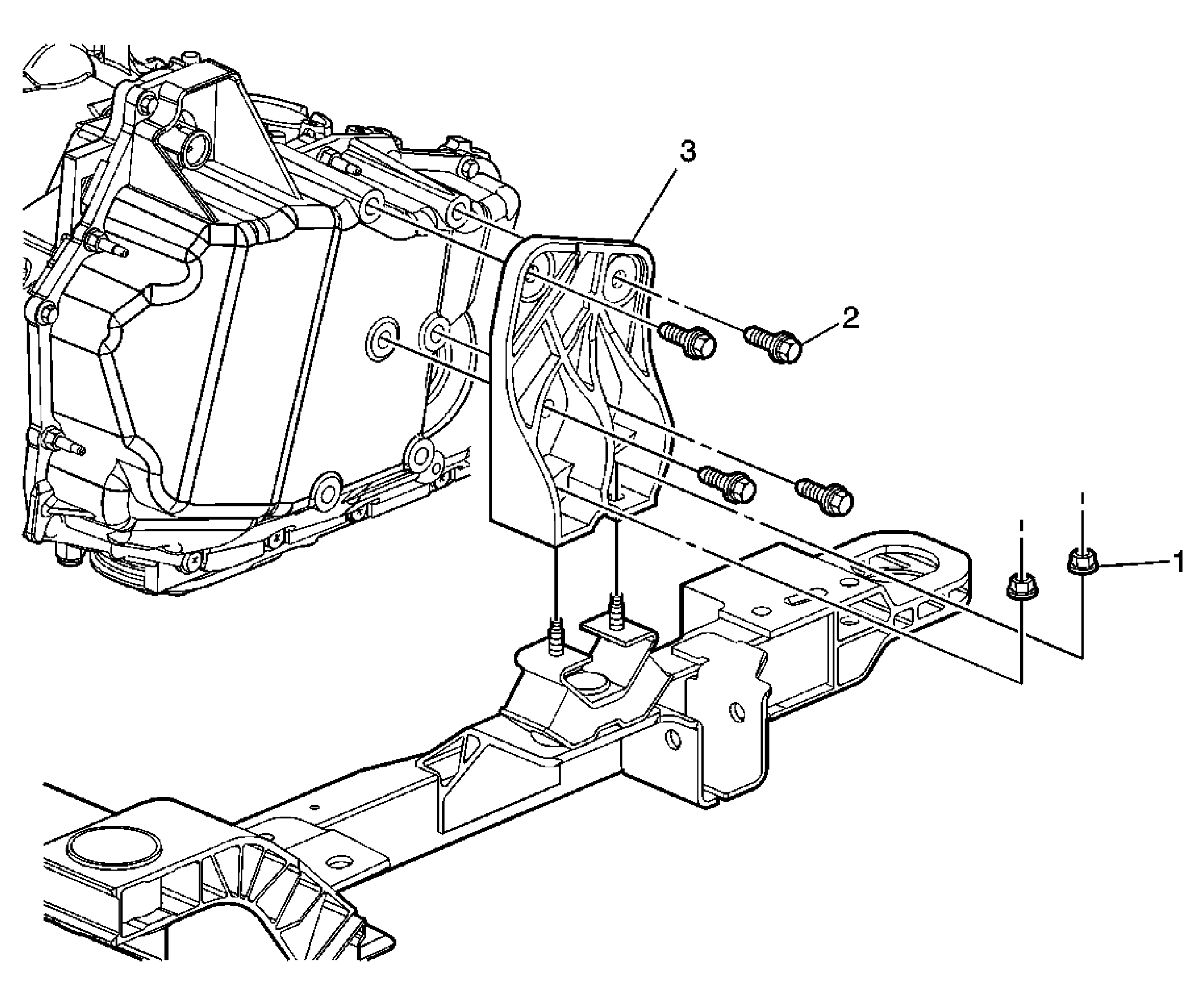

Fig 1: Replacing Transmission Mount Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the left front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the left engine splash shield. Refer to Engine Splash Shield Replacement (Left) or Engine Splash Shield Replacement (Right) . Support the transaxle.
1	Transaxle Bracket to Transaxle Mount Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 47 N.m (35 lb ft)
2	Transaxle Bracket to the Transaxle Bolt (Qty: 4) Tighten: 95 N.m (70 lb ft)
3	Transaxle Bracket
