Engine Splash Shield Replacement (Left)

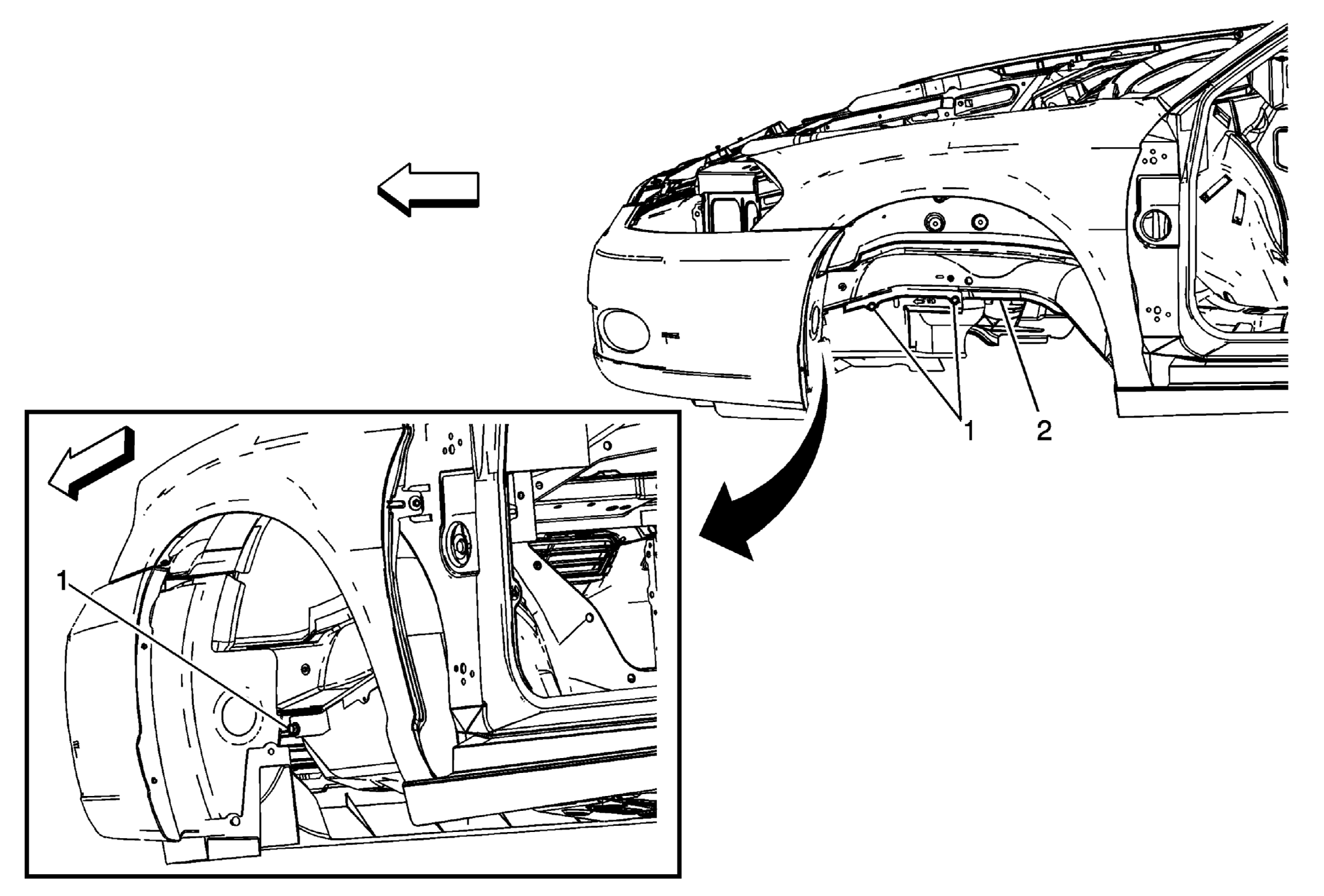

Fig 1: Splash Shield Replacement - Engine (Left)
GM1761135Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the left tire/wheel assembly. Refer to Tire and Wheel Removal and Installation .
1 Engine Splash Shield (Left) Plastic Retainer (Qty: 3)
2 Engine Splash Shield (Left)
