Transmission Brace Replacement (RPO LS4)

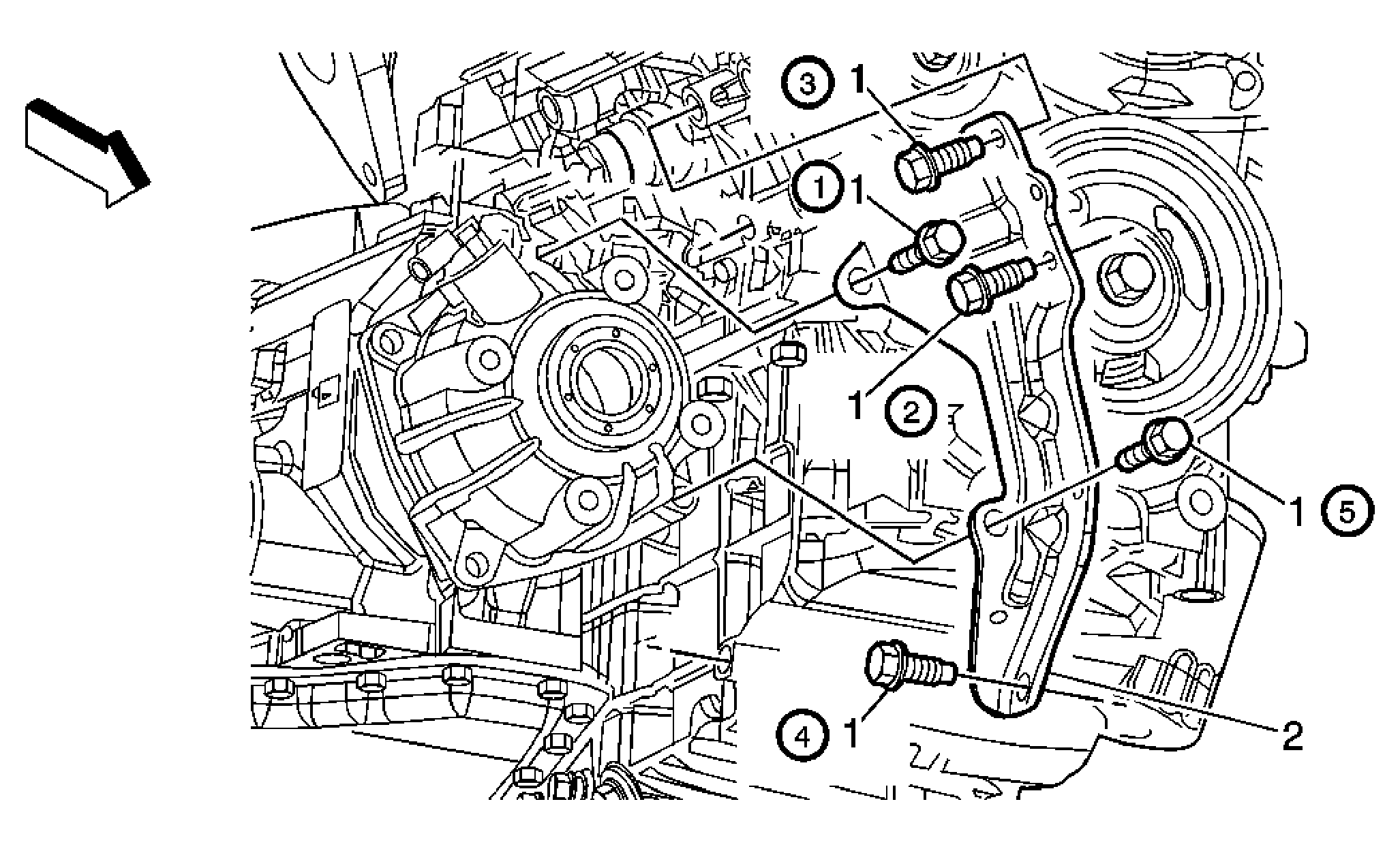

Fig 1: Automatic Transmission Brace (RPO LS4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the right front tire and wheel. Refer to Tire and Wheel Removal and Installation . Remove the left engine splash shield. Refer to Engine Splash Shield Replacement (Left) or Engine Splash Shield Replacement (Right) .
1	Transaxle Brace Bolt (Qty: 5) CAUTION: Refer to Fastener Caution . Tip: Tighten bolts in specified sequence. Tighten: 50 N.m (37 lb ft)
2	Transaxle Brace

Callout

Component Name

Preliminary Procedures

Transaxle Brace Bolt (Qty: 5)

CAUTION: Refer to Fastener Caution .

Tip: Tighten bolts in specified sequence.

Tighten: 50 N.m (37 lb ft)

Transaxle Brace
