Instrument Panel Inflatable Restraint Module Replacement (Impala)

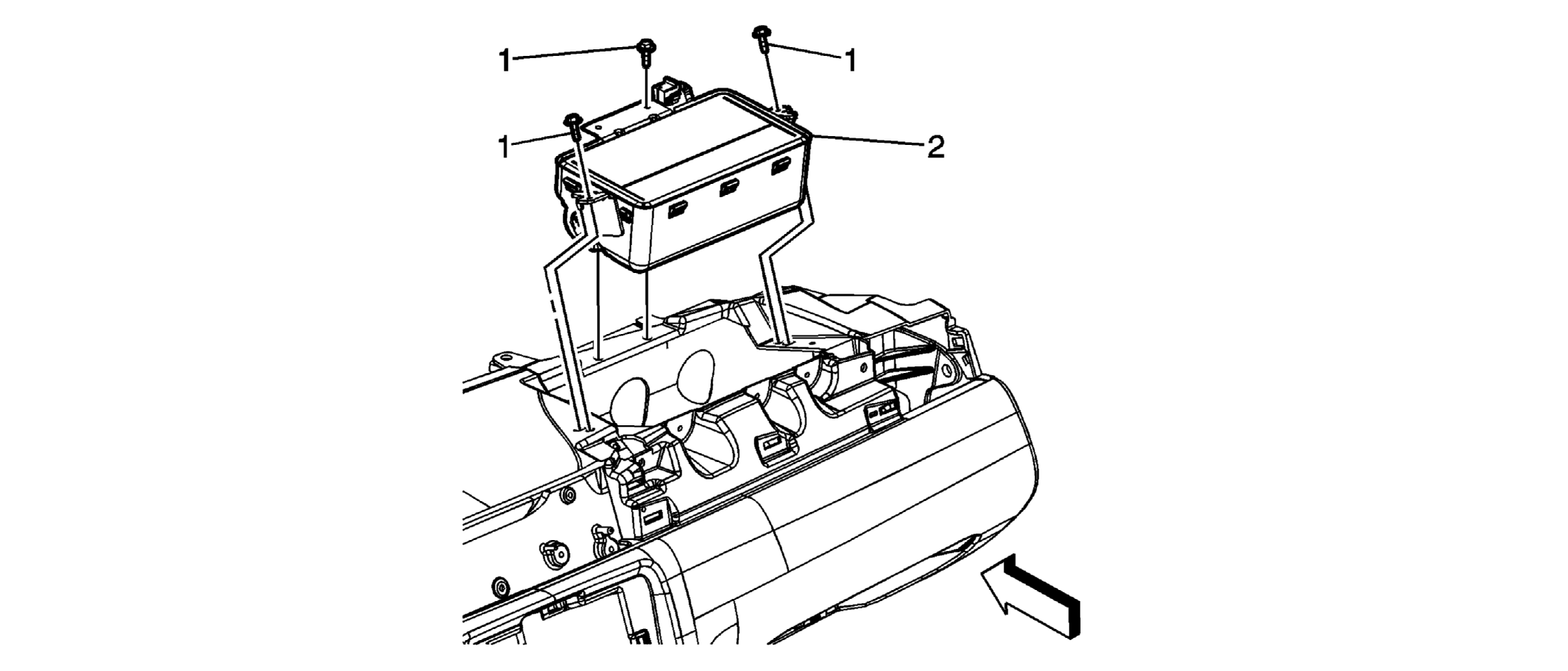

Fig 1: Replacing Inflatable Restraint Instrument Panel Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: Refer to SIR Inflator Module Handling and Storage Warning . Preliminary Procedures Disable the SIR. Refer to SIR Disabling and Enabling . Remove the instrument panel (I/P) upper trim panel. Refer to Instrument Panel Upper Trim Pad Replacement .
1	Inflatable Restraint I/P Module Bolts (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Inflatable Restraint I/P Module Assembly

Callout

Component Name

WARNING: Refer to SIR Warning .

Preliminary Procedures

Disable the SIR. Refer to SIR Disabling and Enabling .
Remove the instrument panel (I/P) upper trim panel. Refer to Instrument Panel Upper Trim Pad Replacement .

Inflatable Restraint I/P Module Bolts (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Inflatable Restraint I/P Module Assembly
