Instrument Panel Upper Trim Pad Replacement

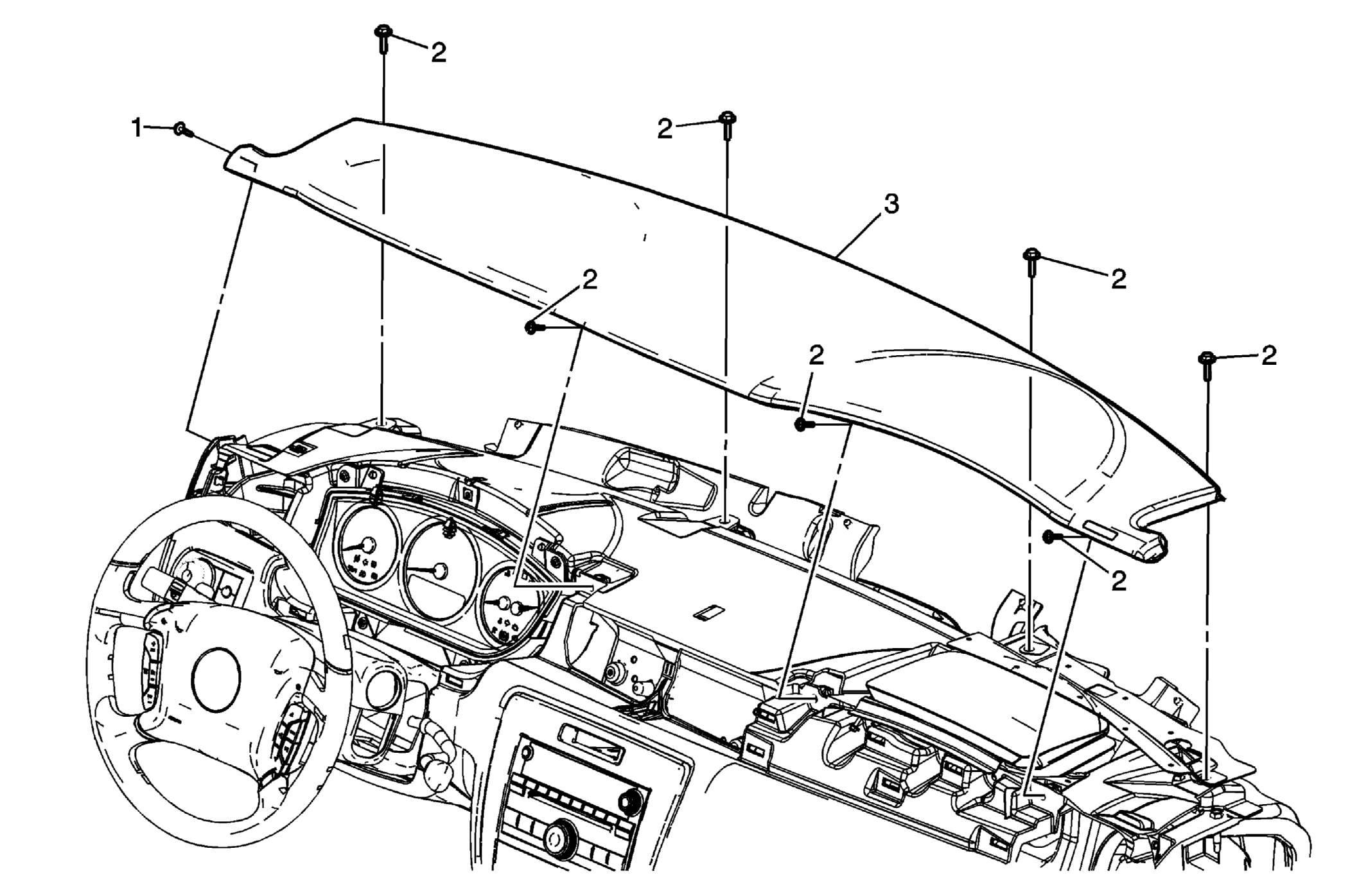

Fig 1: Replacing Instrument Panel (I/P) Upper Trim Pad

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel (I/P) upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement . Remove the I/P trim plate. Refer to Instrument Panel Trim Plate Replacement .
1	Instrument Panel Upper Trim Pad Screw CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Instrument Panel Upper Trim Pad Bolt (Qty: 7) Tighten: 10 N.m (88 lb in)
3	Instrument Panel Upper Trim Pad Assembly Procedure: Disconnect the electrical connector.
