Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Clutch Master Cylinder Rod & Retainer
    GM1617694Courtesy of GENERAL MOTORS CORP.
    WARNING: Refer to Battery Disconnect Warning .
  1. Disconnect the negative battery cable.
  2. Remove the left instrument panel (I/P) lower insulator panel. Refer to Instrument Panel Insulator Panel Replacement .
  3. Remove the clutch master cylinder rod retainer (1).
  4. Remove the clutch master cylinder rod (2) from the clutch pedal.
  5. Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement .

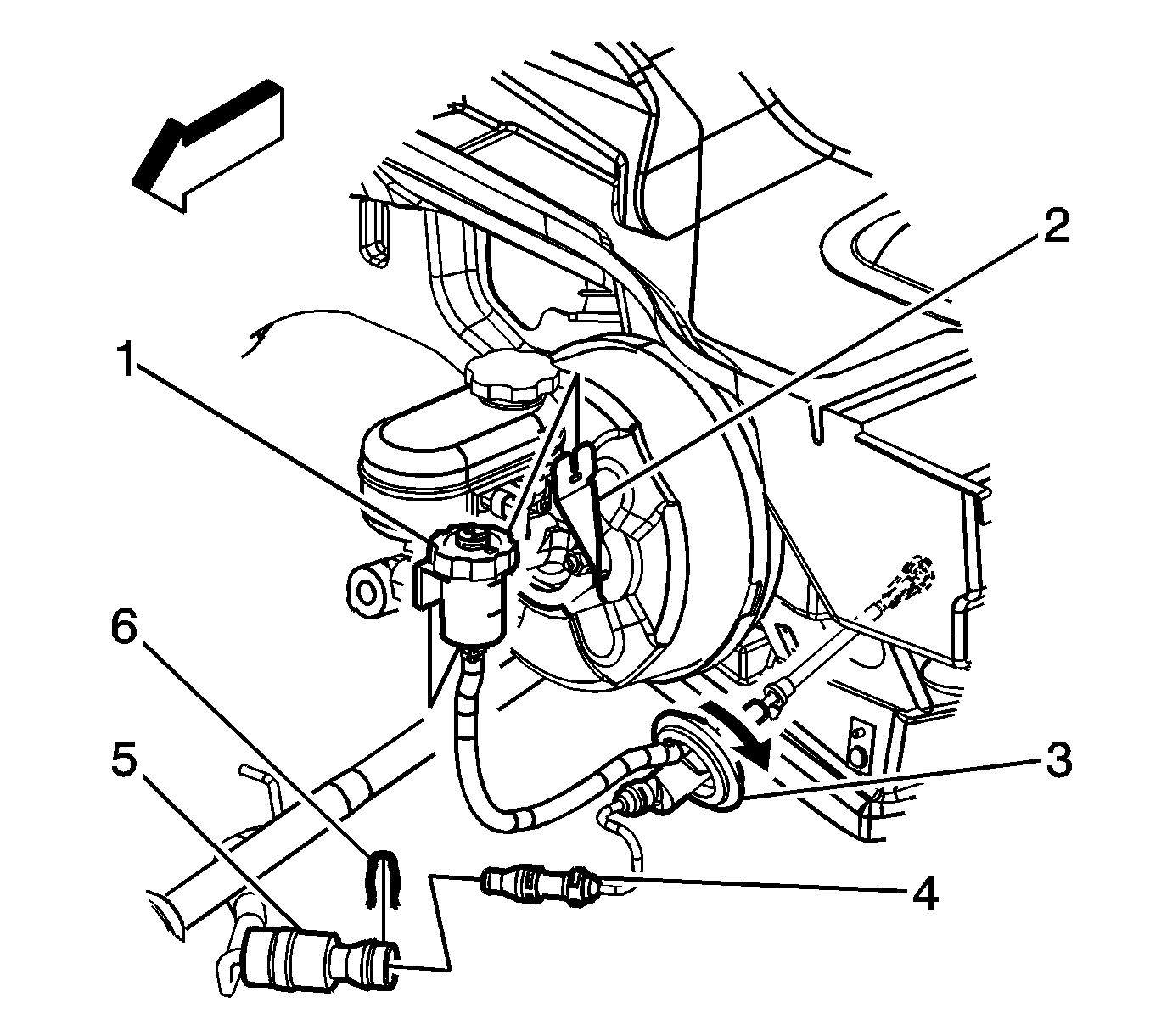

    6. Fig 2: View Of Clutch Master Cylinder, Reservoir, Bracket, Clutch Hose & Retaining Clip
    GM1617698Courtesy of GENERAL MOTORS CORP.
  6. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
  7. Remove the clutch actuator cylinder hose from the hose retaining clip, under the brake master cylinder.
  8. Remove the clutch hose connection retaining clip (6).
  9. Separate the clutch hose (5) from the clutch master cylinder connection (4).
  10. Protect both hose coupling ends from dirt and damage.
  11. Lower the vehicle. Leave the vehicle on the hoist.
  12. Remove the clutch master cylinder reservoir (1) from the reservoir bracket (2).
  13. Rotate the clutch master cylinder 45 degrees.
  14. Release the clutch master cylinder (3) from the dash panel.
  15. Remove the clutch master cylinder (3) and reservoir (1) from the vehicle.
