Removal Procedure

WARNING: This page is about a different variant/trim than selected.

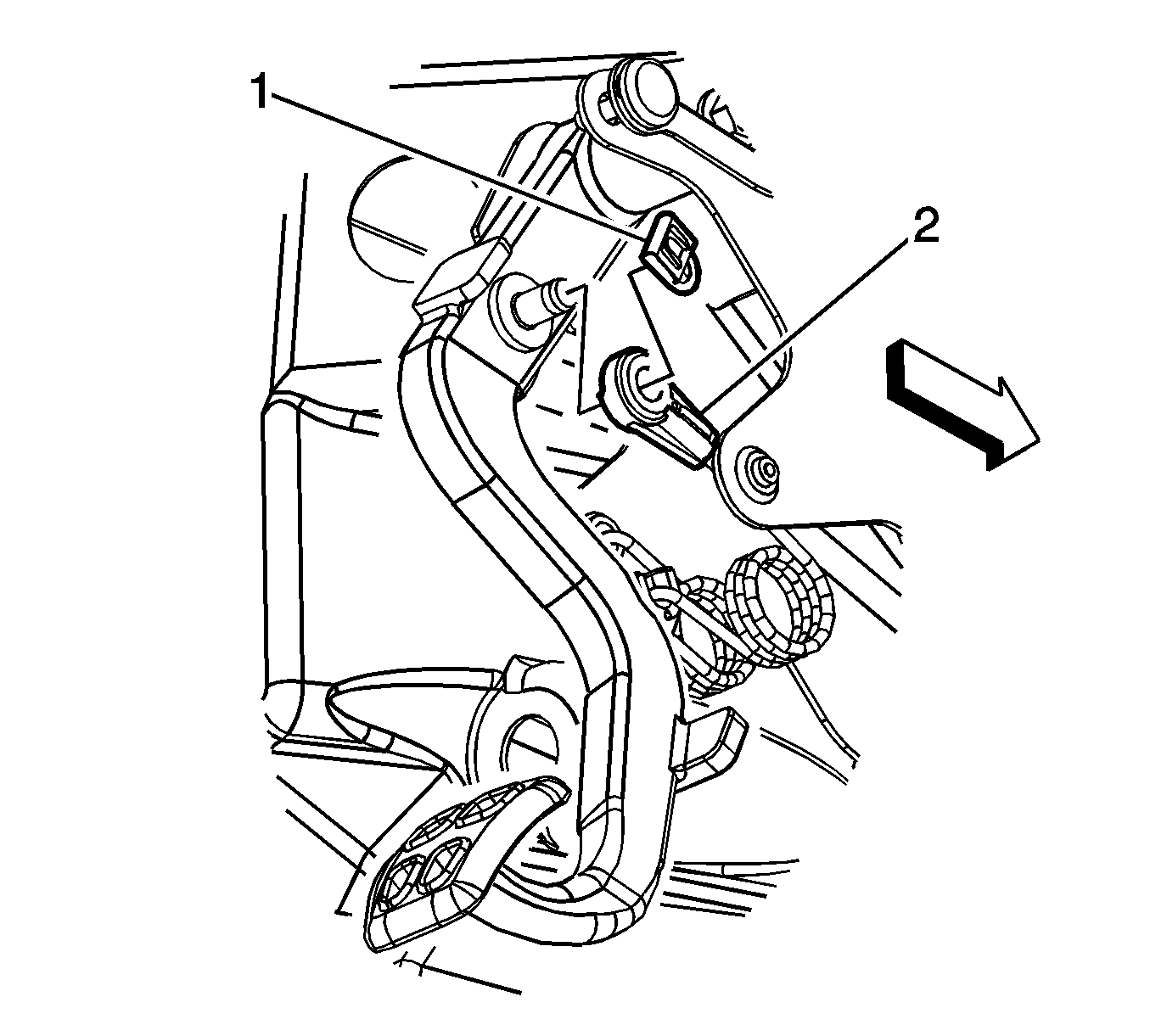

    Fig 1: Identifying Clutch Master Cylinder Rod & Retainer
    GM1617694Courtesy of GENERAL MOTORS CORP.
    WARNING: Refer to Battery Disconnect Warning .
  1. Disconnect the negative battery cable.
  2. Remove the left instrument panel (I/P) lower insulator panel. Refer to Instrument Panel Insulator Panel Replacement .
  3. Remove the clutch master cylinder rod retainer (1).
  4. Remove the clutch master cylinder rod (2) from the clutch pedal.
  5. Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement .
  6. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
    7. Fig 2: View Of Clutch Hose, Retaining Clip & Master Cylinder Connection
    GM1710246Courtesy of GENERAL MOTORS CORP.
  7. Remove the clutch hose connection retaining clip (1).
  8. Separate the clutch hose (3) from the clutch master cylinder connection (2).
  9. Protect both hose coupling ends from dirt and damage.
  10. Remove the driveline support assembly and transaxle from the vehicle. Refer to Driveline Support Assembly Replacement .

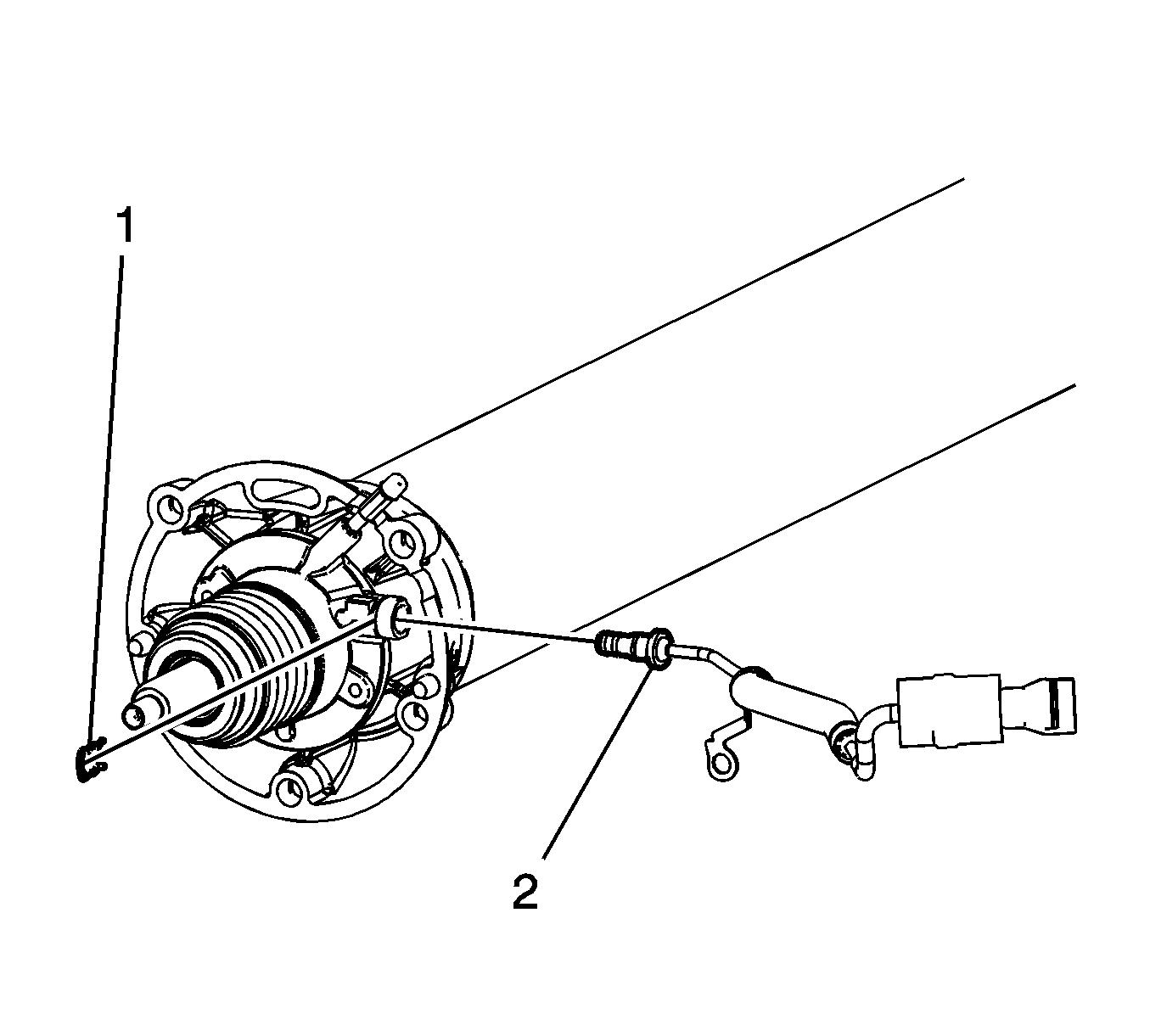

    11. Fig 3: View Of Actuator Cylinder, Clutch Hose & Retaining Clip
    GM1710249Courtesy of GENERAL MOTORS CORP.
  11. Remove the clutch hose connection retaining clip (1).
  12. Separate the clutch hose (2) from the clutch actuator cylinder.
  13. Protect both the hose and actuator cylinder from dirt and damage.

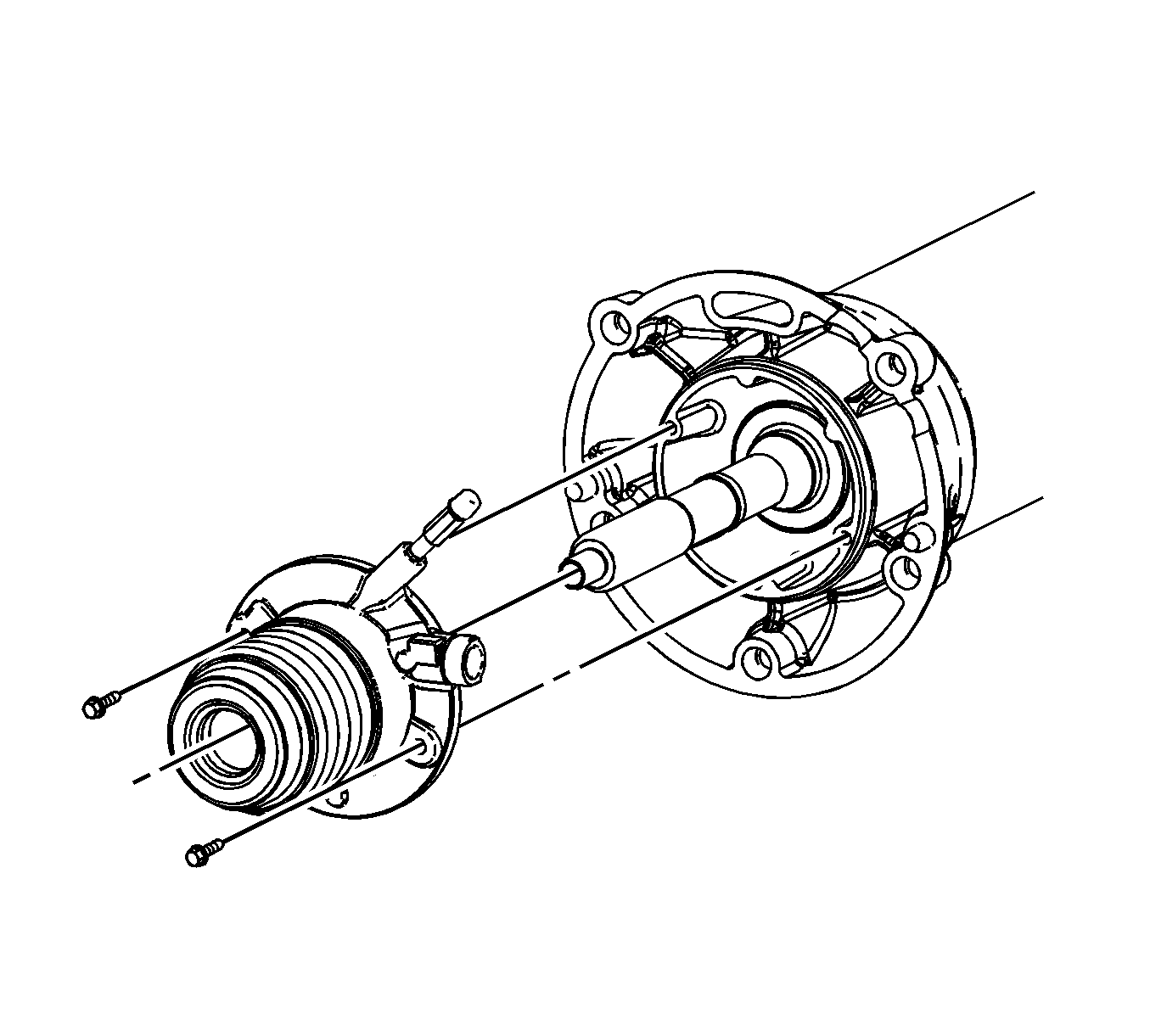

    14. Fig 4: View Of Driveline Support Assembly, Clutch Actuator Cylinder & Mounting Bolts
    GM1710254Courtesy of GENERAL MOTORS CORP.
  14. Remove the clutch actuator cylinder mounting bolts.
  15. Remove the clutch actuator cylinder from the driveline support assembly.
