Transmission Case

WARNING: This page is about a different variant/trim than selected.

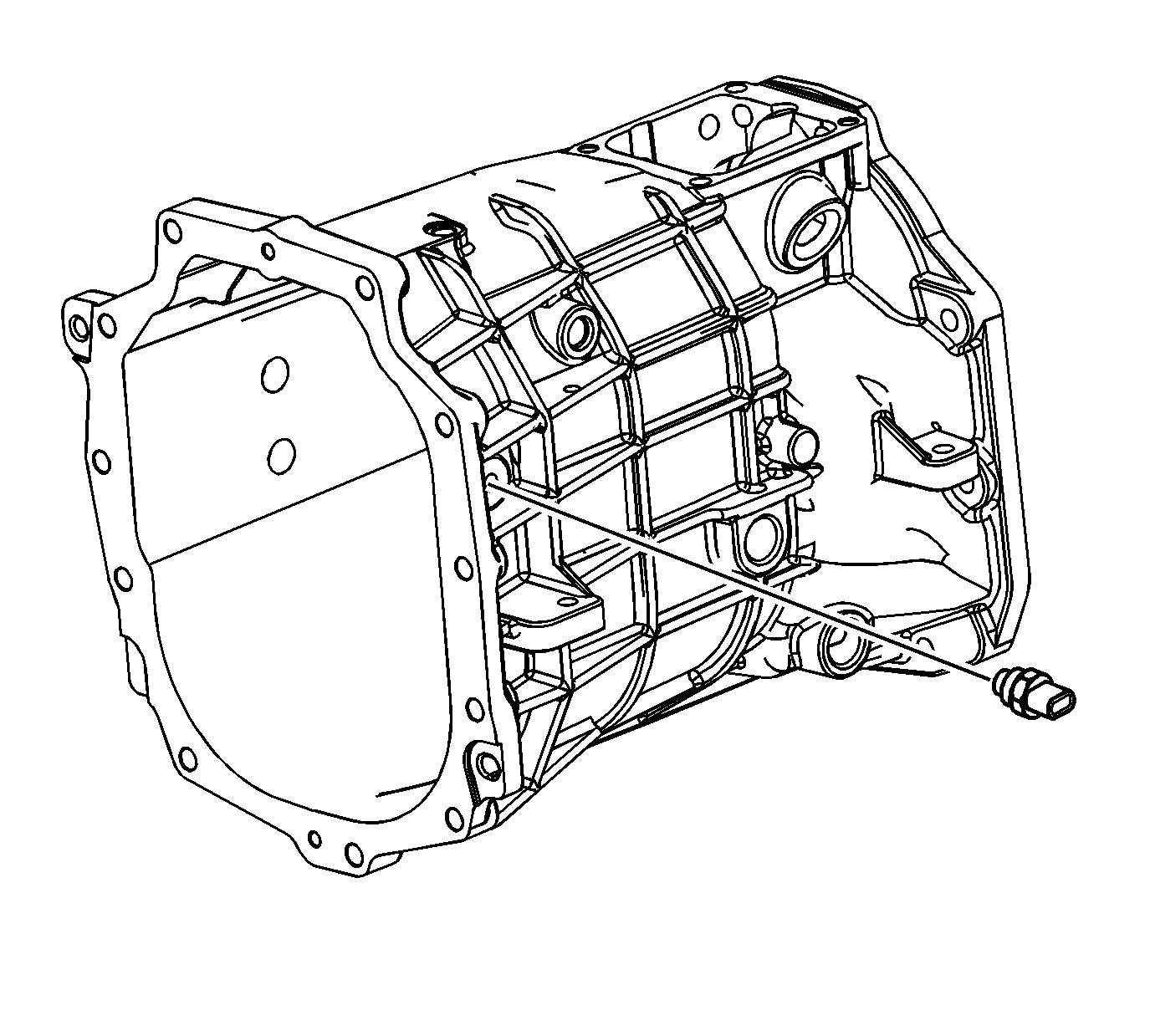

    Fig 1: View Of Transmission Case Cooler Line Return Fitting
    GM1938406Courtesy of GENERAL MOTORS CORP.
  1. Remove the transmission case cooler line return fitting.

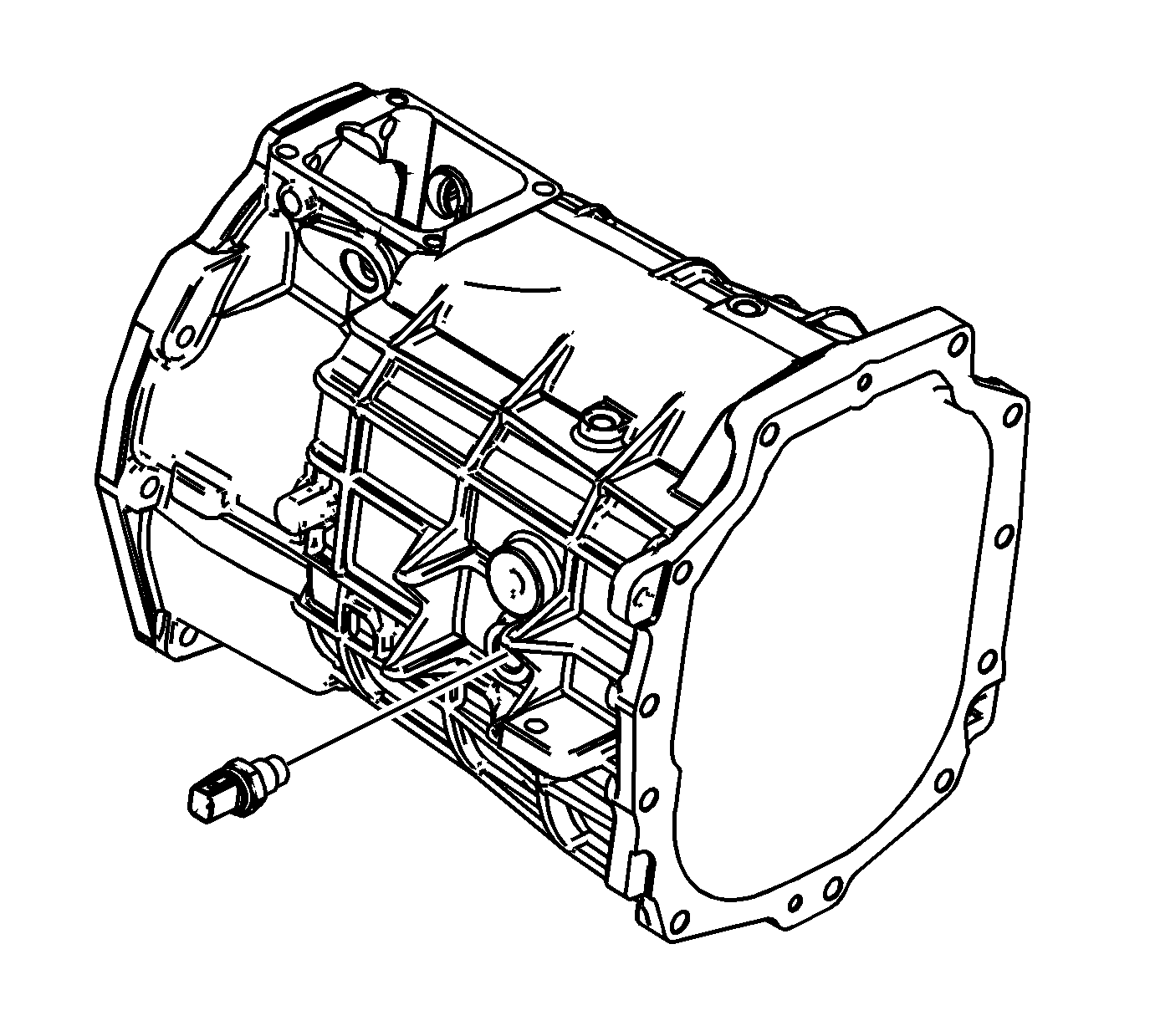

    2. Fig 2: View of Reverse Lamp Switch
    GM1938407Courtesy of GENERAL MOTORS CORP.
  2. Remove the reverse lamp switch.

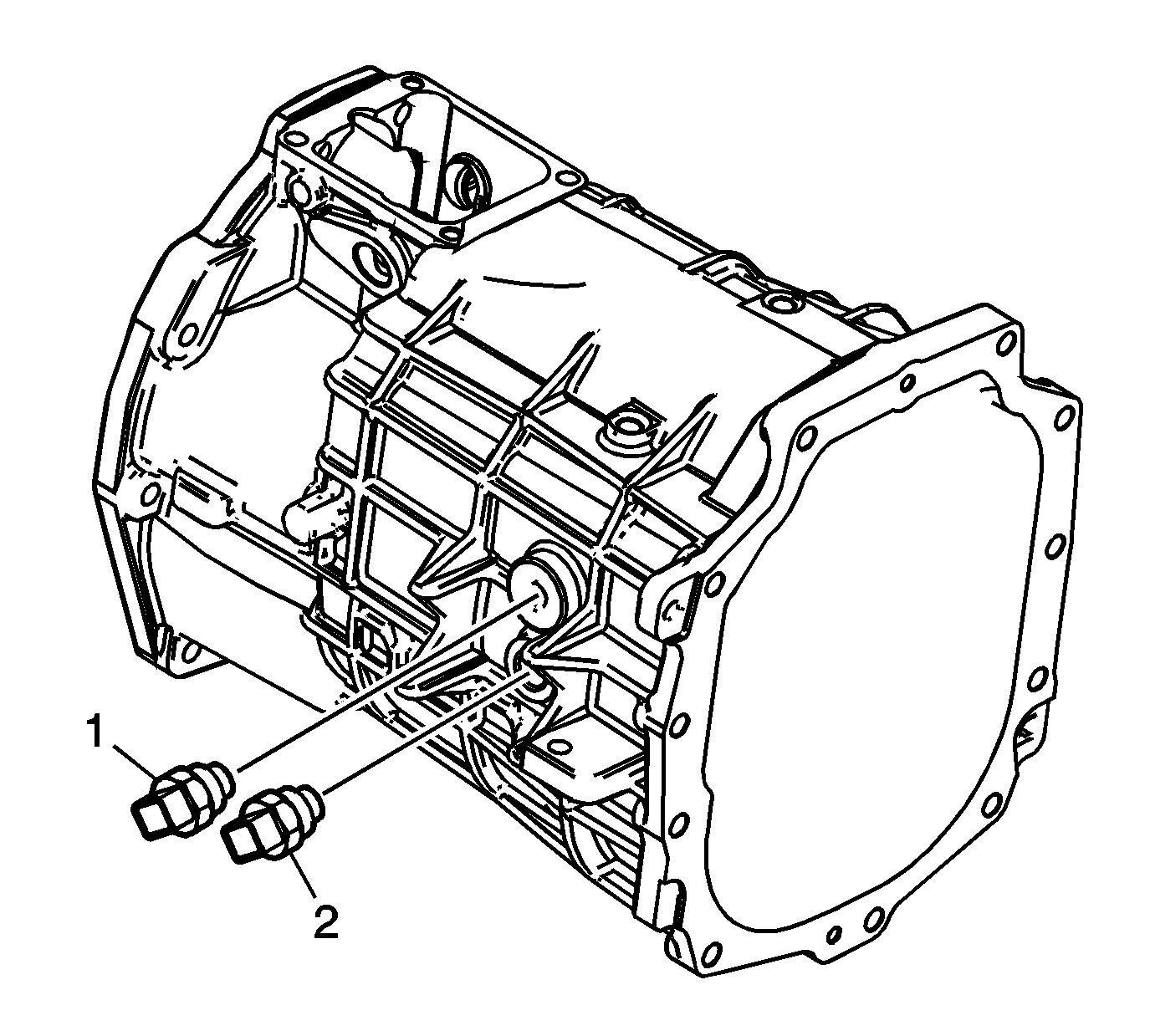

    3. Fig 3: View Of E-Z Key Switch
    GM1938408Courtesy of GENERAL MOTORS CORP.
  3. Remove the E-Z key switch (1).

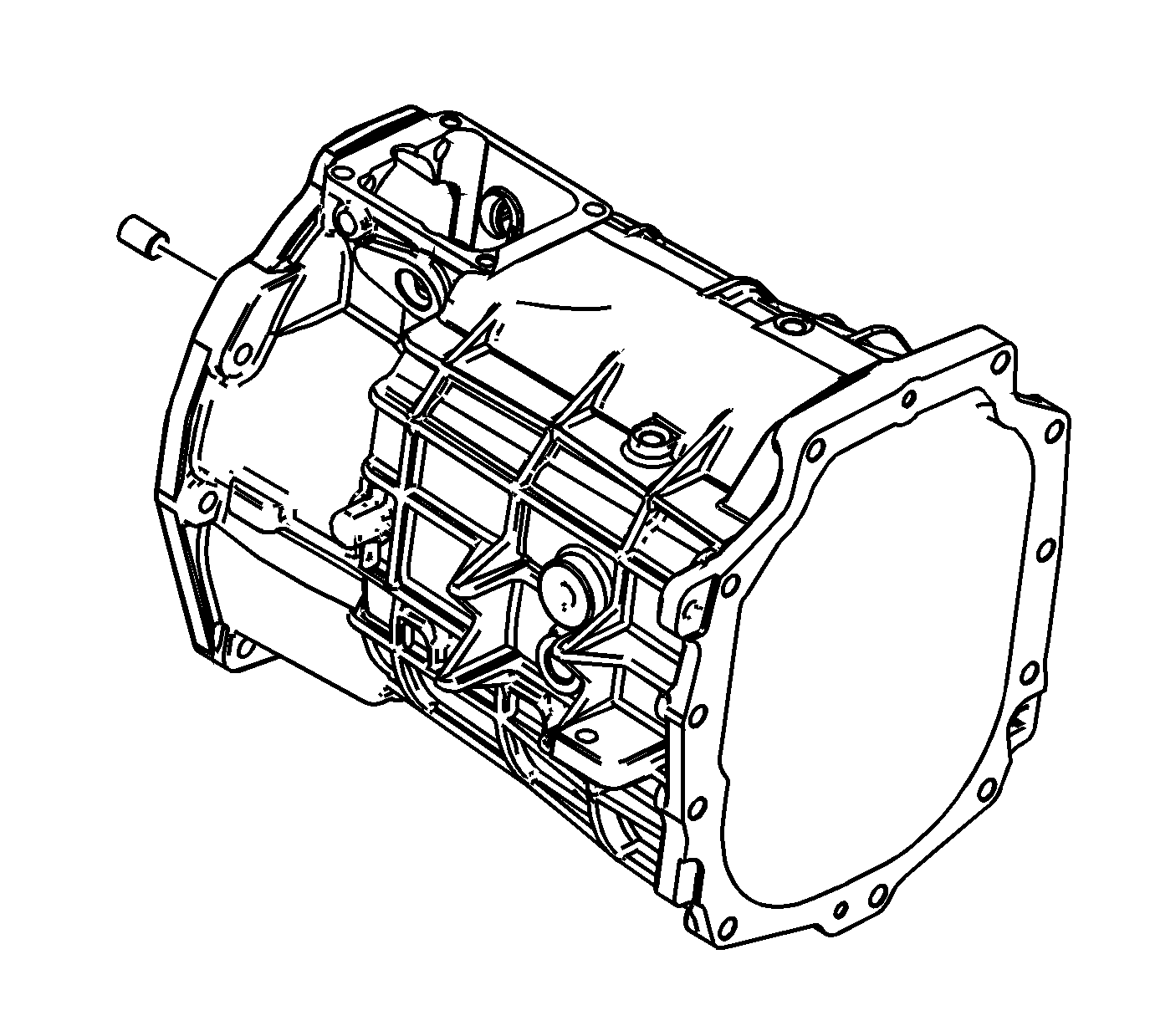

    4. Fig 4: View Of Dowel Pins
    GM1938409Courtesy of GENERAL MOTORS CORP.
  4. Remove the dowel pins.

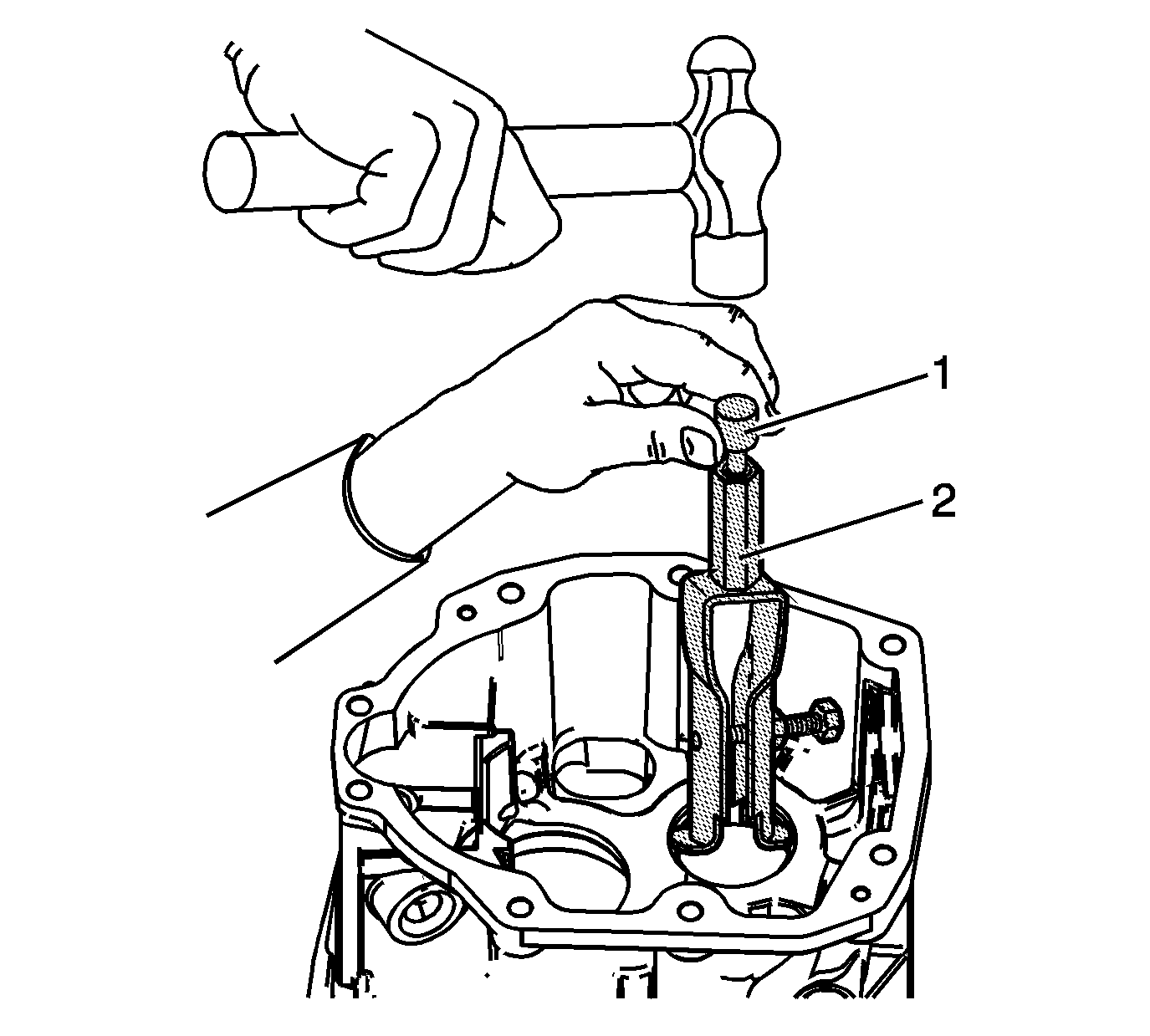

    5. Fig 5: View Of Countershaft Bearing Race, J 39442 & J 26941
    GM1938410Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not replace the bearing race unless inspection shows bearing race damage.
  5. Remove the countershaft bearing race, using J 39442  (1) and J 26941  (2). Tap out race with a hammer. See Special Tools .

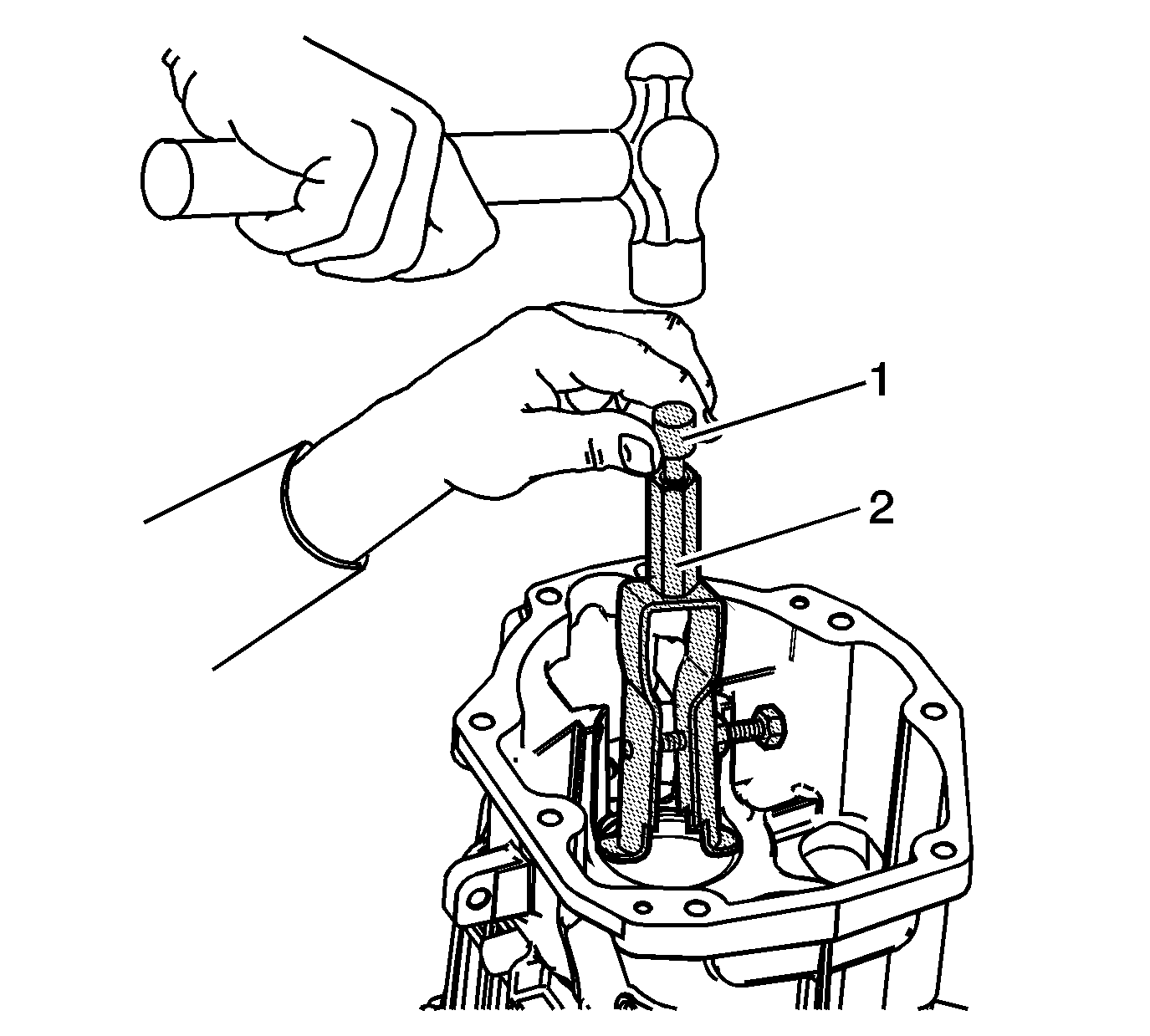

    6. Fig 6: View Mainshaft Bearing Race, J 39442 & J 26941
    GM1938411Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not replace the bearing race unless inspection shows bearing race damage.
  6. Remove the mainshaft bearing race, using J 39442  (1) and J 26941  (2). Tap out race with a hammer. See Special Tools .

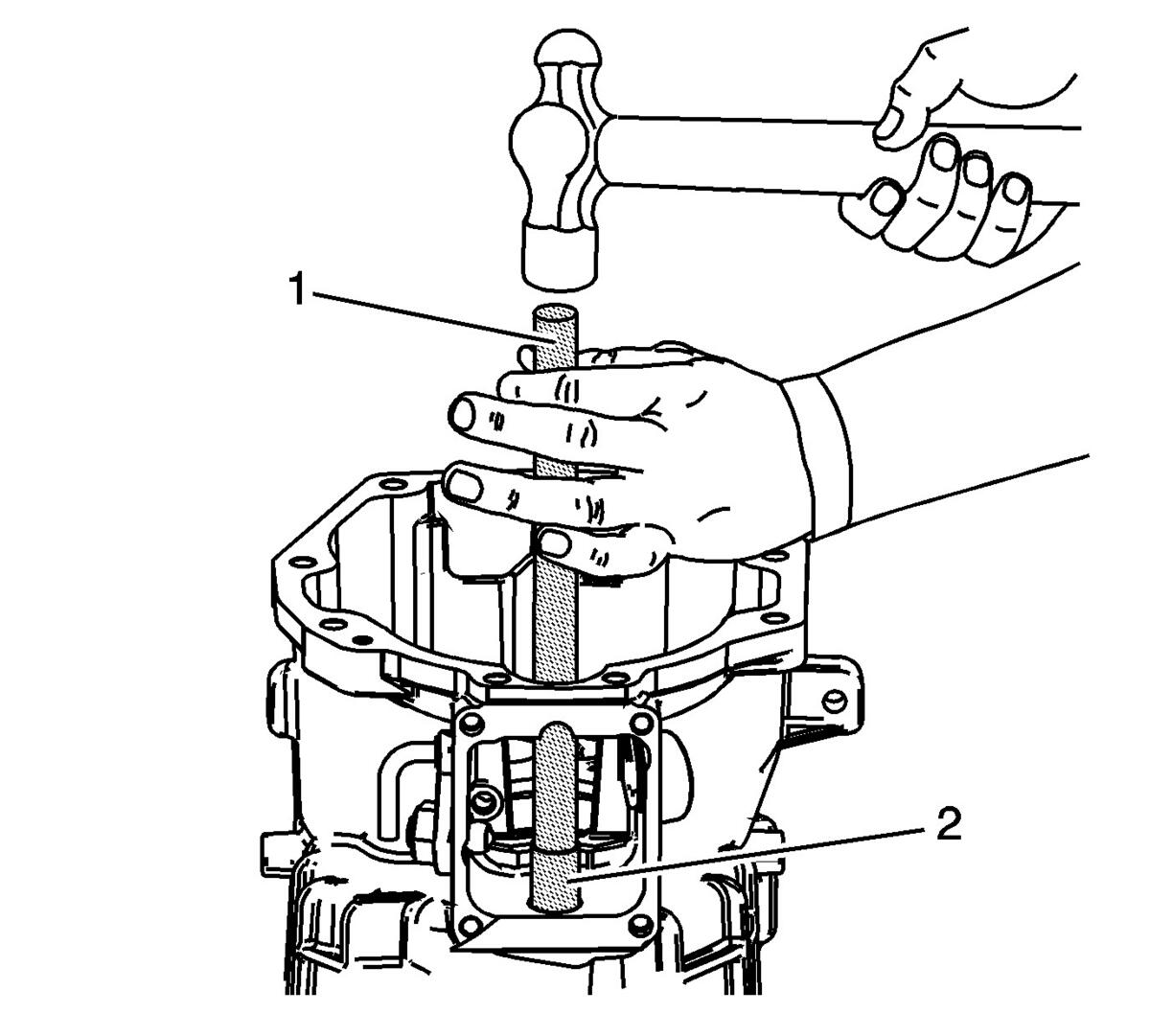

    7. Fig 7: View Of 1st/2nd and the 3rd/4th Shift Shaft Bushings, J 39439-3 & J 36190
    GM1938414Courtesy of GENERAL MOTORS CORP.
  7. Remove the 1st/2nd and the 3rd/4th shift shaft bushings, using the J 39439-3  (2) and the J 36190  (1). See Special Tools .
