Special Tools

WARNING: This page is about a different variant/trim than selected.

Illustration	Tool Number/Description

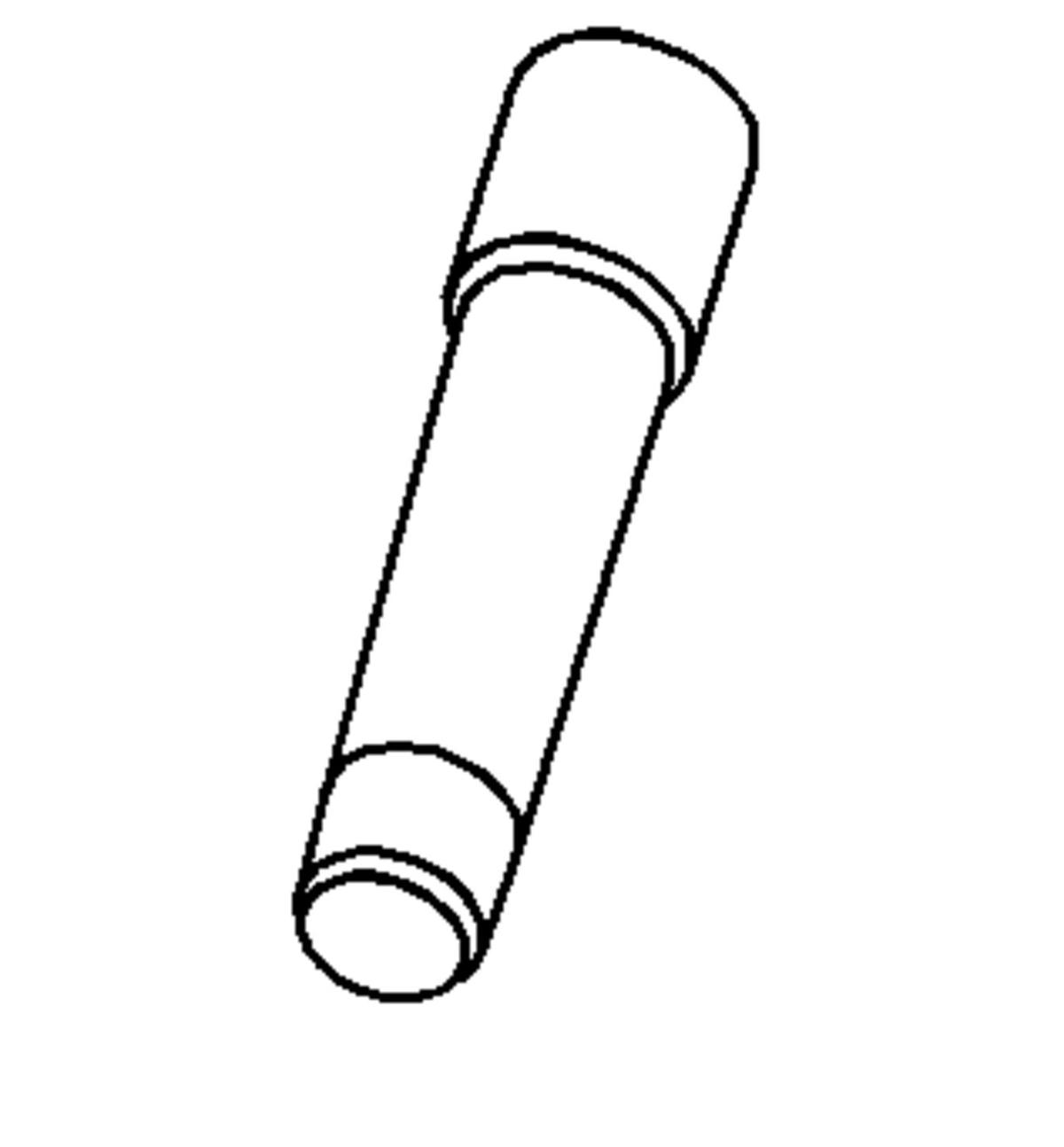

Courtesy of GENERAL MOTORS CORP.	DT-48802 Bearing Installer

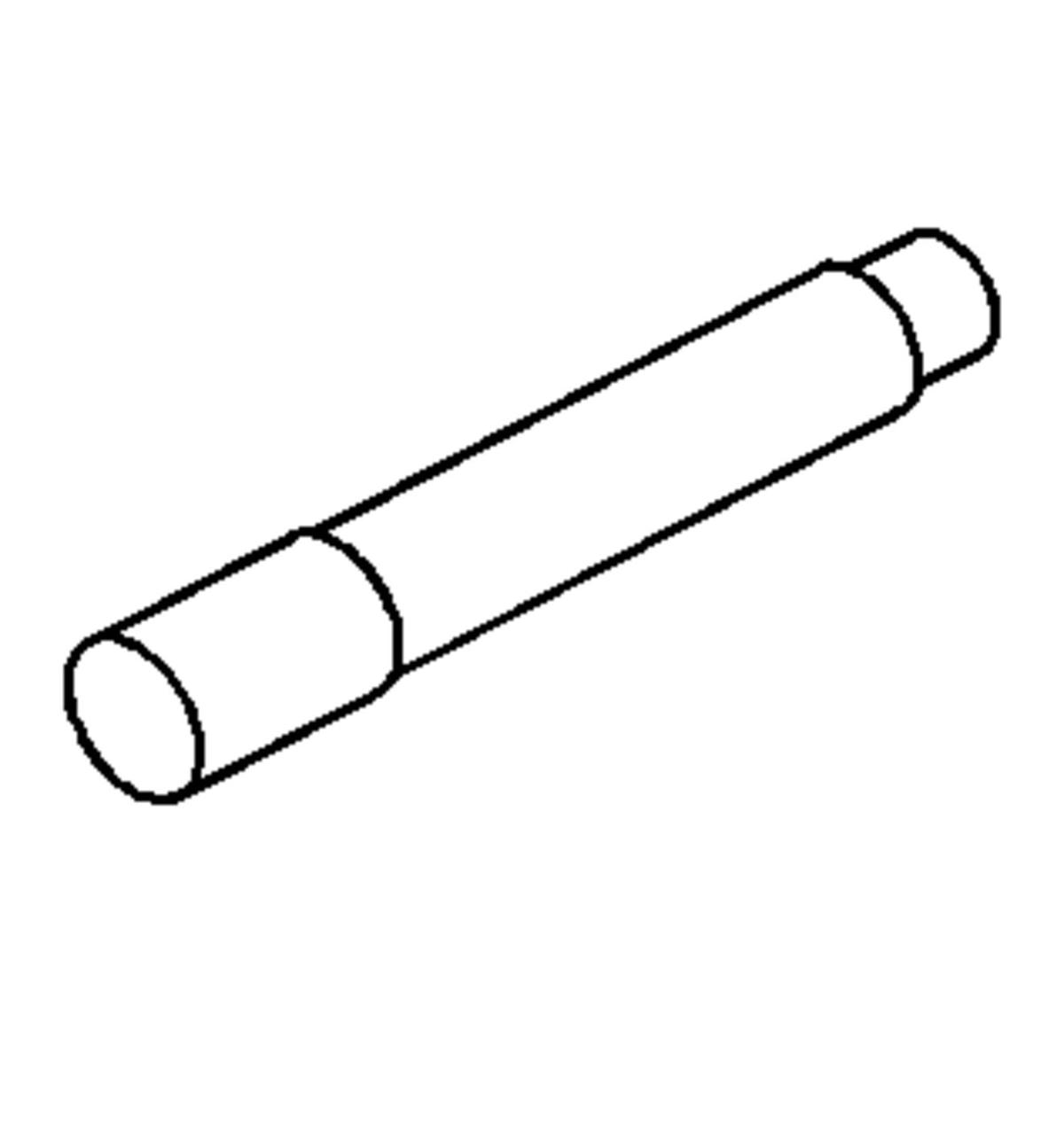

Courtesy of GENERAL MOTORS CORP.	DT-48827 Skip Shift Socket
Courtesy of GENERAL MOTORS CORP.	DT-49139 Hub Remover
Courtesy of GENERAL MOTORS CORP.	J 3289-20 Holding Fixture
Courtesy of GENERAL MOTORS CORP.	J 5590 Press Tube
Courtesy of GENERAL MOTORS CORP.	J 6125-1B Slide Hammer with Adapter
Courtesy of GENERAL MOTORS CORP.	J 8001 Dial Indicator Set
Courtesy of GENERAL MOTORS CORP.	J 8092 Universal Driver Handle
Courtesy of GENERAL MOTORS CORP.	J 8433 Universal Bridge Puller
Courtesy of GENERAL MOTORS CORP.	J 22912-B Rear Pinion and Axle Bearing Remover
Courtesy of GENERAL MOTORS CORP.	J 23907 Slide Hammer
Courtesy of GENERAL MOTORS CORP.	J 25031-A Three Jaw Puller
Courtesy of GENERAL MOTORS CORP.	J 25234 Press Tube
Courtesy of GENERAL MOTORS CORP.	J 26508-A Transmission Rear Seal Installer
Courtesy of GENERAL MOTORS CORP.	J 26941 Bearing Race Remover
Courtesy of GENERAL MOTORS CORP.	J 28537-17 Bearing Race Installer
Courtesy of GENERAL MOTORS CORP.	J 29369-2 Bushing and Bearing Remover - 2-3 in
Courtesy of GENERAL MOTORS CORP.	J 36017 Valve Seal Remover
Courtesy of GENERAL MOTORS CORP.	J 36183 Press Tube
Courtesy of GENERAL MOTORS CORP.	J 36184 Press Tube Adapter
Courtesy of GENERAL MOTORS CORP.	J 36190 Universal Driver Handle
Courtesy of GENERAL MOTORS CORP.	J 36513 Split Plate
Courtesy of GENERAL MOTORS CORP.	J 36850 Transjel® Lubricant
Courtesy of GENERAL MOTORS CORP.	J 39371 1st/2nd Synchronizer Installer
Courtesy of GENERAL MOTORS CORP.	J 39431-1, -2, -4 Gear Remover and Bolts
Courtesy of GENERAL MOTORS CORP.	J 39431-3 Fifth Gear Puller Adapter Bolts
Courtesy of GENERAL MOTORS CORP.	J 39433 Input Shaft Seal Installer
Courtesy of GENERAL MOTORS CORP.	J 39435 Bearing Race Installer
Courtesy of GENERAL MOTORS CORP.	J 39437 Bushing Installer
Courtesy of GENERAL MOTORS CORP.	J 39439-1 Shift Rail Bushing Remover/Installer
Courtesy of GENERAL MOTORS CORP.	J 39439-2 Bushing Remover
Courtesy of GENERAL MOTORS CORP.	J 39439-3 Bushing Installer
Courtesy of GENERAL MOTORS CORP.	J 39439-4 Bushing Installer
Courtesy of GENERAL MOTORS CORP.	J 39441 5th/6th Driven Gear Installer
Courtesy of GENERAL MOTORS CORP.	J 39441-10 5th Gear Installer Adapter
Courtesy of GENERAL MOTORS CORP.	J 39441-20 Fifth Gear Installer Adapter
Courtesy of GENERAL MOTORS CORP.	J 39442 Press Adapter
Courtesy of GENERAL MOTORS CORP.	J 39443 Split Plate
Courtesy of GENERAL MOTORS CORP.	J 39444-1 Countershaft End Play Rod
Courtesy of GENERAL MOTORS CORP.	J 39473 Mainshaft Bearing Installer/Adapter
Courtesy of GENERAL MOTORS CORP.	J 39511 Split Plate
Courtesy of GENERAL MOTORS CORP.	J 39546 Bearing Race Installer
Courtesy of GENERAL MOTORS CORP.	J 39547 Press Adapter
Courtesy of GENERAL MOTORS CORP.	J 39594 Bearing Race Remover
Courtesy of GENERAL MOTORS CORP.	J 41623-B Cooler Quick Connect Tool
Courtesy of GENERAL MOTORS CORP.	J 42055 Drivetrain Support Fixture
Courtesy of GENERAL MOTORS CORP.	J 42464 Shift Shaft Seal Installer
Courtesy of GENERAL MOTORS CORP.	J 42496 Inner Shift Rail Seal Installer
Courtesy of GENERAL MOTORS CORP.	J 44395-A Transmission Holding Fixture
Courtesy of GENERAL MOTORS CORP.	J 45124 Removal Bridge
Courtesy of GENERAL MOTORS CORP.	J 45124-9 Puller Legs
