Adapter Plate

WARNING: This page is about a different variant/trim than selected.

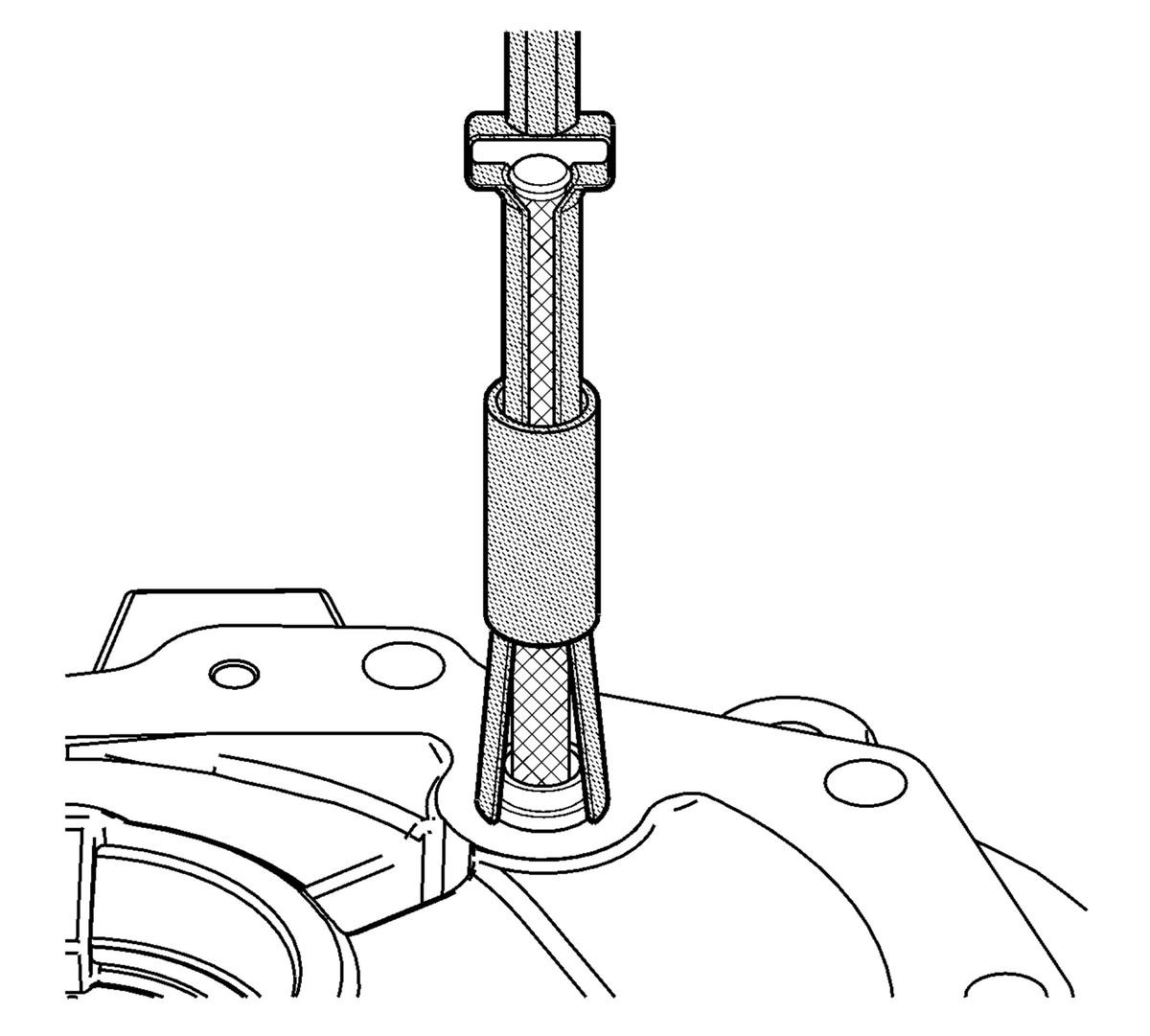

    Fig 1: View Of Special Tool On Oil Filter
    GM1938417Courtesy of GENERAL MOTORS CORP.
  1. Attach J 36017  over oil filter. See Special Tools . Ensure that the tool grasps the oil filter where it contacts the adapter plate.
  2. Slide the collar of J 36017  down to secure the oil filter. See Special Tools .

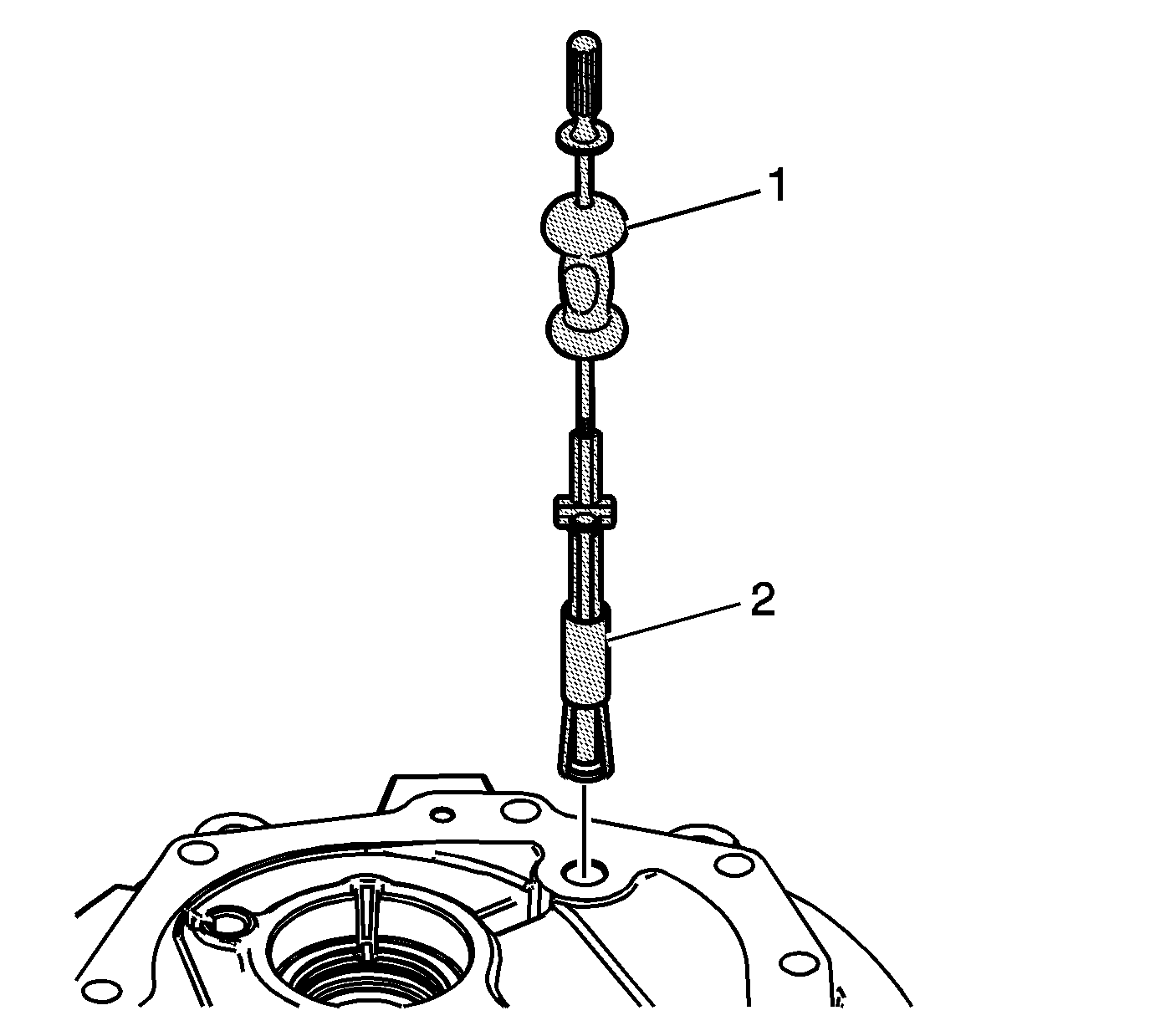

    3. Fig 2: View Of Special Tools J 23907, J 36017 & Oil Filter
    GM1938420Courtesy of GENERAL MOTORS CORP.
  3. Using J 23907  (1) and J 36017  (2), remove the oil filter. See Special Tools .
    4. Fig 3: View Of Countershaft Bearing Shim & Bearing Race
    GM1887596Courtesy of GENERAL MOTORS CORP.
  4. Remove the input shaft bearing race and the shim.
    5. Fig 4: View Of Countershaft Bearing Shim & Bearing Race
    GM1887598Courtesy of GENERAL MOTORS CORP.
  5. Remove the countershaft bearing race and the shim.

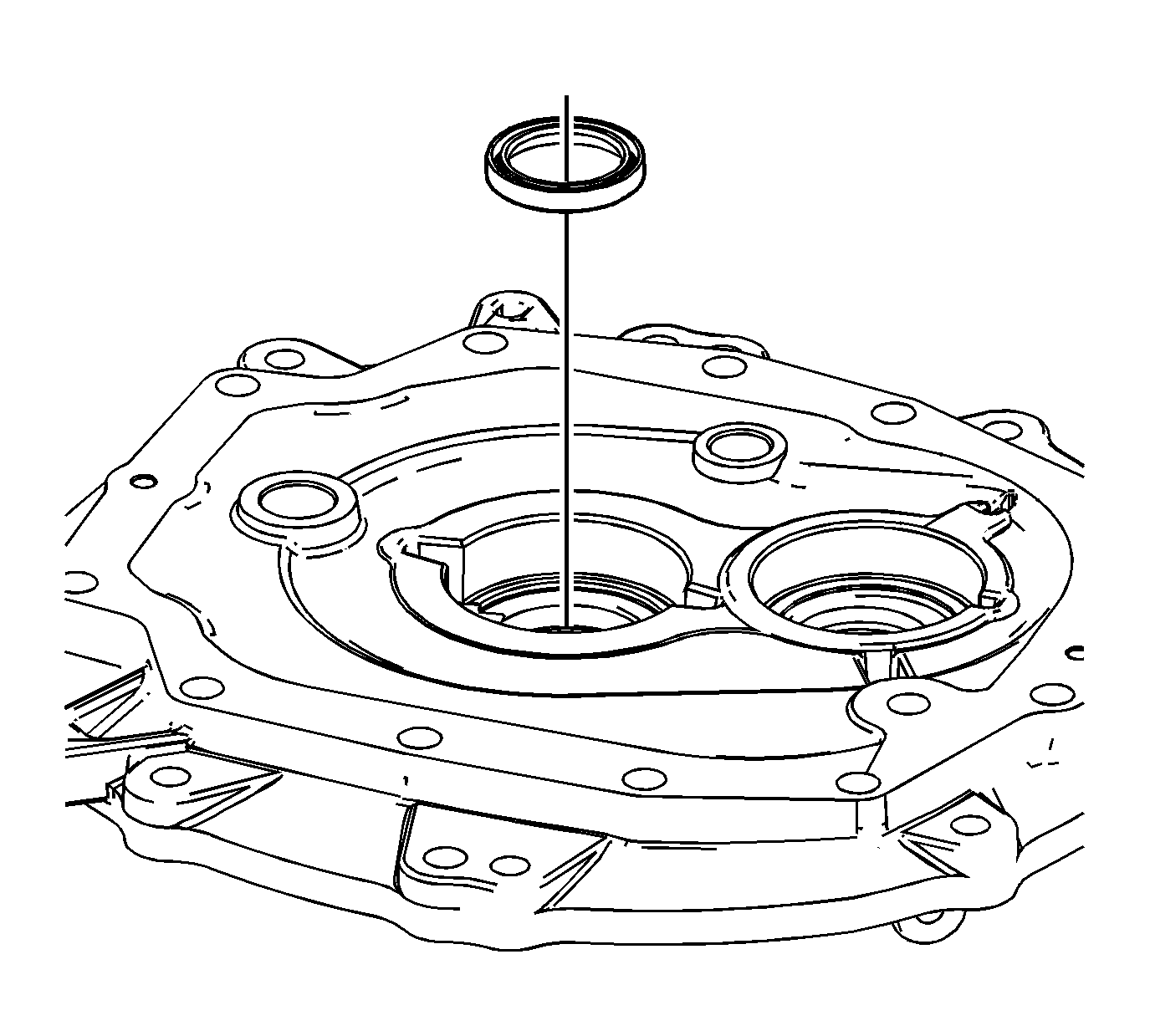

    6. Fig 5: View Of Input Shaft Seal
    GM1887600Courtesy of GENERAL MOTORS CORP.
  6. Remove the input shaft seal.

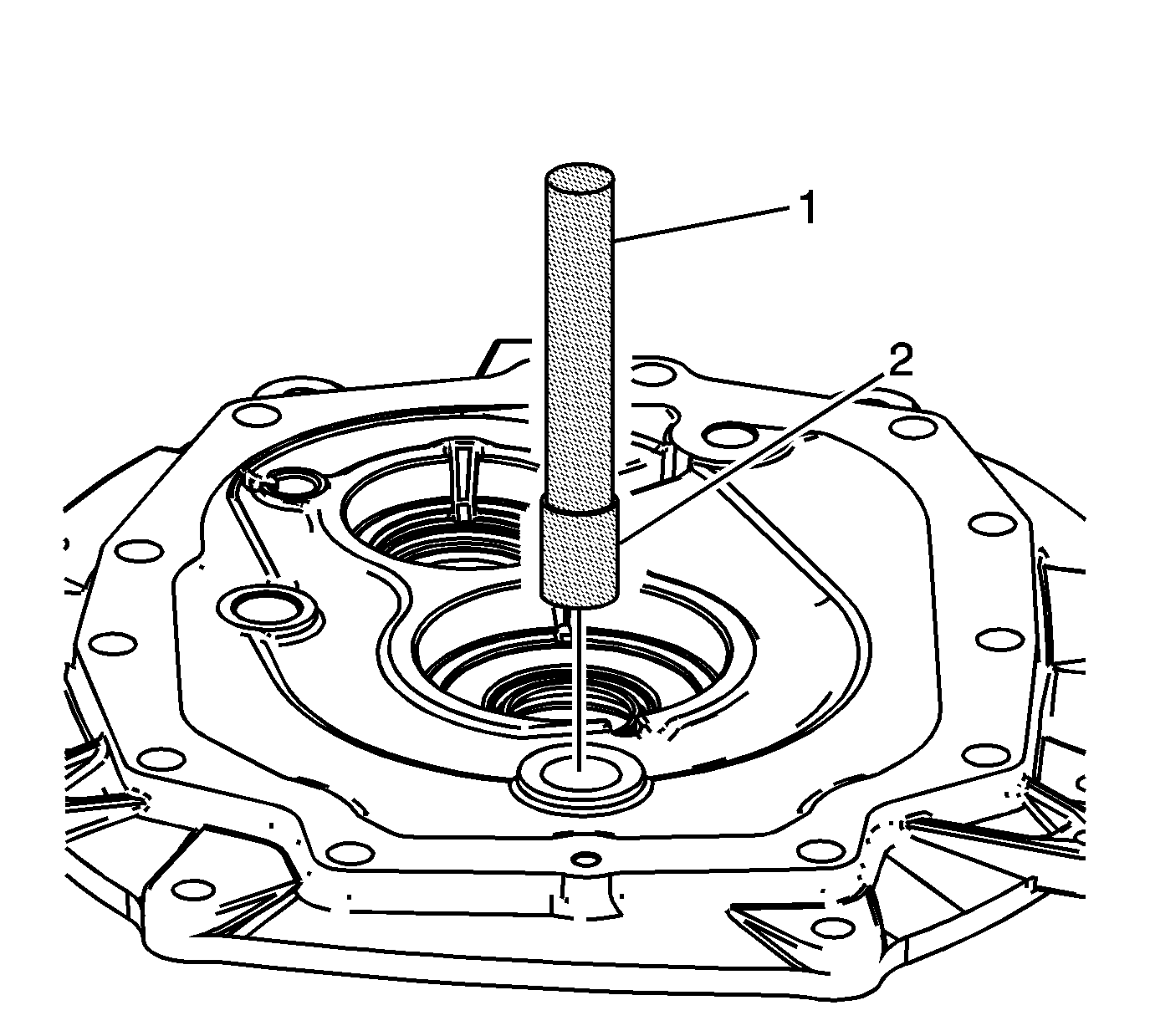

    7. Fig 6: Identifying 1st/2nd, 3rd/4th Shift Shaft Bushing, Special Tools J 39439-3 & J 36190
    GM1887601Courtesy of GENERAL MOTORS CORP.
  7. Remove the 1st/2nd and the 3rd/4th shift shaft bushing, using the J 39439-3  (2) with the J 36190  (1). See Special Tools .
    8. Fig 7: Identifying Dowel Pins
    GM1887604Courtesy of GENERAL MOTORS CORP.
  8. Remove the dowel pins.
    9. Fig 8: Identifying Oil Pump & Oil Pump Cover Assembly
    GM1938423Courtesy of GENERAL MOTORS CORP.
  9. Remove the retainer ring (1).
  10. Remove the oil pump cover assembly (2).
  11. Remove the oil pump (3).
    12. Fig 9: Identifying Plug & Spring
    GM1938426Courtesy of GENERAL MOTORS CORP.
  12. Remove the plug (1).
  13. Remove the spring (2).
  14. Remove the check ball (3).

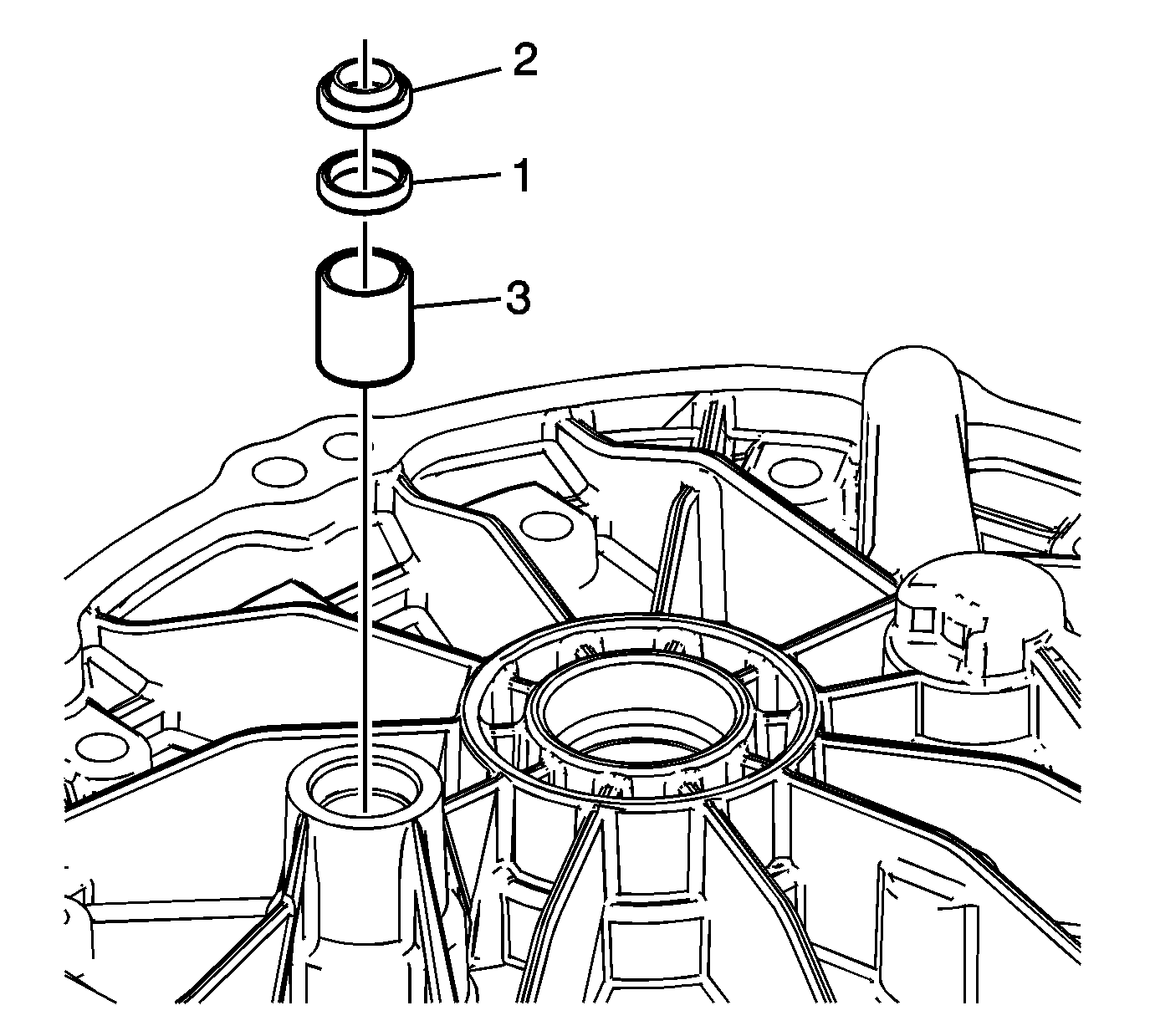

    15. Fig 10: Identifying 1st/2nd & 3rd/4th Shift Shaft Seals & Bushing
    GM1887603Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not replace the bushing unless inspection shows bushing damage.
  15. Remove the 1st/2nd and the 3rd/4th shift shaft seals (1) and (2), and the bushing (3).
    16. Fig 11: View Of Adapter Plate Pump Plug
    GM1998735Courtesy of GENERAL MOTORS CORP.
  16. Remove the pump outlet cooler fitting (1) and seal (2).
  17. Remove the adapter plate pump plug (3).
