5th/6th, Reverse Shift Rail Assembly

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Reverse Lever Roll Pin
    GM1938393Courtesy of GENERAL MOTORS CORP.
  1. Remove the reverse collar roll pin (1).
  2. Remove the reverse collar (2).
  3. Remove the reverse shift lever roll pin (3).
    4. Fig 2: View Of Reverse Shift Lever On The Shift Shaft
    GM1938394Courtesy of GENERAL MOTORS CORP.
  4. Remove the reverse shift lever (2) from the shift shaft (1).
    5. Fig 3: View Of 5th/6th Shift Lever & Shift Shaft
    GM1938395Courtesy of GENERAL MOTORS CORP.
  5. Remove the 5th/6th shift lever (2) from the shift shaft (1).
    6. Fig 4: View Of Retainer Ring & 5th/6th Shift Lever
    GM1938401Courtesy of GENERAL MOTORS CORP.
  6. Remove the snap ring (2) from the 5th/6th shift lever (1).

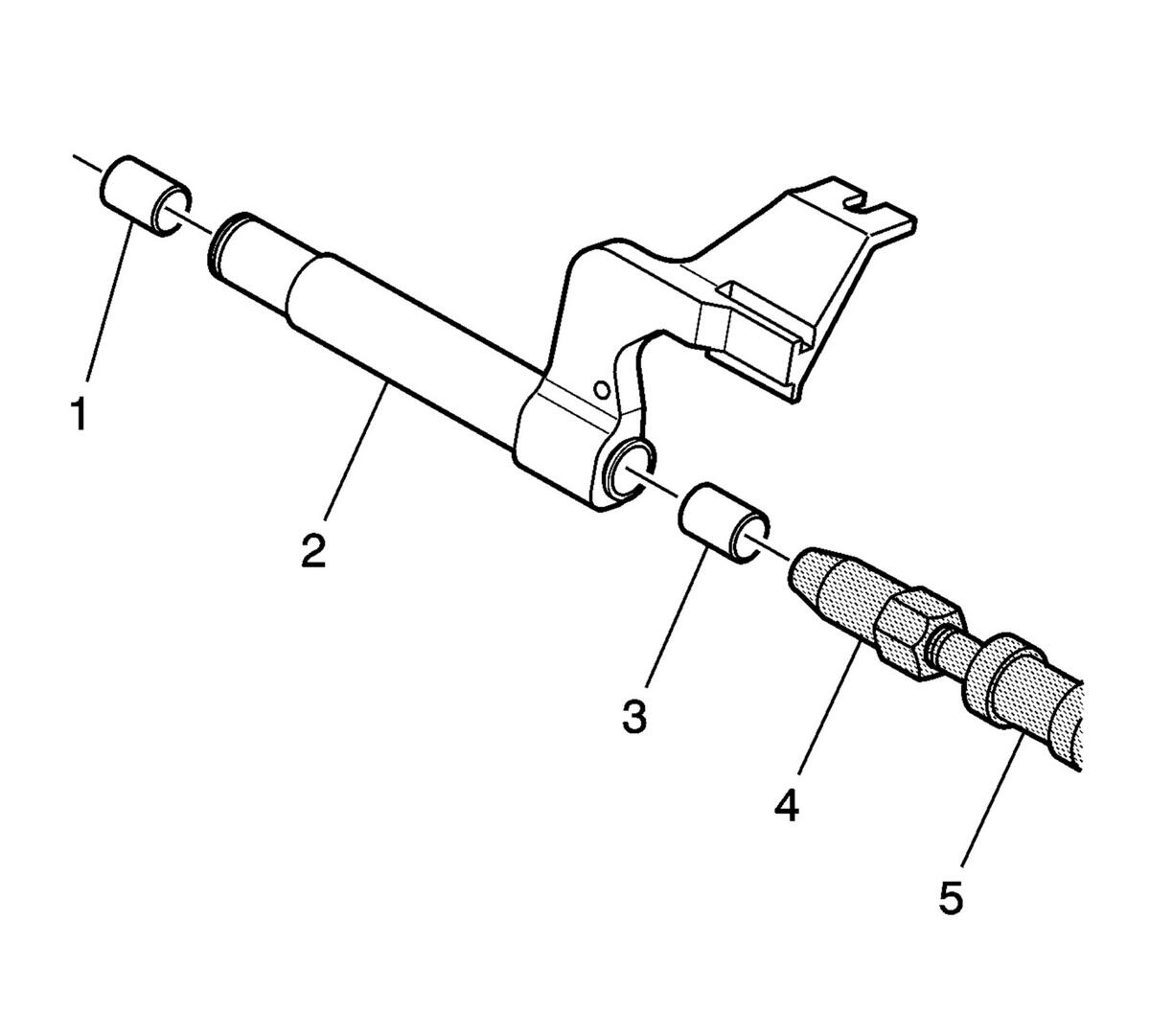

    7. Fig 5: View Of 5th/6th Shift Shaft Lever Bushings With J 23907 & J 39439-2
    GM1938402Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not replace the bushings unless inspection shows bushing damage.
  7. Remove the 5th/6th shift shaft lever bushings (1) and (3) from the 5th/6th shift lever (2) using the J 23907  (5) and the J 39439-2  (4). See Special Tools .
