5th/6th, Reverse Shift Rail Assembly

WARNING: This page is about a different variant/trim than selected.

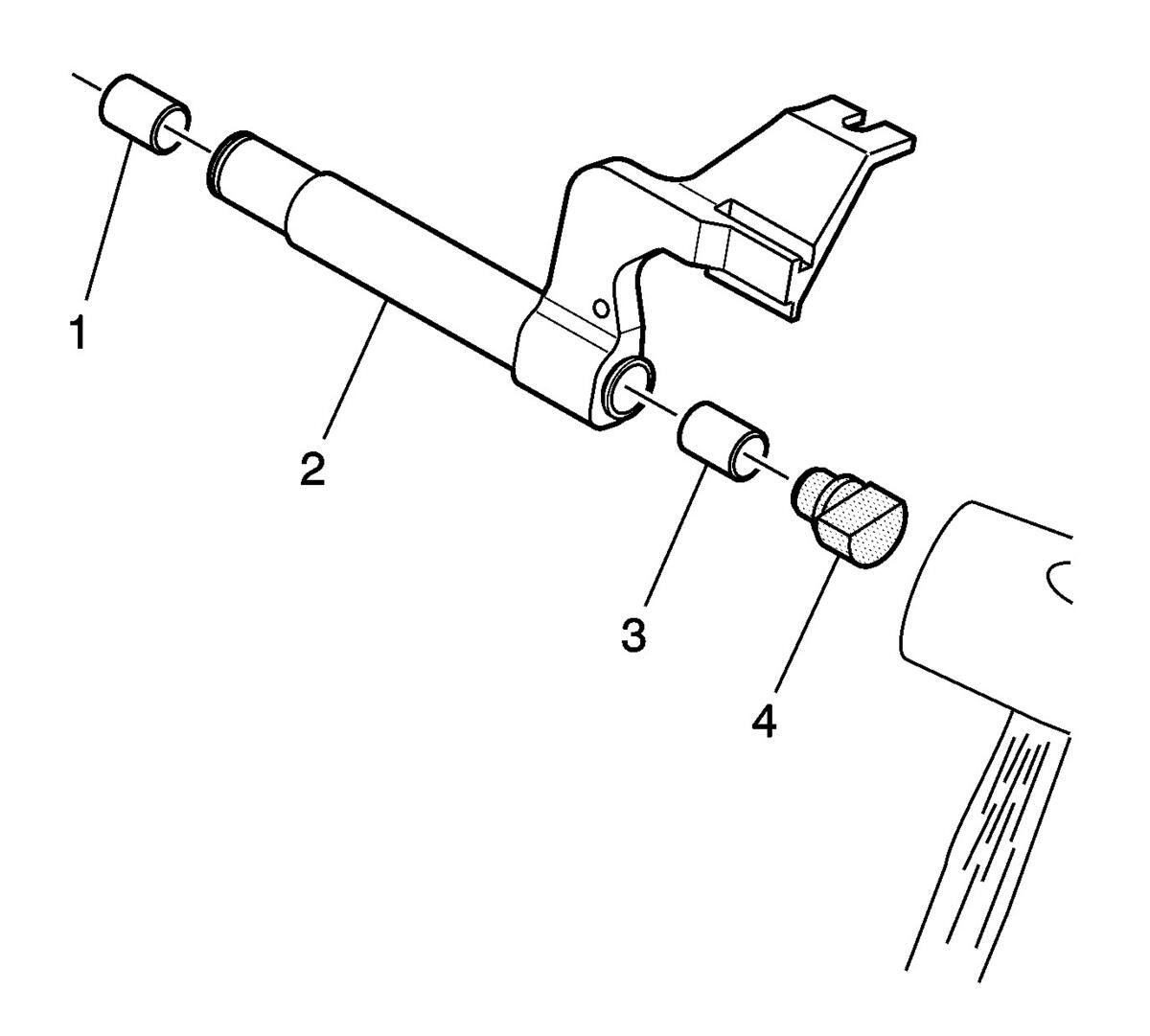

    Fig 1: View Of 5th/6th Shift Shaft Lever Bushings, Lever & J 39437
    GM1938404Courtesy of GENERAL MOTORS CORP.
  1. Install the 5th/6th shift shaft lever bushings (1) and (3) in the 5th/6th shift lever (2) using the J 39437  (4) and a hammer. See Special Tools .
    2. Fig 2: View Of Retainer Ring & 5th/6th Shift Lever
    GM1938401Courtesy of GENERAL MOTORS CORP.
  2. Install the retainer ring (2) on the 5th/6th shift lever (1).

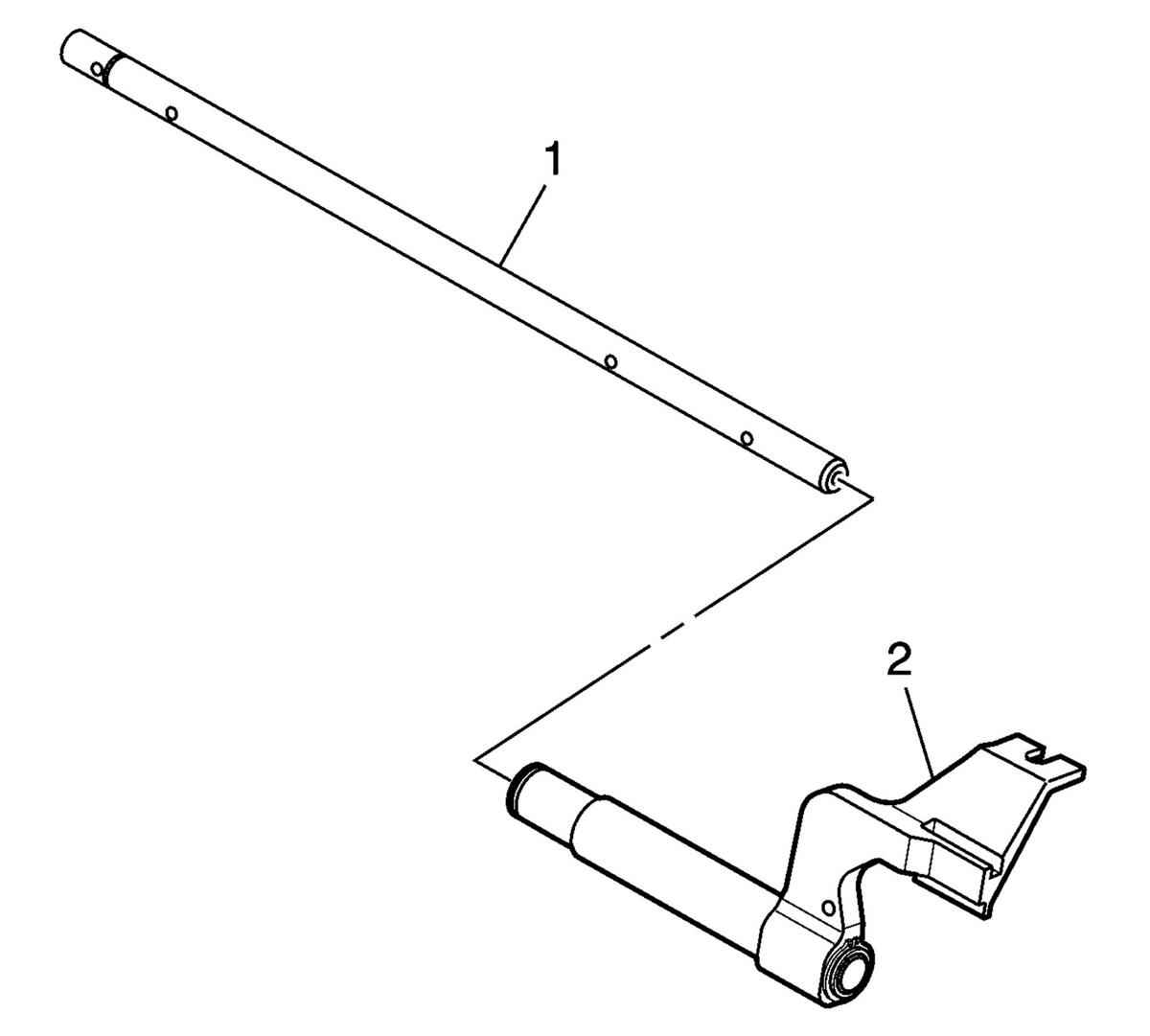

    3. Fig 3: View Of 5th/6th Shift Lever & Shift Shaft
    GM1938395Courtesy of GENERAL MOTORS CORP.
  3. Install the 5th/6th shift lever (2) on the shift shaft (1).

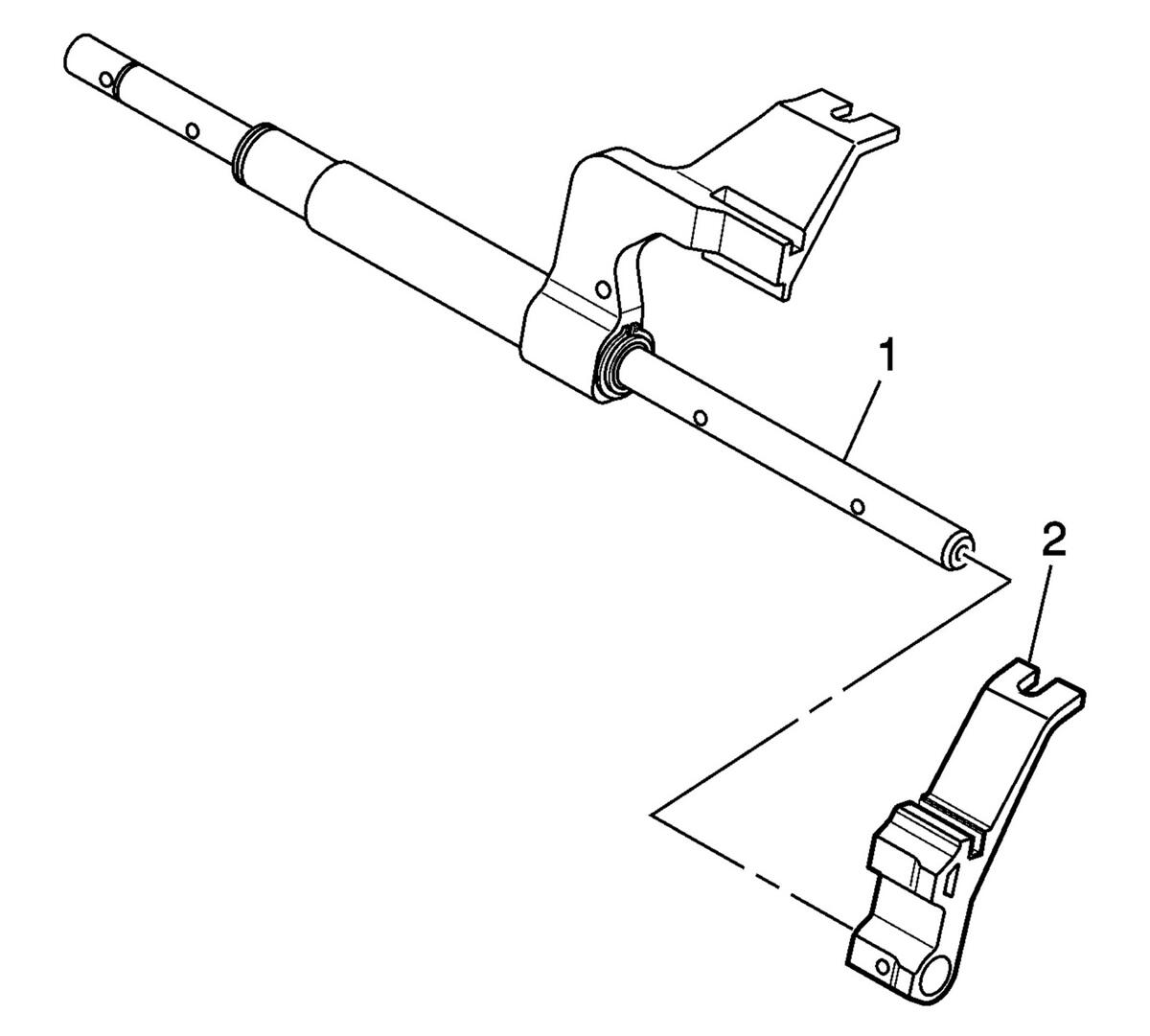

    4. Fig 4: View Of Reverse Shift Lever On The Shift Shaft
    GM1938394Courtesy of GENERAL MOTORS CORP.
  4. Install the reverse shift lever (2) on the shift shaft (1).

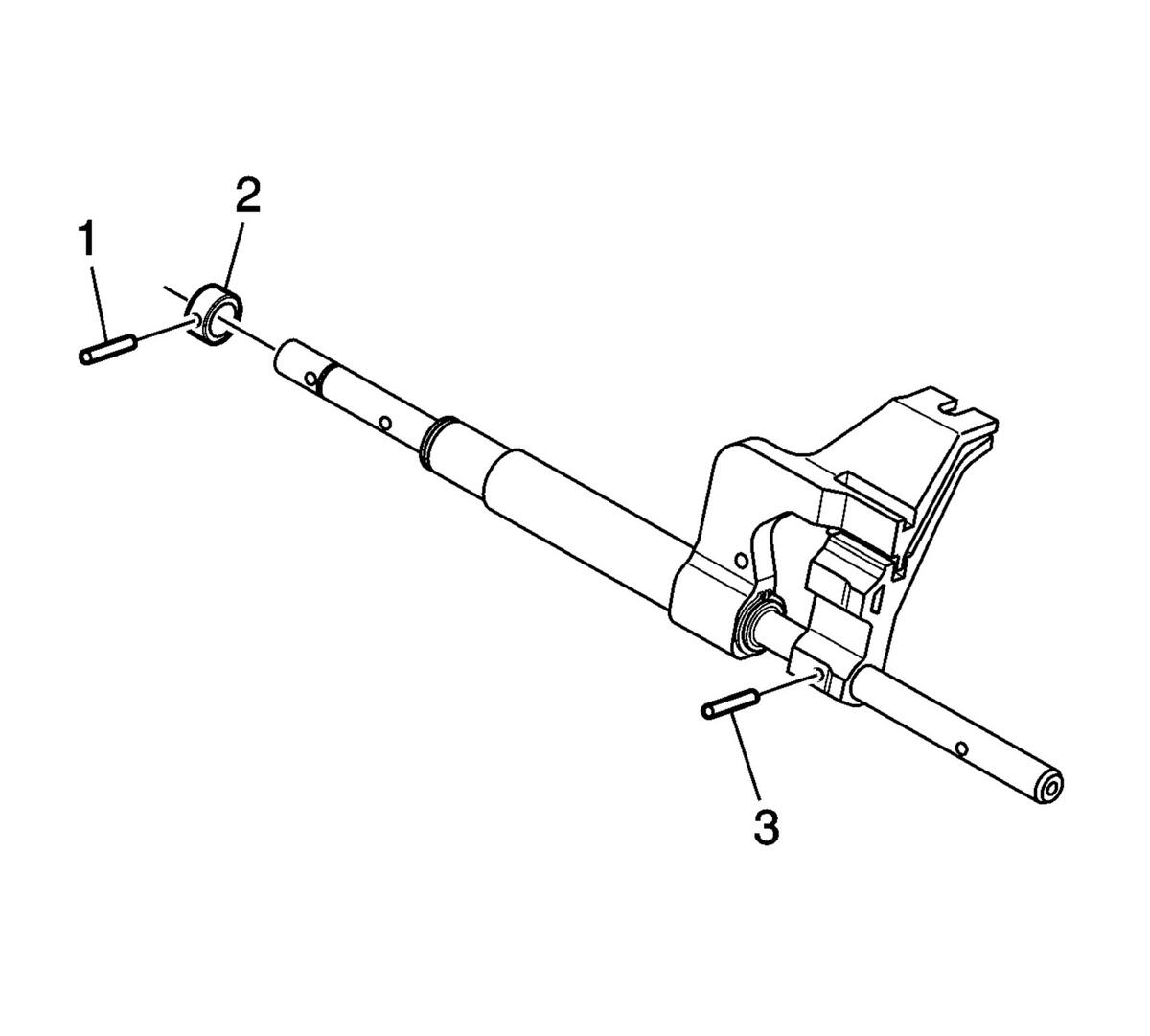

    5. Fig 5: View Of Reverse Lever Roll Pin
    GM1938393Courtesy of GENERAL MOTORS CORP.
  5. Install the reverse lever roll pin (3).
  6. Install the reverse collar (2).
  7. Install the reverse collar roll pin (1).
