1st/2nd, 3rd/4th Shift Rail Assembly

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Selector Pin & Shift Shaft
    GM1938392Courtesy of GENERAL MOTORS CORP.
  1. Install the selector pin (2) on the shift shaft (1).
  2. Align the roll pin hole on the selector pin with the roll pin hole on the shift shaft.
  3. Install the roll pin (3) through the selector pin (2) and the shift shaft (1).
    4. Fig 2: View Of Interlocking Plate & Selector Pin
    GM1938391Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The interlocking plate fits loosely on the shift shaft and selector pin assembly. Use the J 36850  lubricant to hold the interlocking plate in place. See Special Tools .
  4. Install the interlocking plate (2) on the selector pin (1).
    5. Fig 3: View Of 3rd/4th Shift Fork & Shift Shaft
    GM1887585Courtesy of GENERAL MOTORS CORP.
  5. Install the 3rd/4th shift fork (2) on the shift shaft (1).
    6. Fig 4: Aligning Notch On Shift Link With Selector Roll Pin
    GM1887593Courtesy of GENERAL MOTORS CORP.
  6. Align the notch on the shift link (2) with the selector roll pin (1).
    7. Fig 5: View Of 1st/2nd Shift Fork On Shift Shaft
    GM1887583Courtesy of GENERAL MOTORS CORP.
  7. Install the 1st/2nd shift fork (1) on the shift shaft (2).

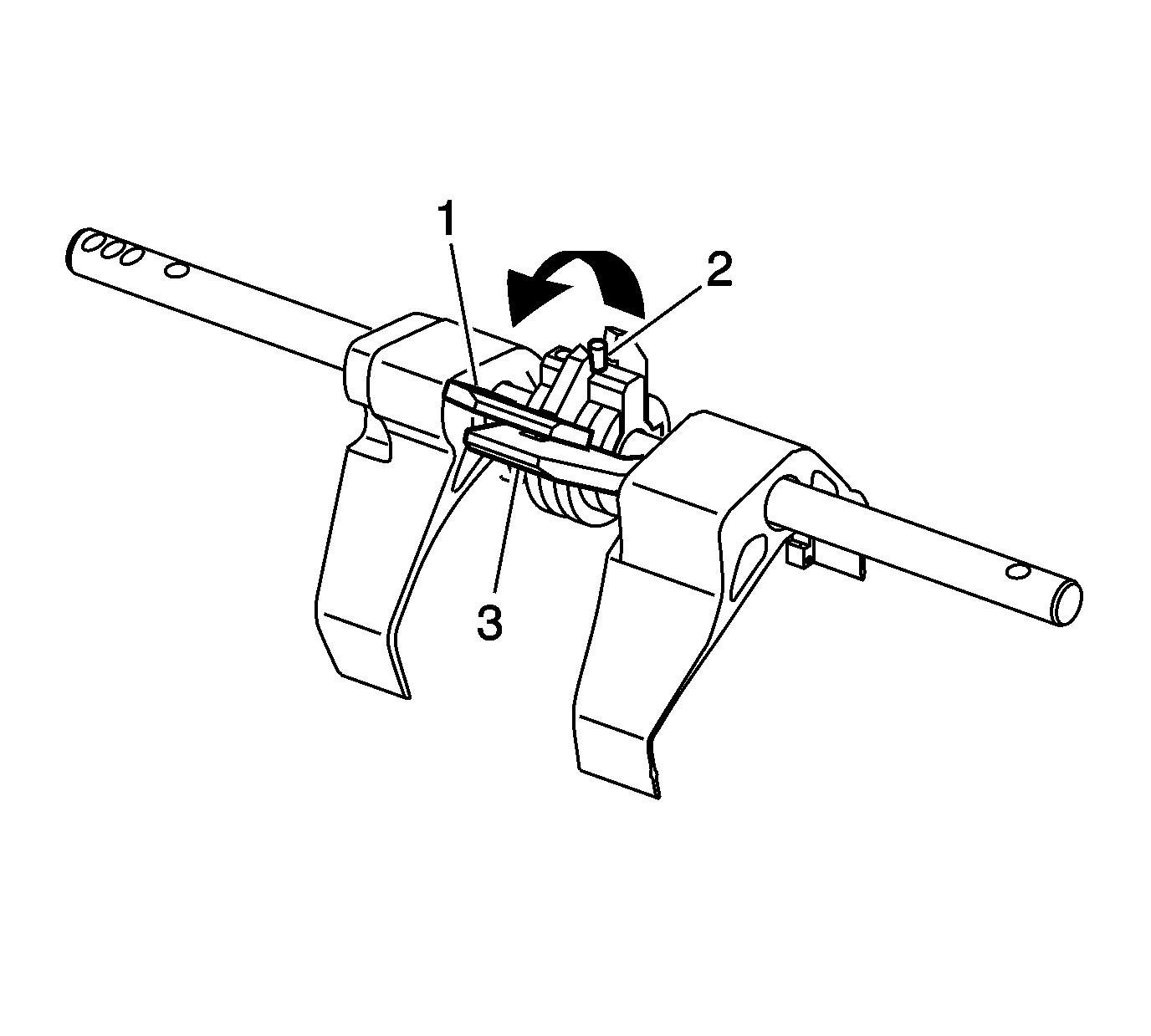

    8. Fig 6: View Of 1st/2nd Shift Shaft Link 3rd/4th Shift Shaft Link
    GM1887595Courtesy of GENERAL MOTORS CORP.
  8. Install the 1st/2nd shift shaft link (1) on top of the 3rd/4th shift shaft link (3) on the interlocking plate and the selector roll pin assembly (2).
