Assembly Procedure

WARNING: This page is about a different variant/trim than selected.

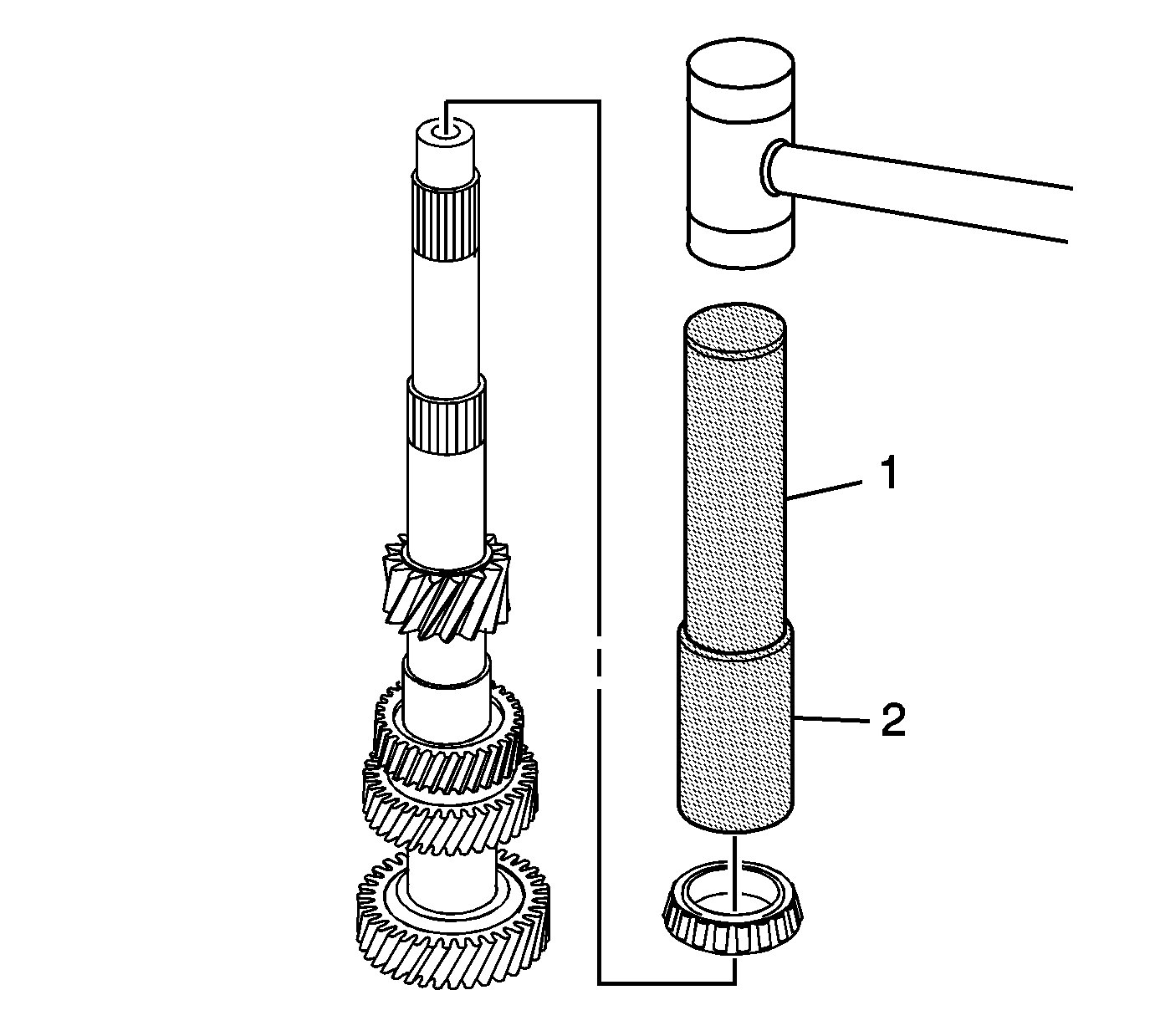

    Fig 1: View Of Tapered Bearing & Special Tools
    GM1748679Courtesy of GENERAL MOTORS CORP.
  1. Install a new large tapered bearing, using the J 5590  (1),J 39441-10  (2) and a rubber mallet. See Special Tools .
    2. Fig 2: View Of Small Tapered Bearing & Special Tool
    GM1748680Courtesy of GENERAL MOTORS CORP.
  2. Install a new small tapered bearing, using the J 5590  and a hydraulic press.
