Removal Procedure

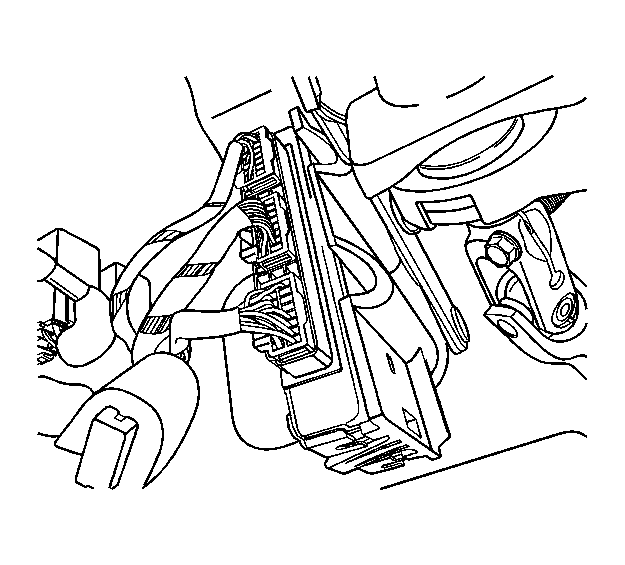

    Fig 1: Identifying TCM Wiring Connectors
    GM1290879Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Disconnect the wiring connectors.
  3. Remove the transaxle control module (TCM) from the bracket.
