Removal Procedure

    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Remove the clip from the selector lever connection on the transaxle case and disconnect the shift control cable from the connection.

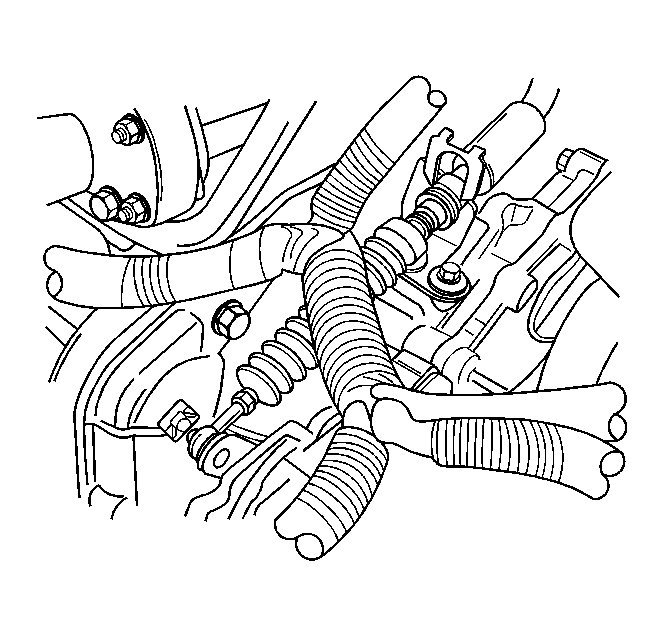

    3. Fig 1: Identifying Shift Control Cable And Clip
    GM1255921Courtesy of GENERAL MOTORS CORP.
  3. Remove the clip from the shift control cable at the transaxle mount connection.
    4. Fig 2: View Of Shift Control Cable Adjuster, Bracket And Pinch Nut
    GM1290875Courtesy of GENERAL MOTORS CORP.
  4. Remove the floor console. Refer to Front Floor Console Replacement .
  5. Loosen the pinch nut on the shift control cable adjuster.
  6. Remove the cable from the shift control assembly.
    7. Fig 3: View Of Cable, Cowl And Grommet
    GM1290877Courtesy of GENERAL MOTORS CORP.
  7. Remove the cable from the transaxle mount.
  8. Pull the cable through the cowl, bringing the rubber grommet with the cable.
