Brake F, Slotted Nut Installation: Installation

Fig 1: View Of Bearing Plate

GM1256030

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Safety Glasses Caution .

Install piston F and the bearing plate with the spur gear.

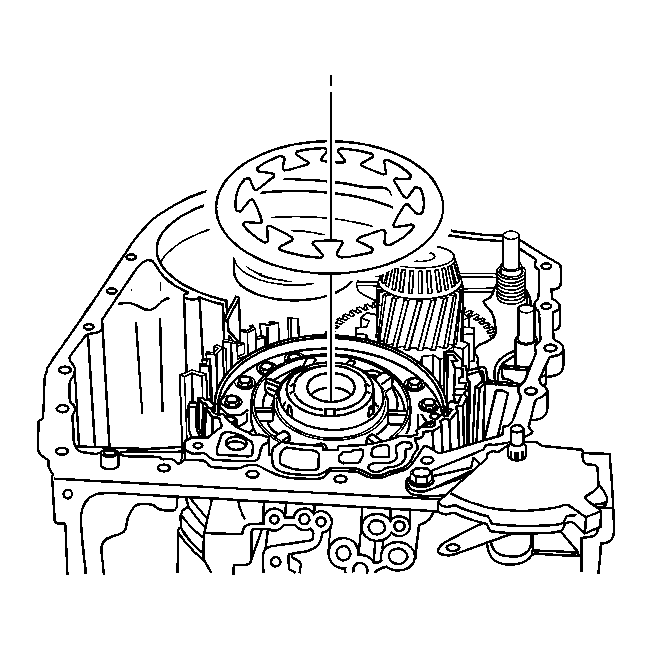

Fig 2: View Of Cup Spring

GM1256026

Courtesy of GENERAL MOTORS CORP.

Install the cup spring.

Fig 3: Identifying F Brake Inner Disc Carrier

GM1256024

Courtesy of GENERAL MOTORS CORP.

Install the brake F split stop-ring.
Install the brake F inner disc carrier.

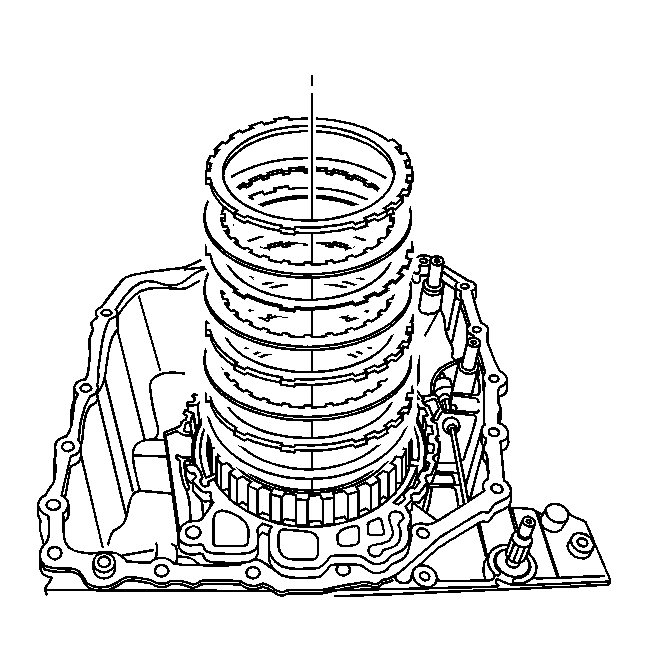

Fig 4: View Of Disc Set

GM1256023

Courtesy of GENERAL MOTORS CORP.

Install the disc set.
Install the side shaft. Refer to Side Shaft Installation .
