Side Shaft Installation

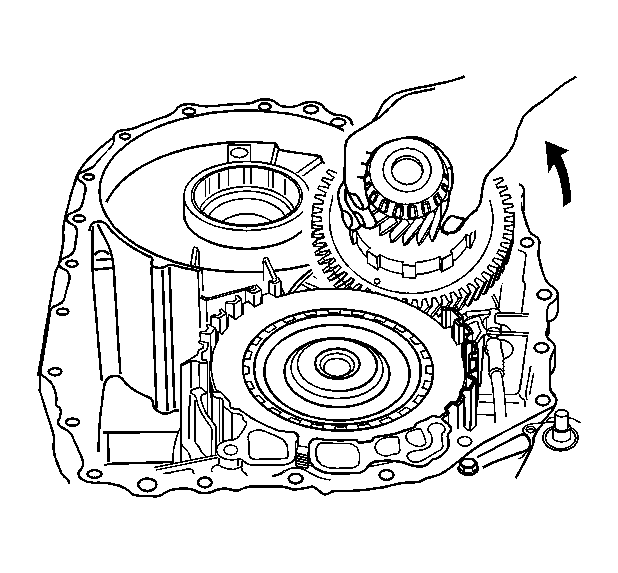

    Fig 1: Identifying Side Shaft
    GM1256022Courtesy of GENERAL MOTORS CORP.
  1. Tilt and install the side shaft.
  2. Install the differential. Refer to Differential Assembly Installation .
