Installation Procedure

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

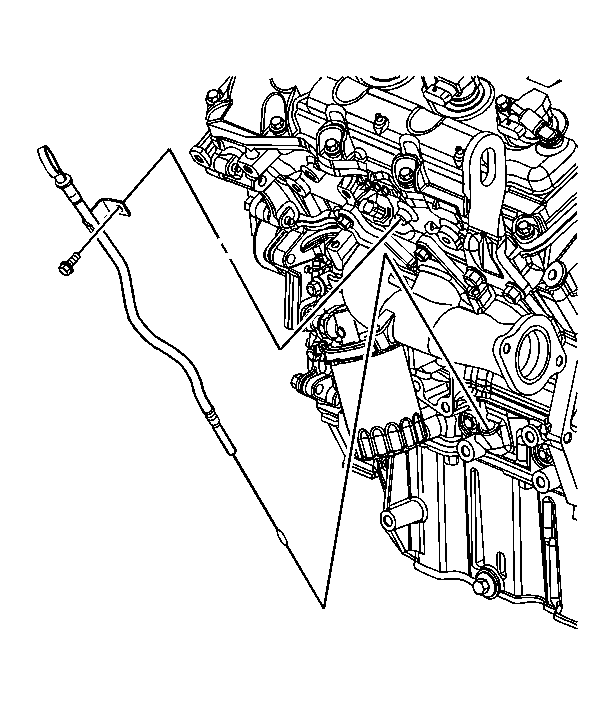

    Fig 1: View Of Oil Level Indicator & Tube
    GM1394091Courtesy of GENERAL MOTORS CORP.
  1. Install the oil level indicator and tube. Refer to Oil Level Indicator and Tube Installation .
  2. Lower the vehicle.
