Transmission Control Replacement

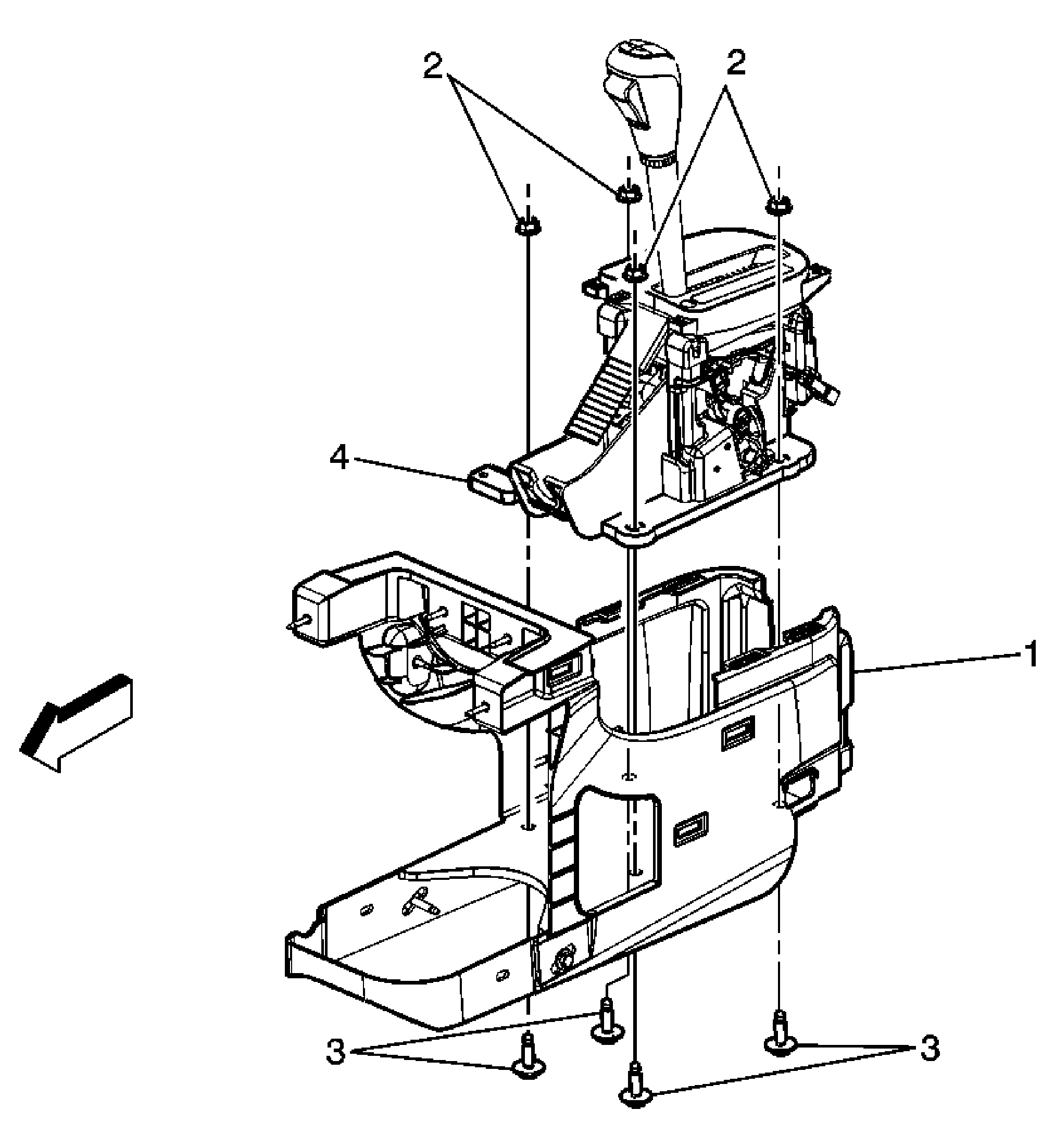

Fig 1: Floor Shift Control Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Disconnect the shift cables from the shift control. Refer to Floor Shift Control Cable Replacement . Disconnect the shift lock solenoid electrical connector.
1	Instrument Panel Center Support Bracket. Refer to Instrument Panel Center Support Bracket Replacement .
2	Shift Control Nut (Qty: 4) Tighten: 10 N.m (89 lb in)
3	Shift Control Bolt (Qty: 4)
4	Shift Control
