Installation Procedure

  1. Insert the cable through the driver floor opening.

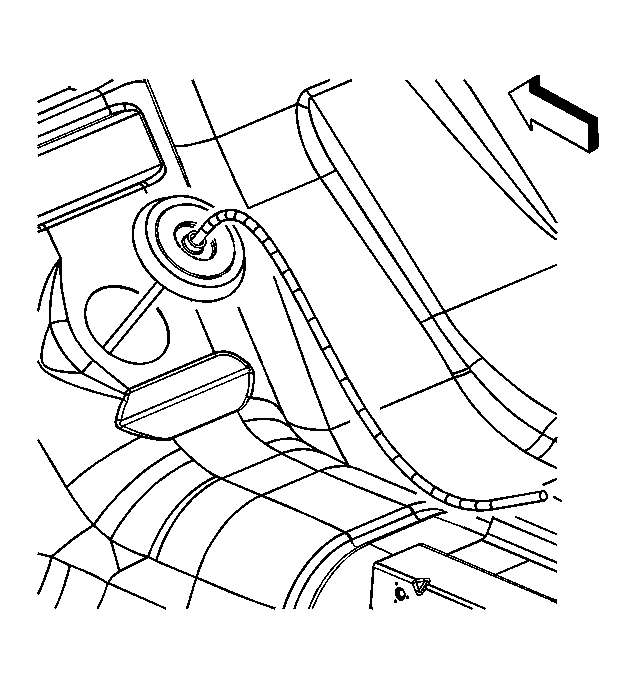

    2. Fig 1: View Of Driver Floor Opening
    GM1740251Courtesy of GENERAL MOTORS CORP.
  2. Install the grommet flush with the floor opening.
  3. Install the driver side front carpet.
    4. Fig 2: View Of Shift Control
    GM851244Courtesy of GENERAL MOTORS CORP.
  4. Connect the shift cable to the shift control assembly.
  5. Install the console. Refer to Front Floor Console Replacement .

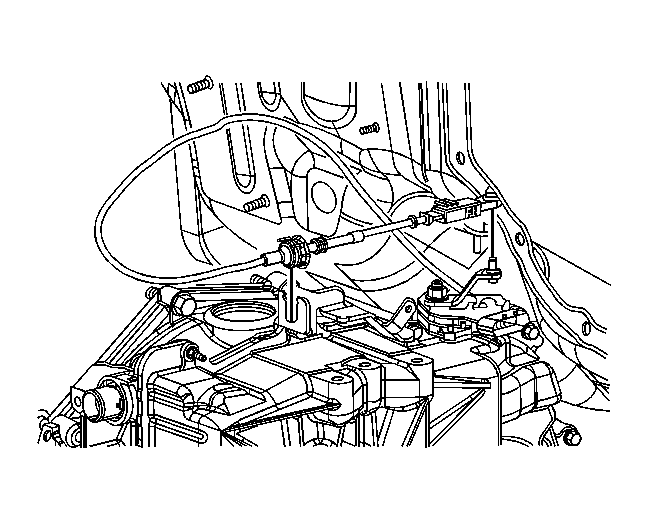

    6. Fig 3: Identifying Shift Cable
    GM1521639Courtesy of GENERAL MOTORS CORP.
  6. Connect the shift cable to the park/neutral position switch.
  7. Connect the shift cable to the transmission cable bracket.
  8. Raise the vehicle.

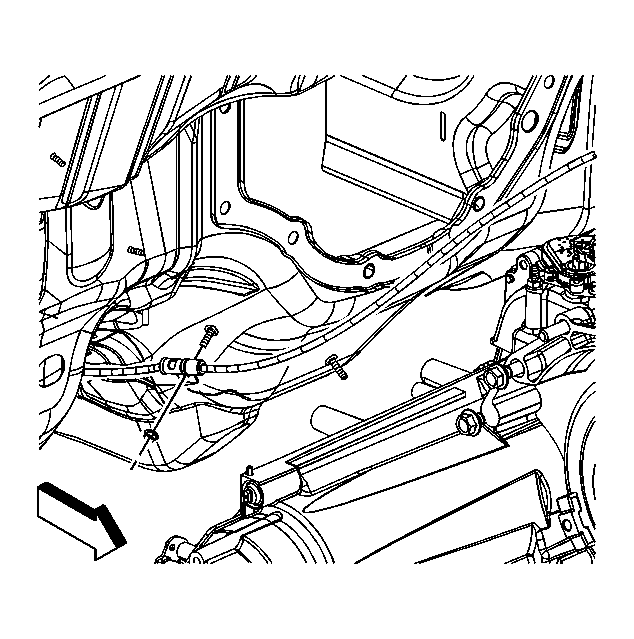

    9. Fig 4: Identifying Shift Cable Retaining Nut
    GM1521636Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  9. Install the shift cable retaining nut near the exhaust heat shield.

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

  10. Lower the vehicle.
  11. Check the operation of the shift control cable for proper adjustment through all the gear ranges. If necessary refer to Shift Control Cable Adjustment .
