Transmission Control Replacement
WARNING: This page is about a different variant/trim than selected.

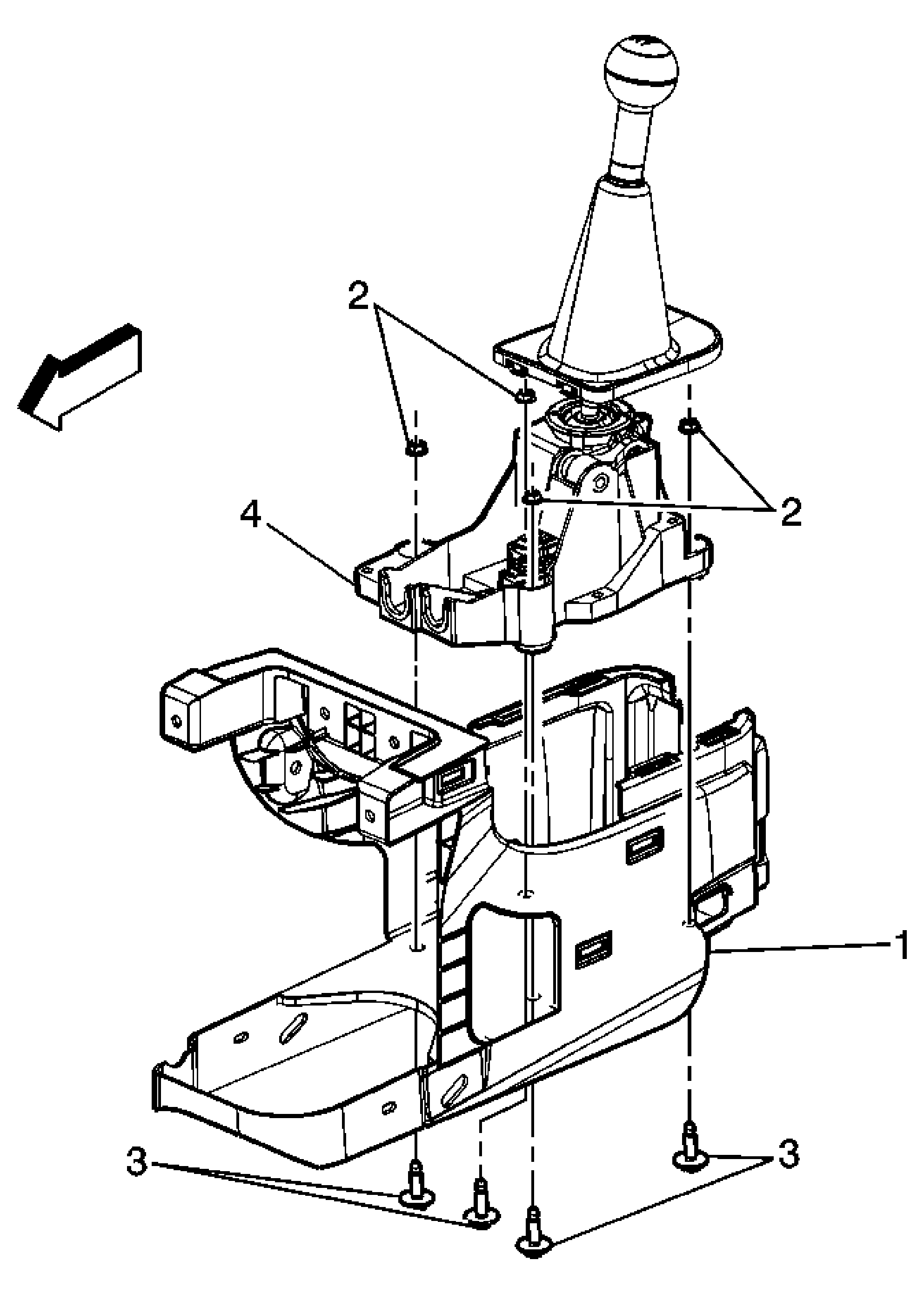

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Disconnect the shift cables from the shift control. Refer to Shift Cable Replacement . |
|
| 1 | Instrument Panel Center Support Bracket. Refer to Instrument Panel Center Support Bracket Replacement . |
| 2 | Shift Control Nut (Qty: 4) Tighten: 10 N.m (89 lb in) |
| 3 | Shift Control Bolt (Qty: 4) |
| 4 | Shift Control |
