Instrument Cluster Replacement

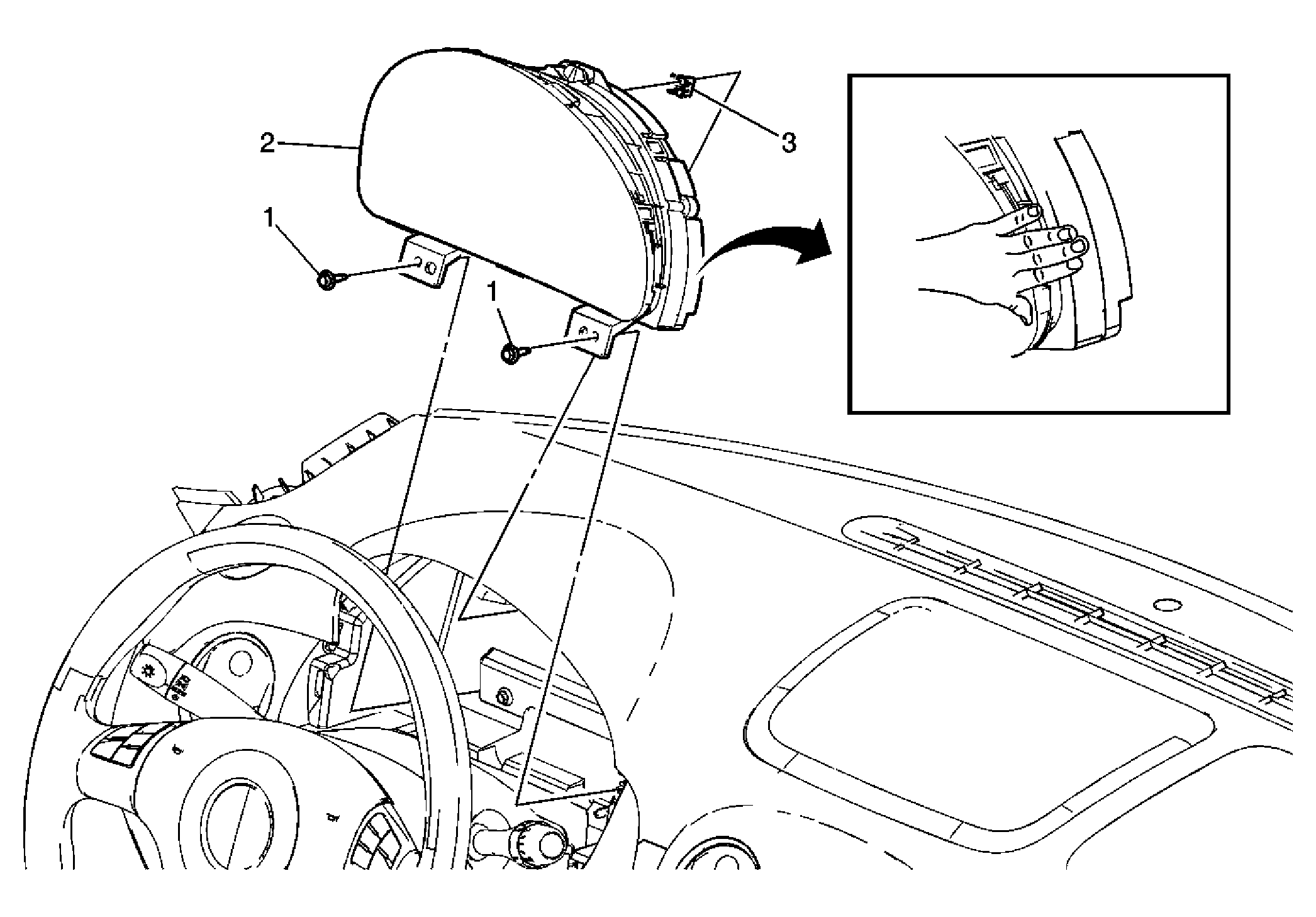

Fig 1: Instrument Panel (I/P) Retainer Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: In order to avoid cluster lens damage, DO NOT grasp the lens to remove the cluster. Preliminary Procedure: Remove the instrument panel cluster trim bezel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement .
1	Instrument Panel Cluster Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Instrument Panel Cluster Assembly Tip: Disconnect the electrical connector.
3	Retainer Clip (Qty: 1) Tip: Remove the cluster by grasping the ridge about 13 mm (0.50 in) back from the lens.
