Instrument Panel Cluster Trim Plate Bezel Replacement

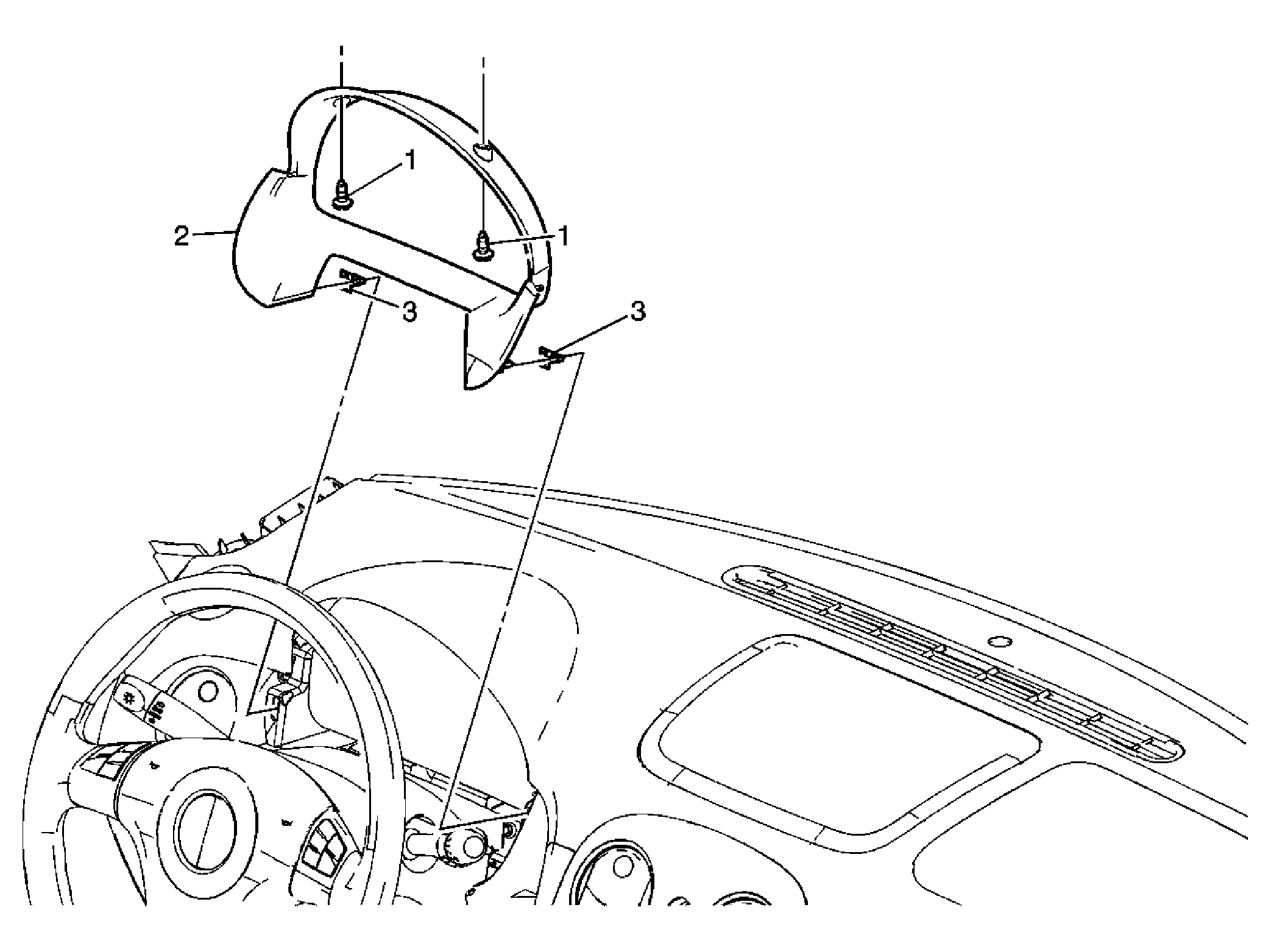

Fig 1: Instrument Panel Cluster Trim Plate Bezel Replacement
GM1608391Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Cluster Trim Plate Screws (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  2 N.m (18 lb in)
2 Instrument Panel Cluster Trim Plate Assembly
3 Retainer Clips (Qty: 2)
