Rear Seat Replacement

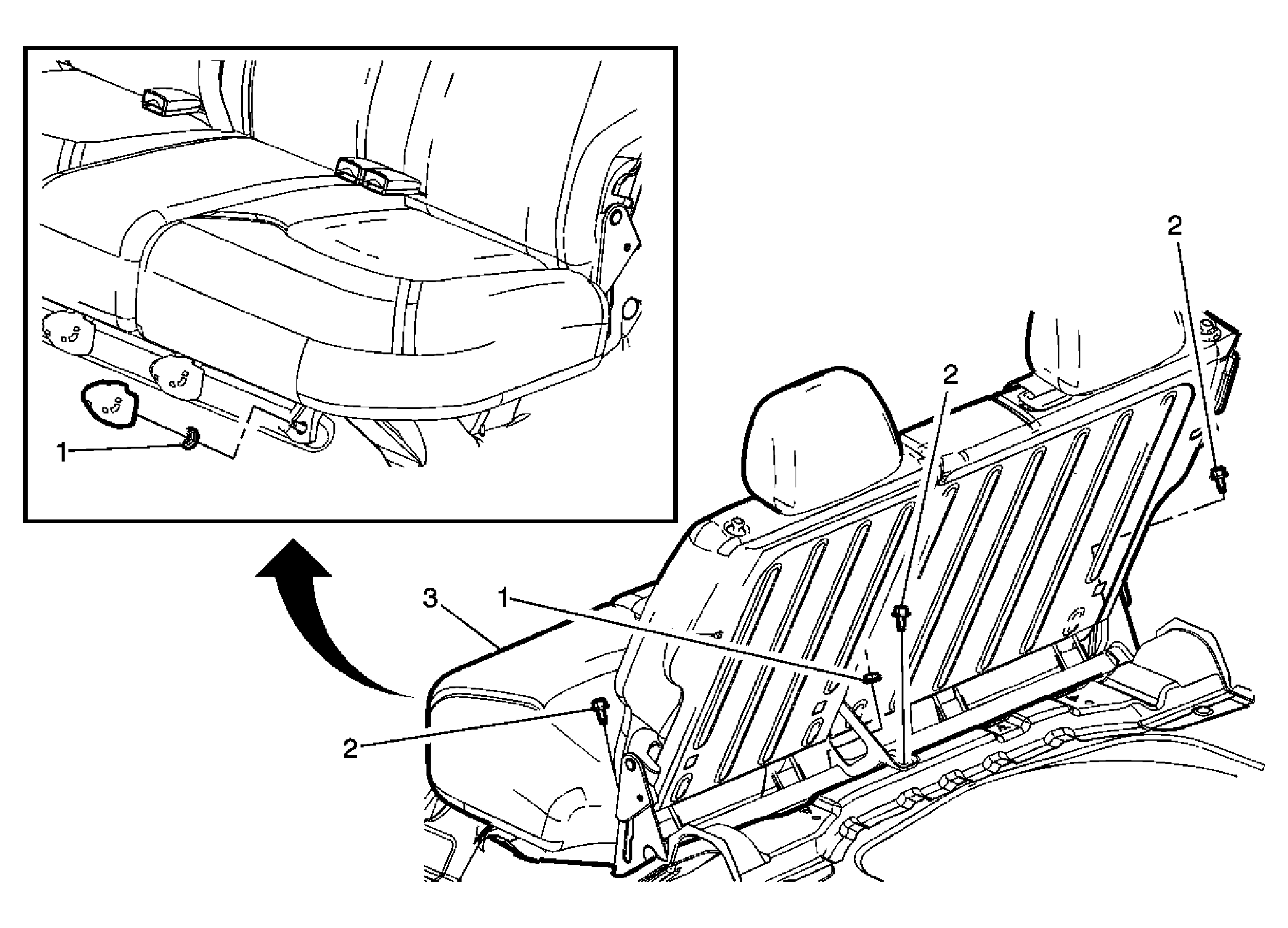

Fig 1: Rear Seat Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear compartment floor stowage compartment tray. Refer to Rear Floor Trim Plate Replacement .
1	Nut, Rear Seat (Qty: 6) Tip: Roll the seat forward enough to get access to the nut that attaches the center seat belt assembly to the floor. NOTE: Refer to Fastener Notice . Tighten: 45 N.m (33 lb ft)
2	Bolt, Rear Seat (Qty: 3) Tip: Adjust the seat forward or rearward to access the bolts. Remove the plastic trim pieces to gain access to the nuts. Tighten: 45 N.m (33 lb ft)
3	Rear Seat Assembly
