Front Floor Console Extension Replacement - Center

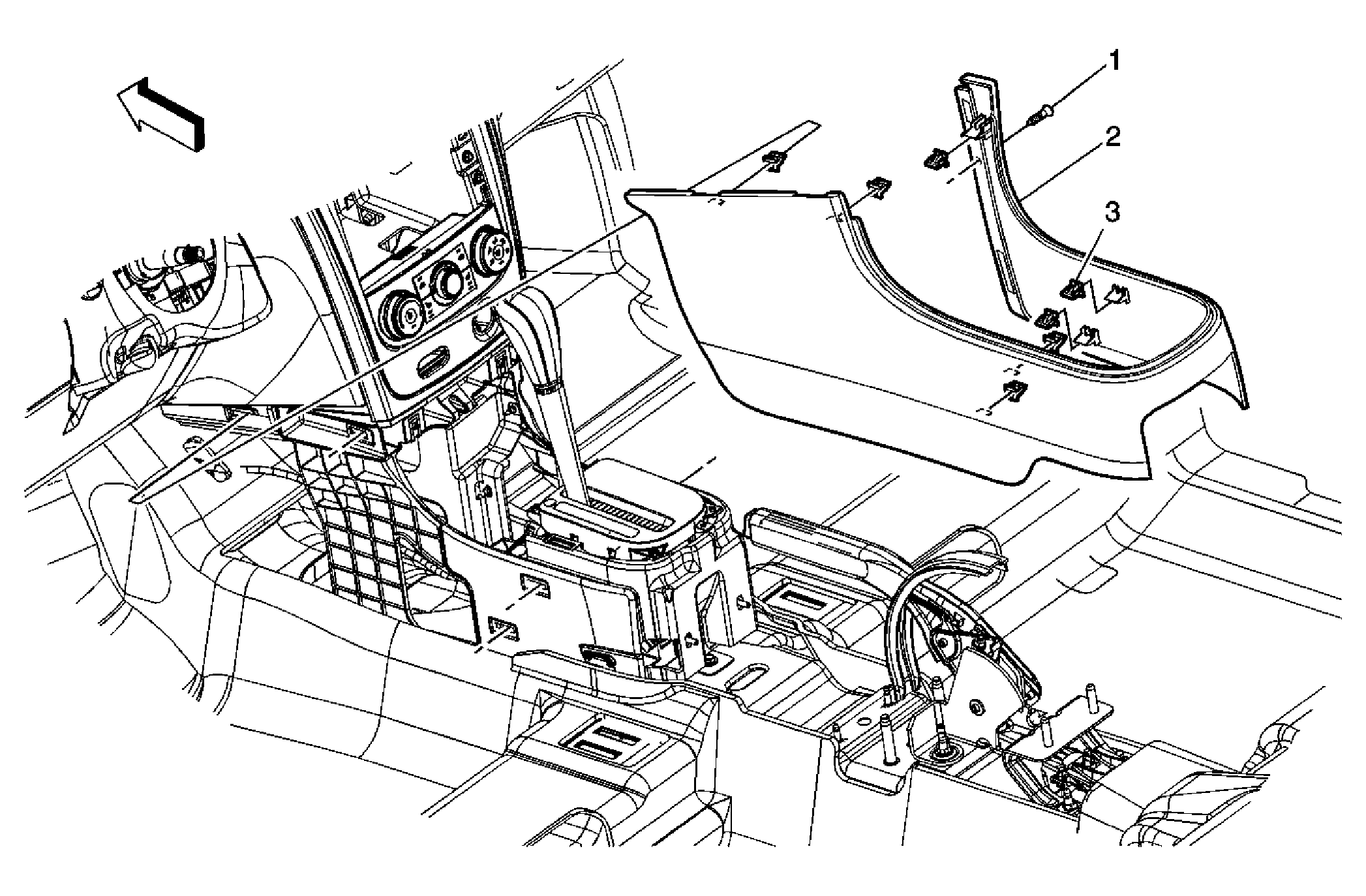

Fig 1: Front Floor Console Extension Replacement - Center

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front floor console trim plate. Refer to Front Floor Console Replacement . Remove the front floor console side extension. Refer to Front Floor Console Extension Replacement - Side . Loosen the rear console trim plate. Refer to Console Rear Trim Plate Replacement .
1	Front Floor Console Extension Assembly Screw (Qty: 1) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Front Floor Console Extension Assembly
3	Retainer Clips (Qty: 7)
