Console Rear Trim Plate Replacement

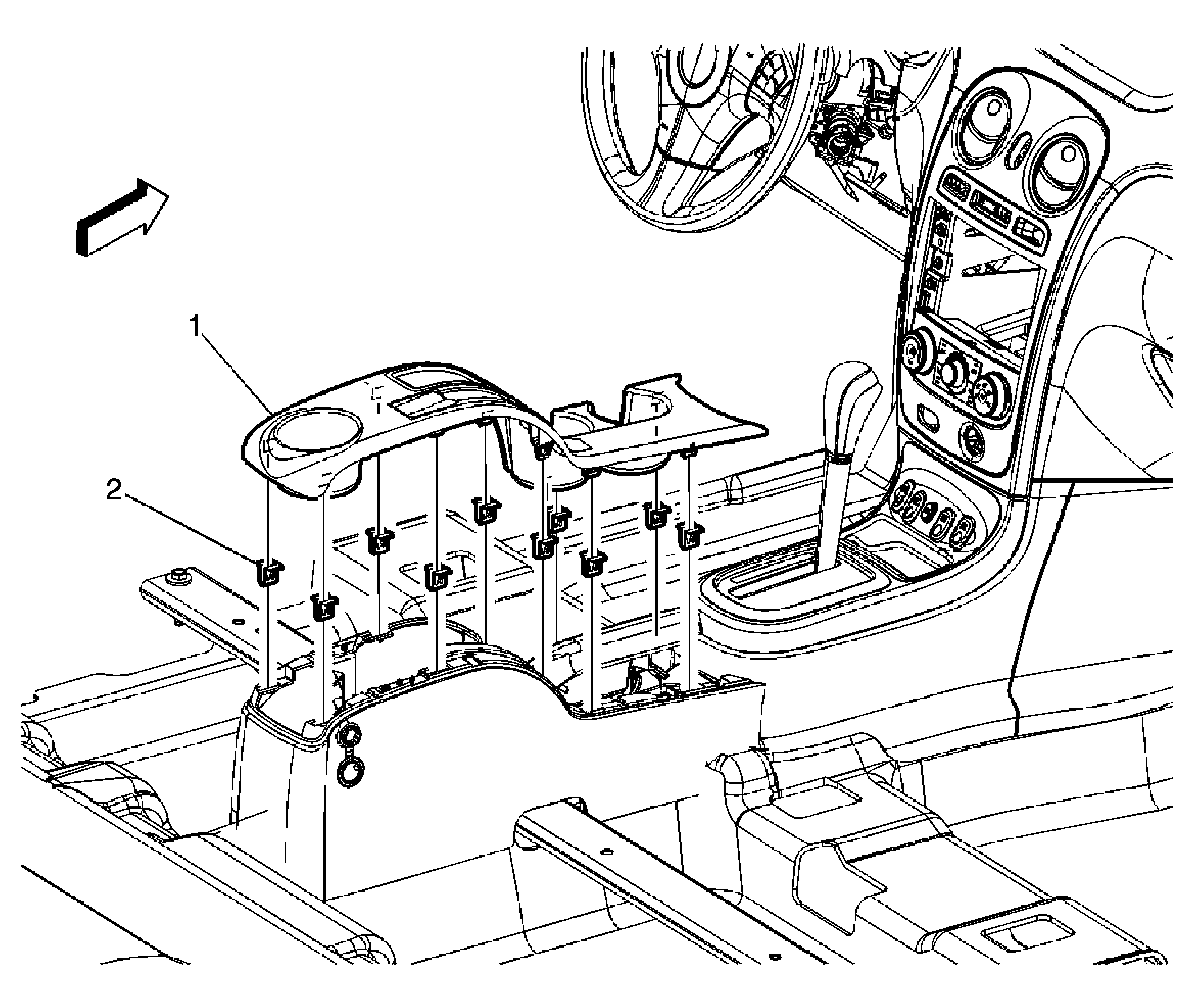

Fig 1: Console Rear Trim Plate Replacement
GM1607818Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the front seat armrests. Refer to Front Seat Armrest Replacement .
1 Console Rear Trim Plate Assembly
2 Retainer Clips (Qty: 10)
