Console Replacement

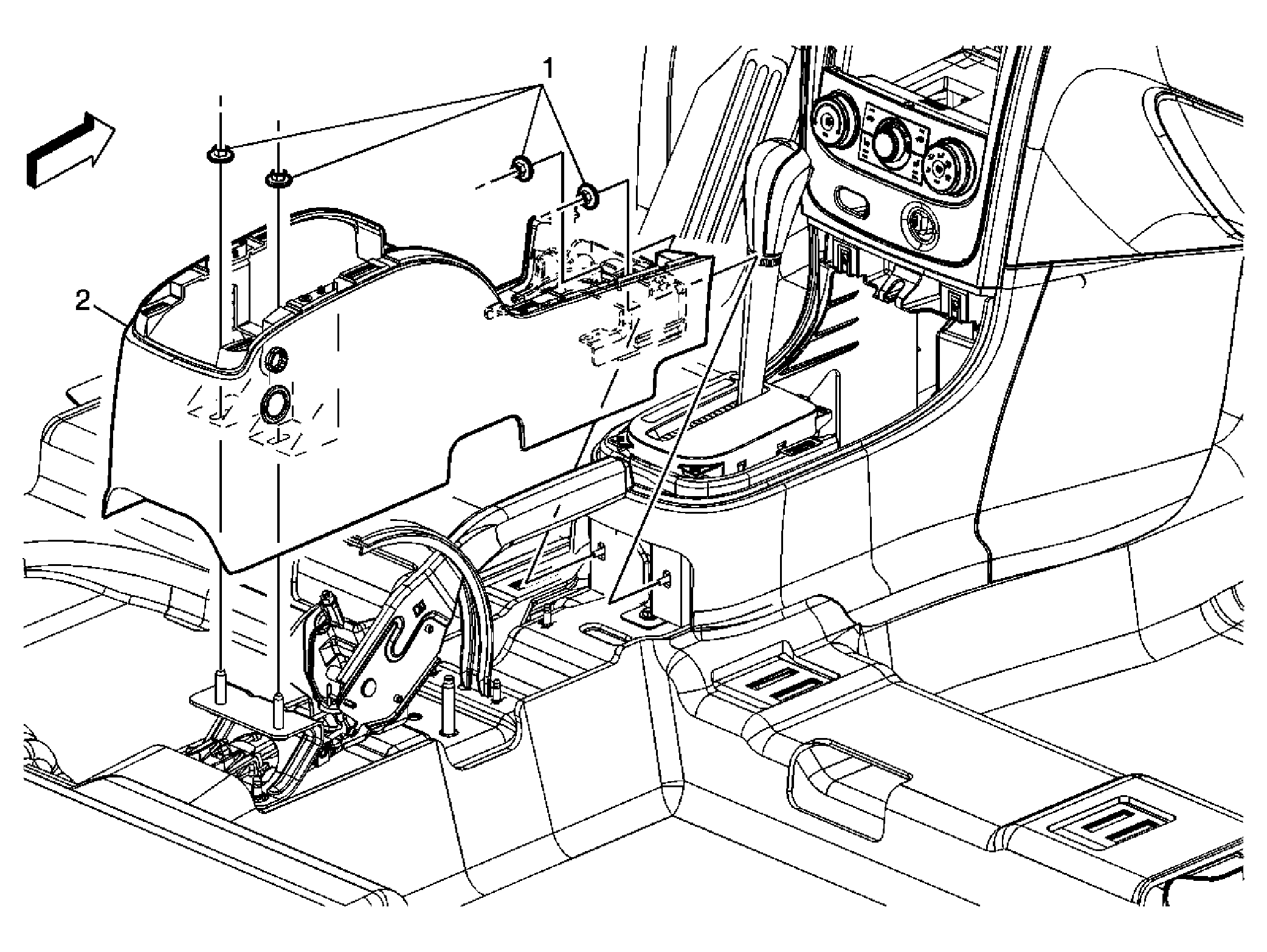

Fig 1: Console Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front floor console. Refer to Front Floor Console Replacement . Remove the rear console trim plate. Refer to Console Rear Trim Plate Replacement
1	Rear Floor Console Assembly Nuts (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Rear Floor Console Assembly Tip: Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure

Remove the front floor console. Refer to Front Floor Console Replacement .
Remove the rear console trim plate. Refer to Console Rear Trim Plate Replacement

Rear Floor Console Assembly Nuts (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 2 N.m (18 lb in)

Rear Floor Console Assembly
Tip: Disconnect the electrical connector.
