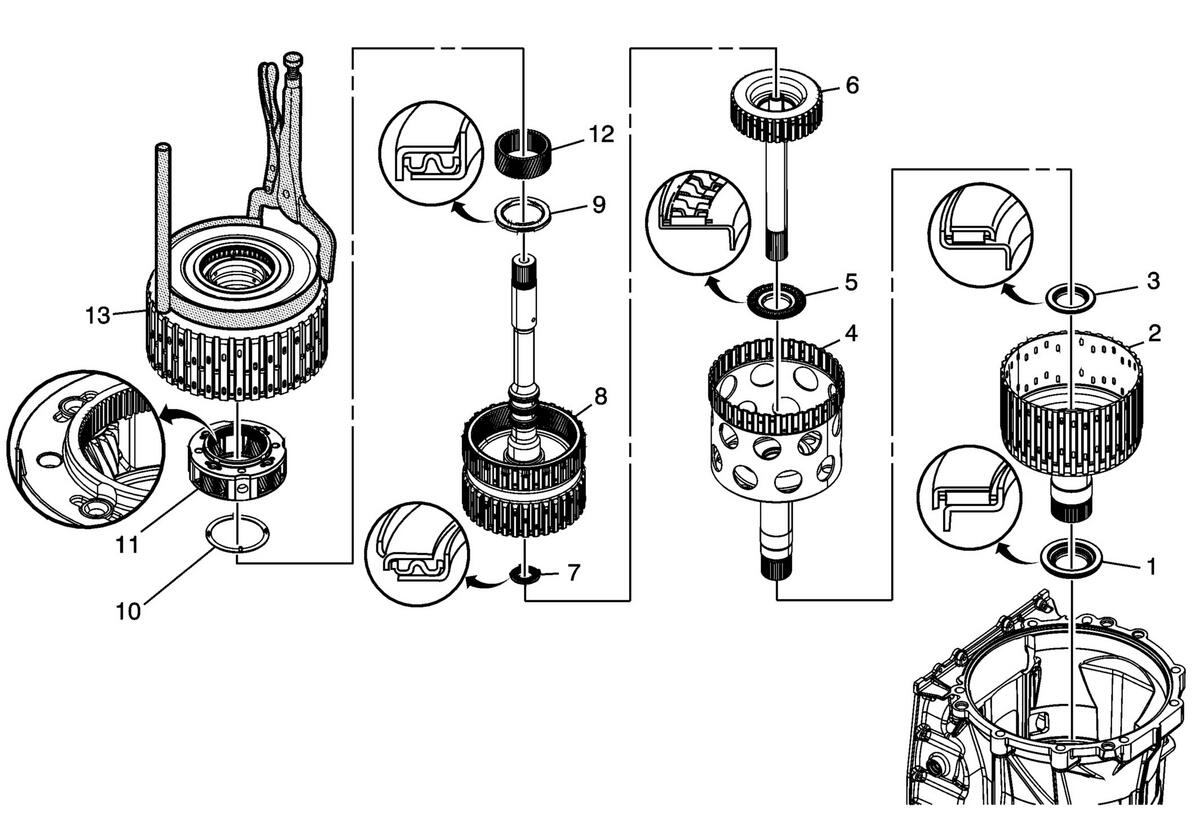

1-2-3-4 and 3-5 Reverse Clutch Assembly and 4-5-6 Clutch Assembly Installation
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | 2-6 and 3-5 Reverse Clutch Hub Thrust Bearing Assembly |
| 2 | 2-6 and 3-5 Reverse Clutch (with Output Carrier Outer Sun Gear Shaft) Hub Assembly |
| 3 | 1-2-3-4 Clutch Hub Thrust Bearing Assembly |
| 4 | 1-2-3-4 Clutch (with Output Carrier Inner Sun Gear Shaft) Hub Assembly |
| 5 | 4-5-6 Clutch Hub Thrust Bearing Assembly |
| 6 | 4-5-6 Clutch (with Output Carrier Shaft and Dampener) Hub Assembly Tip: Refer to 4-5-6 Clutch Dampener Overhaul for complete inspection. |
| 7 | Turbine Shaft Thrust Bearing Assembly |
| 8 | 4-5-6 (with Turbine Shaft) Clutch Assembly |
| 9 | Input Sun Gear Thrust Bearing Tip: Thrust bearing snaps onto input carrier assembly. |
| 10 | Input Sun Gear Thrust Washer |
| 11 | Input Carrier Assembly |
| 12 | Input Sun Gear |
| 13 | 1-2-3-4 and 3-5 Reverse Clutch Assembly Tip: Wiggle the DT 47781 in order to align the 1-2-3-4 and 3-5 reverse clutch plates with the external splines of the 4-5-6 clutch assembly. See Special Tools . To verify that the 1-2-3-4 and 3-5 reverse clutch assembly is fully installed, lift up on the turbine shaft. There should not be any noticeable slack. Special Tool: DT 47781 C1234 35R Clutch Assembly Installer. See Special Tools . |
