4-5-6 Clutch Dampener Overhaul
WARNING: This page is about a different variant/trim than selected.

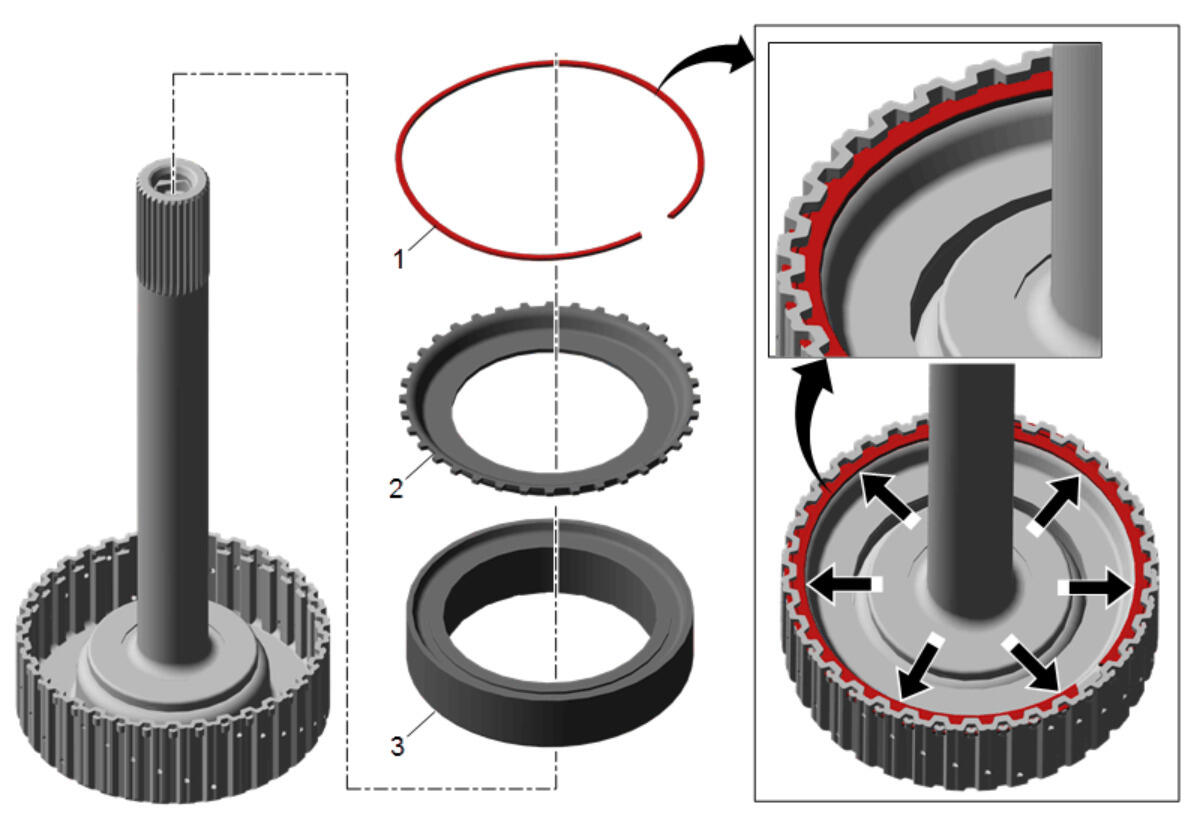

| Callout | Component Name |
|---|---|
| 1 | 4-5-6 Clutch Dampener Retaining Ring
NOTE:
Ensure the retaining ring is fully seated when installed. Using a screwdriver, fully seat the retaining ring into the groove by pushing on the inside diameter around the whole circumference. If the retaining ring is not fully seated, transmission damage will result.
|
| 2 | 4-5-6 Clutch Dampener Apply Plate |
| 3 | 4-5-6 Clutch Dampener Tip: Dry and inspect the clutch dampener for the following conditions:
|
