Instrument Cluster Replacement

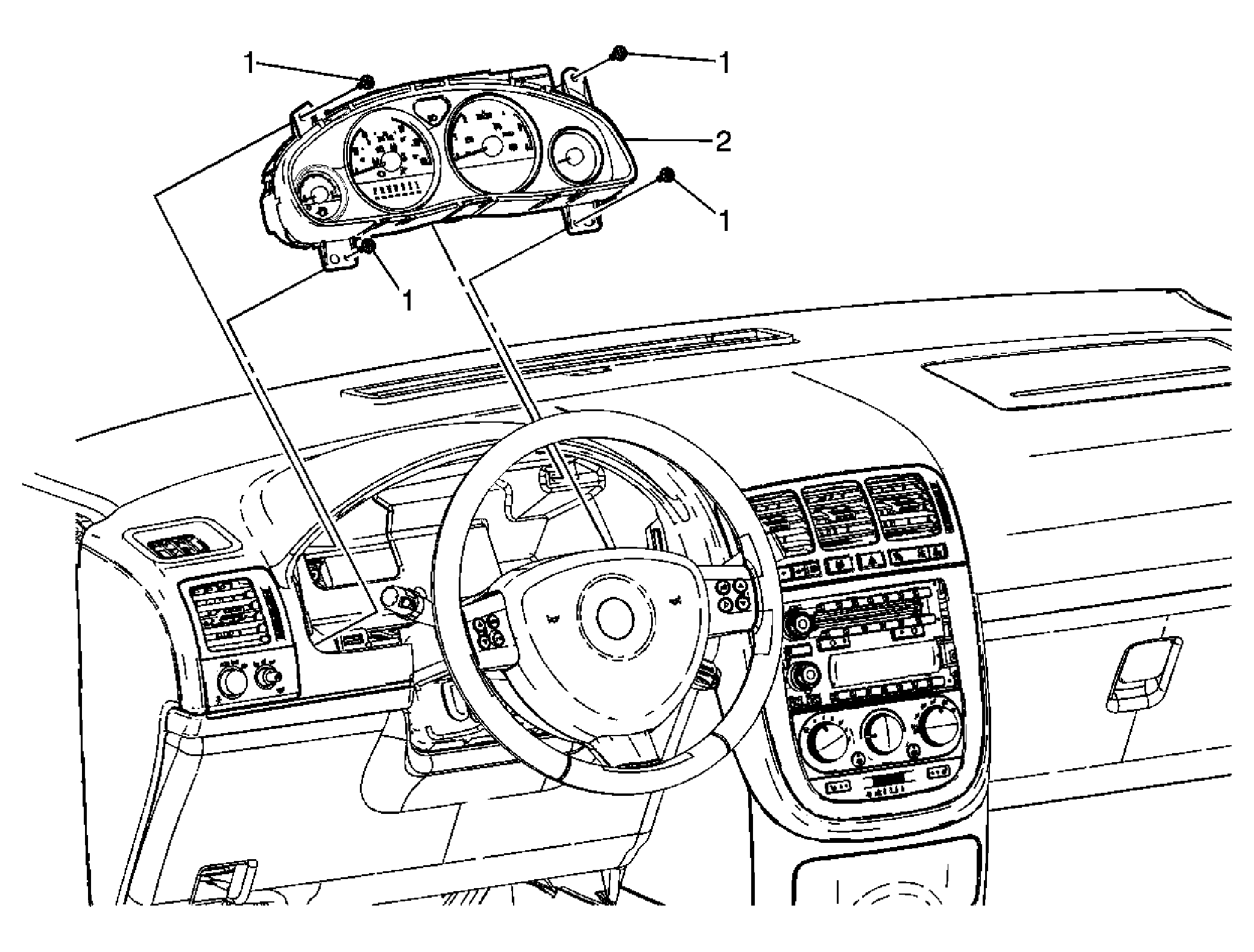

Fig 1: Instrument Cluster
GM1750458Courtesy of GENERAL MOTORS CORP.
Instrument Cluster Replacement

Callout Component Name
Preliminary Procedure:
Remove the instrument panel cluster trim bezel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement .
1 Instrument Panel Cluster Assembly Screws (Qty: 4)
NOTE: Refer to Fastener Notice .

Tighten:  2 N.m (18 lb in)
2 Instrument Panel Cluster Assembly
Tip:  Disconnect the electrical connectors.
