Instrument Panel Cluster Trim Plate Bezel Replacement
Instrument Panel Cluster Trim Plate Bezel Replacement

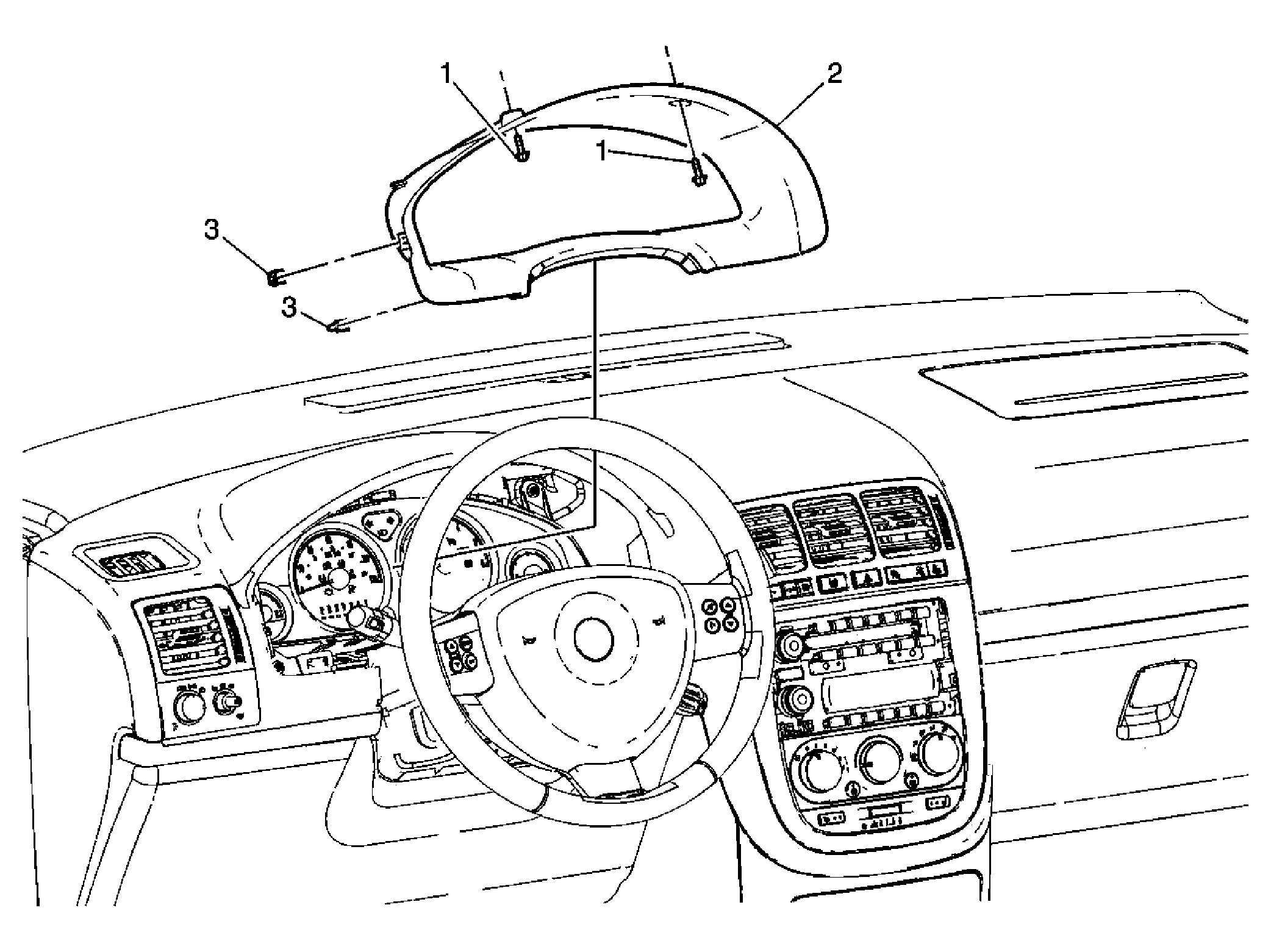

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Cluster Trim Plate Bezel Screws (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 2 | Instrument Panel Cluster Trim Plate Bezel Assembly |
| 3 | Retainer Clips (Qty: 4) |
