Seat Switch Replacement - Power (Monte Carlo)

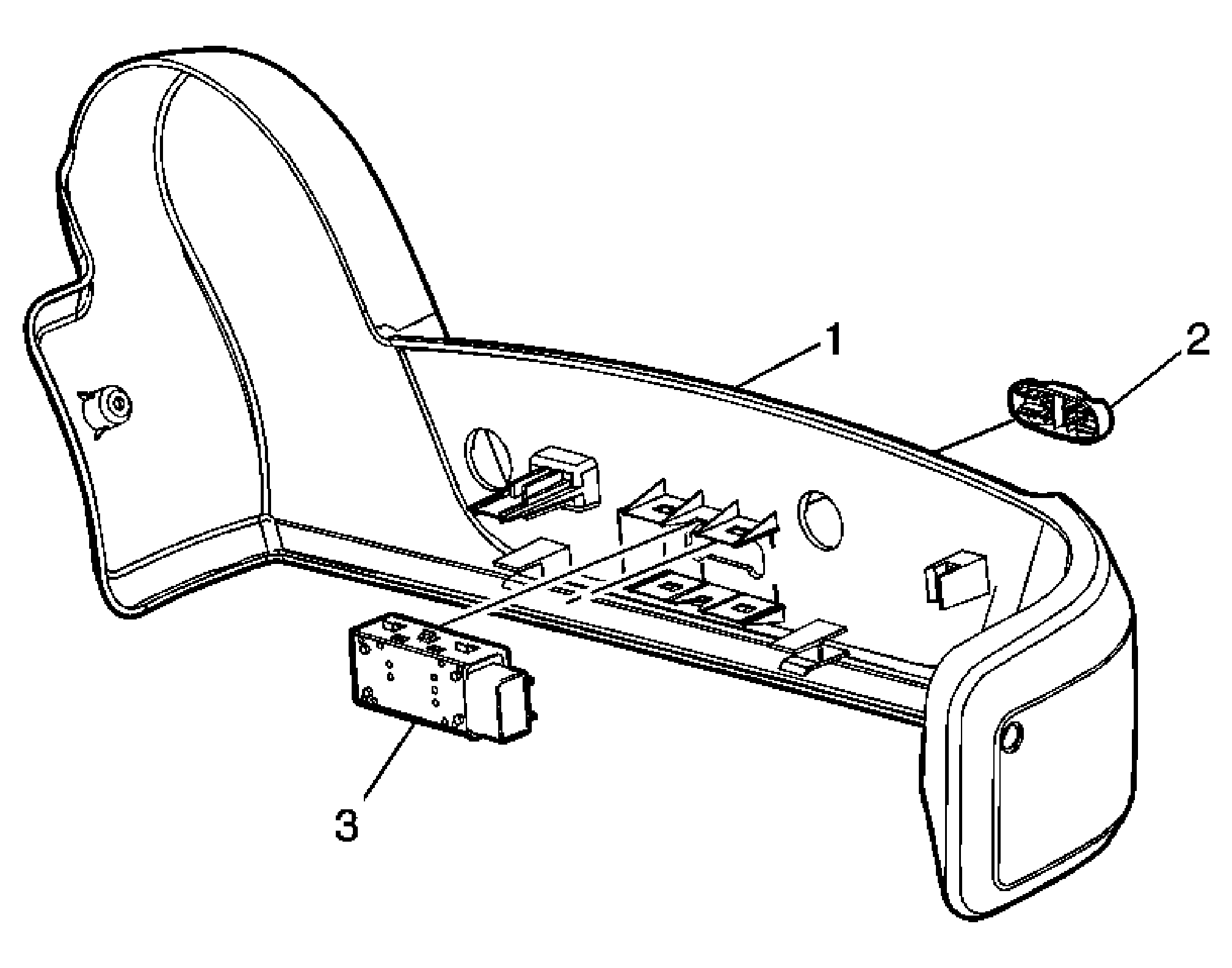

Fig 1: Identifying Power Seat Switch Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Panel, Seat Cushion Outer Trim Refer to Seat Cushion Outer Trim Panel Replacement (Impala) or Seat Cushion Outer Trim Panel Replacement (Monte Carlo) .
2	Knob, Power Seat Switch
3	Switch, Power Seat Tip: Disconnect the electrical connector. Release the tabs and pull out of the outer trim panel to remove.
