Center Pillar Lower Trim Panel Replacement

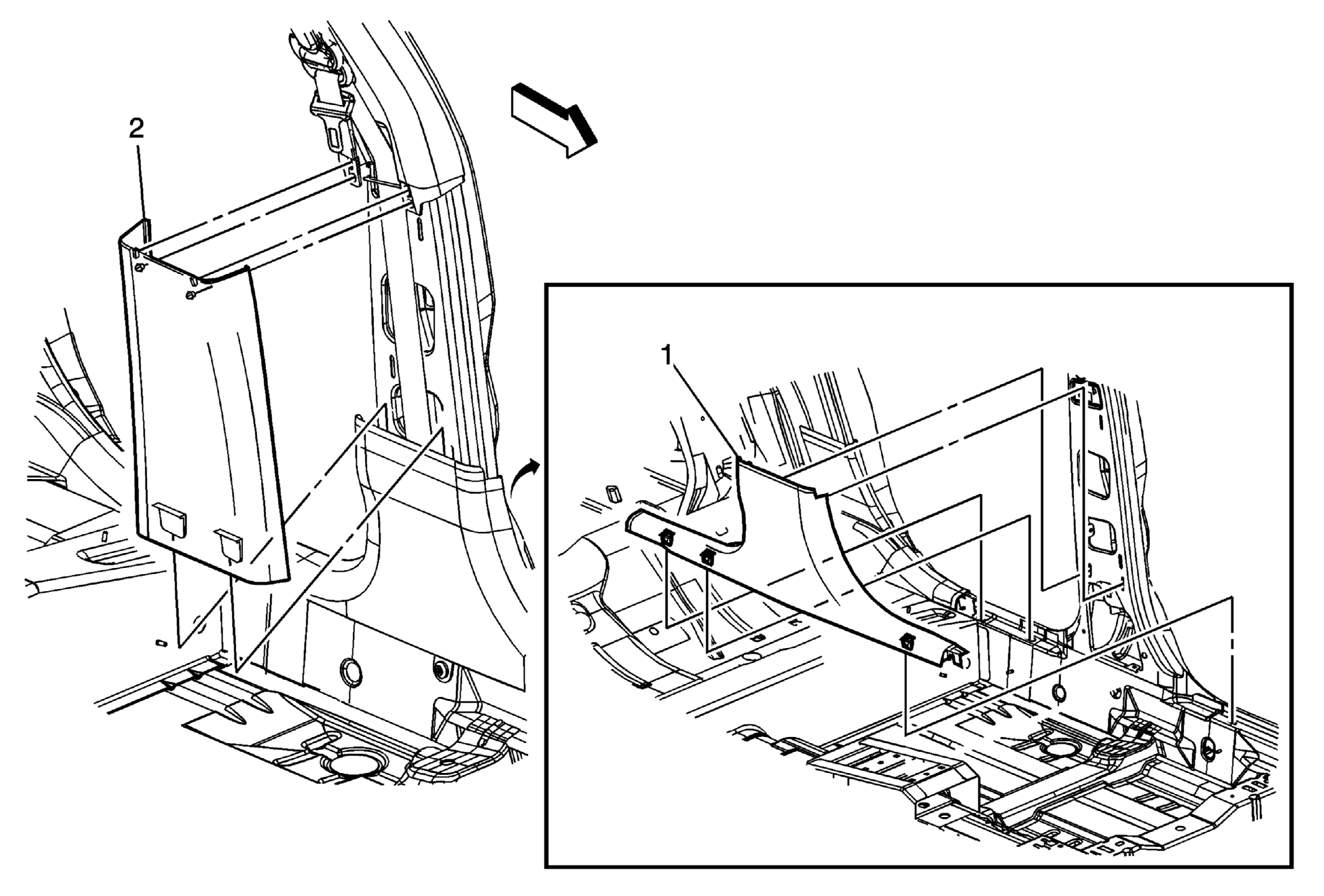

Fig 1: Identifying Lower Center Pillar Trim Panel Components

Courtesy of GENERAL MOTORS CORP.

Center Pillar Lower Trim Panel Replacement

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Front and Rear Side Door Floor Carpet Retainer
2	Center Pillar Upper Trim Panel
3	Center Pillar Trim Retainer Clip
