Console Shift Lever Bezel Replacement

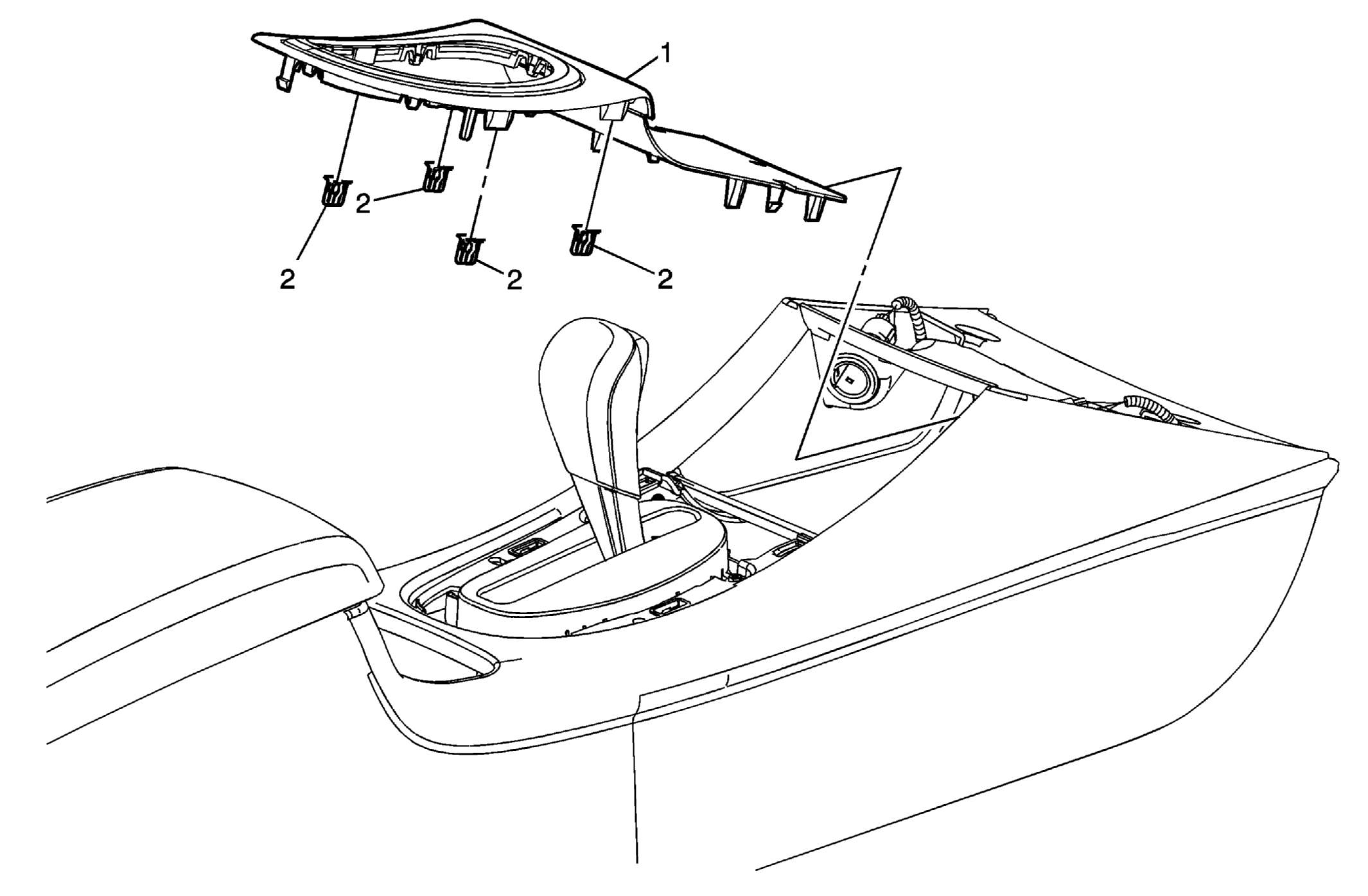

Fig 1: Identifying Console Shift Lever Bezel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Console Shift Lever Bezel Assembly Tip: Block the drive wheels. Move shift lever to the neutral position. Use a flat-bladed plastic trim tool to aid in the removal of the shift bezel. For console removal and shift lock actuator access, use ONLY a plastic trim tool to lift the trim bezel from the console. Do not use any tool between the trim bezel and the shifter. Apply the park brake and shift lever rearward. The sound deadener must be reinstalled if the wire harness is removed or replaced.
2	Retainer Clips (Qty: 4)

Callout

Component Name

Console Shift Lever Bezel Assembly
Tip:

Block the drive wheels.
Move shift lever to the neutral position.
Use a flat-bladed plastic trim tool to aid in the removal of the shift bezel.
For console removal and shift lock actuator access, use ONLY a plastic trim tool to lift the trim bezel from the console. Do not use any tool between the trim bezel and the shifter.
Apply the park brake and shift lever rearward. The sound deadener must be reinstalled if the wire harness is removed or replaced.

Retainer Clips (Qty: 4)
