Rear Door Lock Replacement

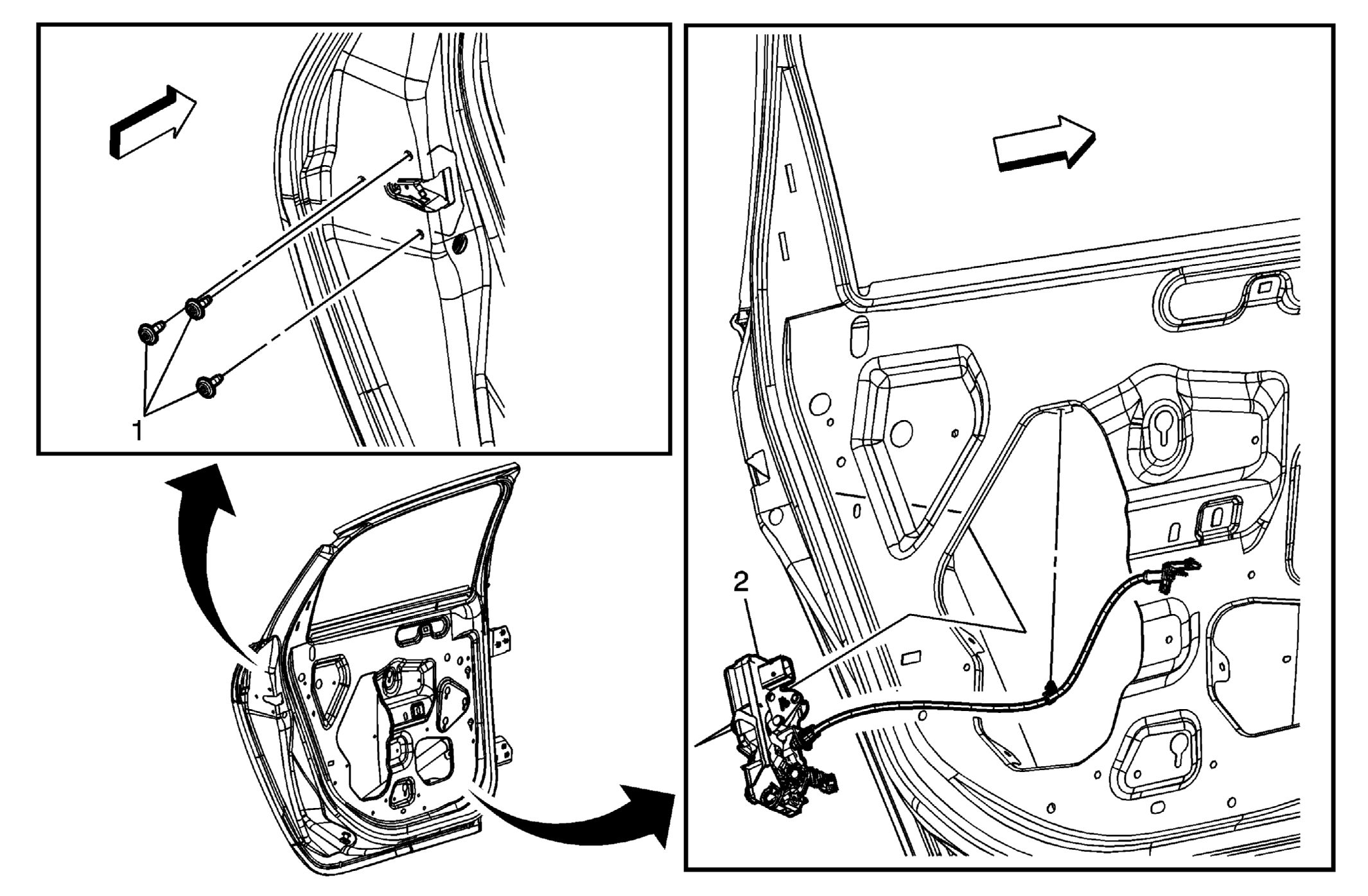

Fig 1: Exploded View Of Rear Door Lock
GM1646566Courtesy of GENERAL MOTORS CORP.
Rear Door Lock Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedures

  1. Remove the rear door outside handle. Refer to Rear Side Door Outsider Handle Replacement .
  2. Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement (Impala) .
  3. Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .
1 Bolt, Rear Side Door Lock (Qty: 3)

Tighten:  10 N.m (89 lb in)
2 Lock Assembly, Rear Side Door
Tip:
  1. Release the inside handle cable retainers before removing the door lock.
  2. Disconnect the door lock electrical connector.
  3. Remove the door lock with the outside handle housing.
  4. Transfer the handle and lock rods to the new door lock.
