Rear Side Door Trim Panel Replacement (Impala)

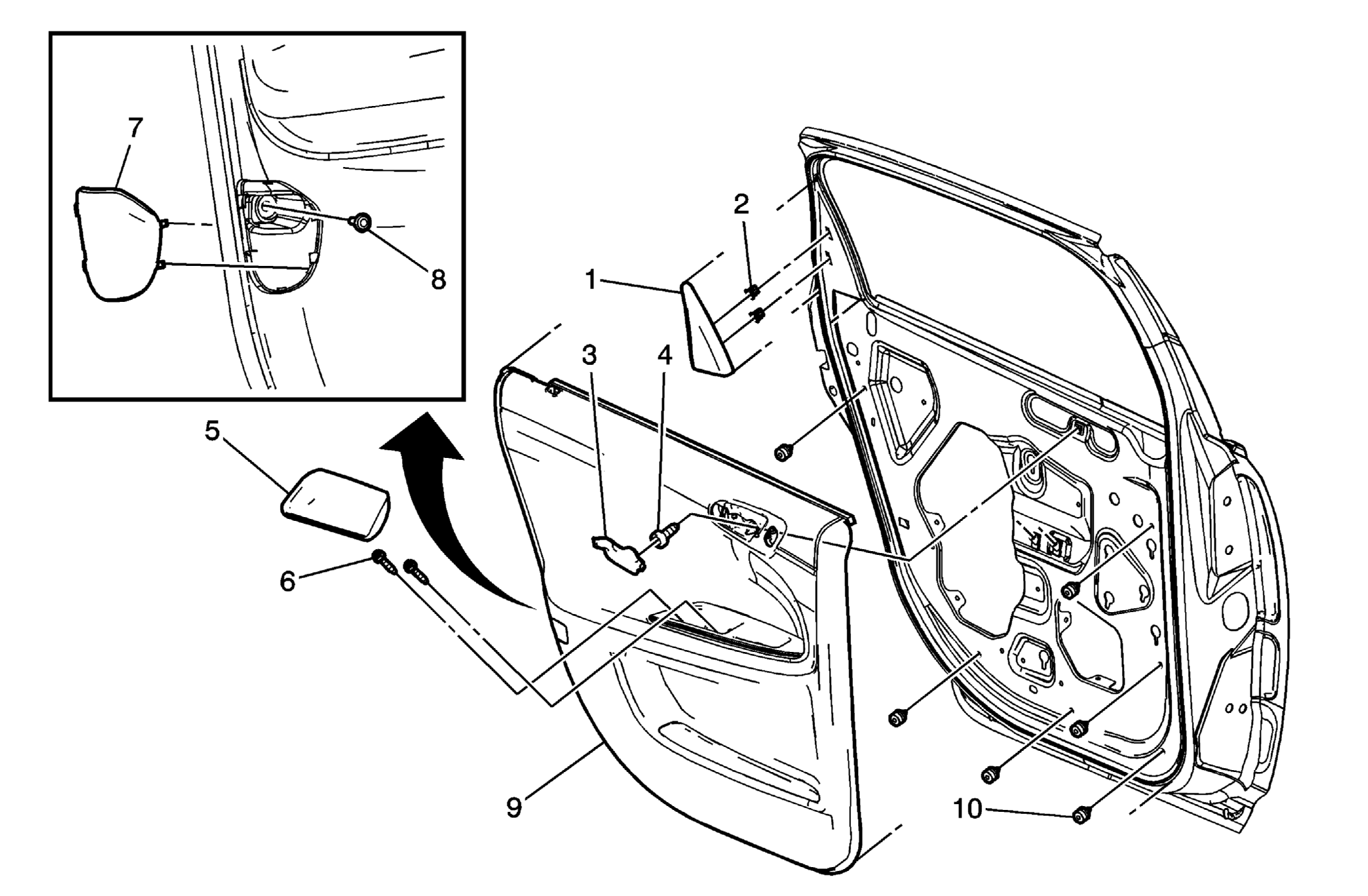

Fig 1: Identifying Side Rear Door Trim Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Cover, Rear Side Door Inside Handle Bezel
2	Screw, Rear Side Door Inside Handle Bezel Tighten: 2 N.m (18 lb in)
3	Cover, Armrest Finish
4	Screw, Rear Side Door Pull Handle Tighten: 2 N.m (18 lb in)
5	Reflector, Rear Side Door Trim Panel
6	Screw, Rear Side Door Trim Panel Tighten: 2 N.m (18 lb in)
7	Trim Assembly, Rear Side Door
8	Panel Assembly, Side Door Upper Trim Tip: Release the inside door handle cable. Disconnect the electrical connectors.
9	Clip, Side Door Upper Trim
10	Retainer, Side Door Trim
