Front Side Door Lock Replacement (Impala)

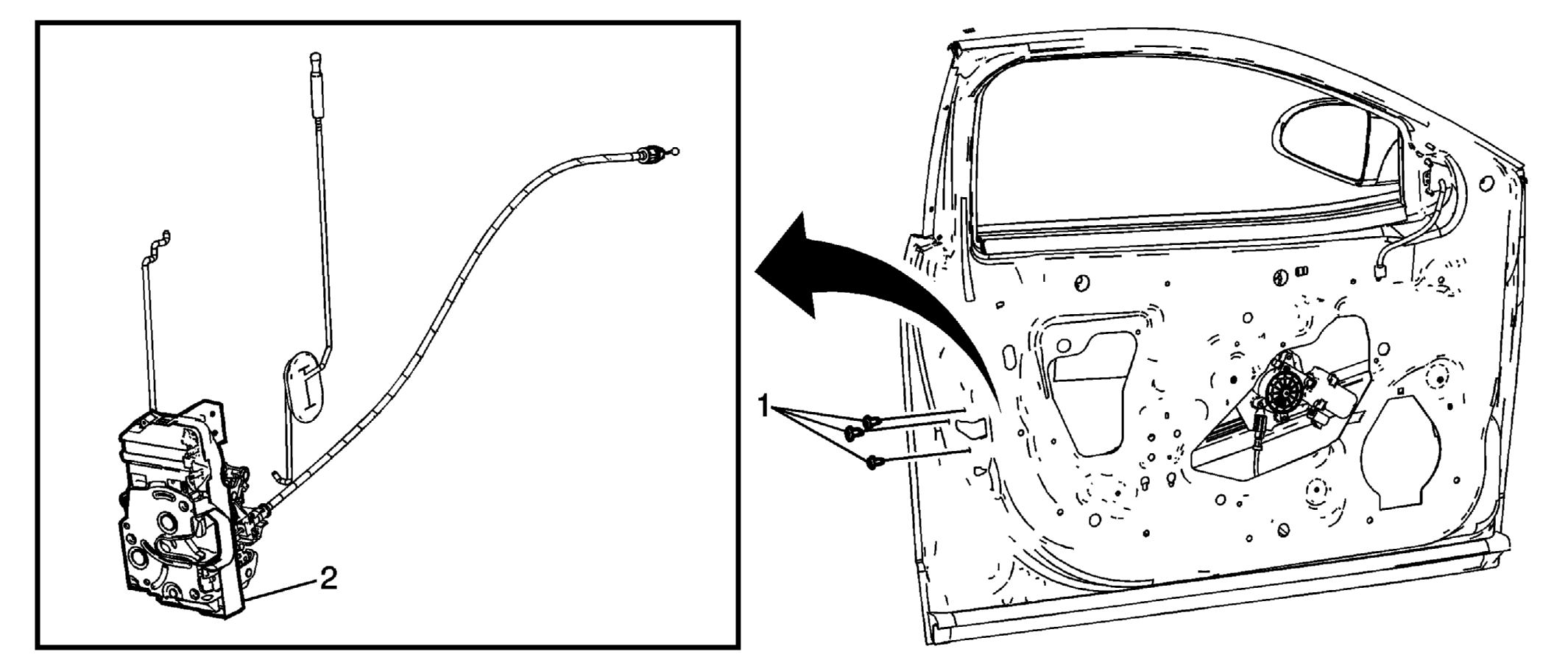

Fig 1: Exploded View Of Front Door Lock
GM1650507Courtesy of GENERAL MOTORS CORP.
Front Side Door Lock Replacement (Impala)

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedures

  1. Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement (Impala) .
  2. Remove the water deflector. Refer to Front Side Door Water Deflector Replacement (Impala) or Front Side Door Water Deflector Replacement (Monte Carlo) .
  3. Remove the outside door handle. Refer to Front Side Door Outside Handle Replacement (Impala)  or Front Side Door Outside Handle Replacement (Monte Carlo) .
1 Screw, Front Side Door Lock (Qty: 3)

Tighten:  10 N.m (89 lb in)
2 Lock Assembly, Front Side Door
Tip:
  1. Release the door lock cable retainers from the door.
  2. Disconnect the door lock electrical connector.
  3. Remove the door lock with the handle housing.
  4. Remove the handle and lock rods from the lock.
