Installation Procedure

WARNING: This page is about a different variant/trim than selected.

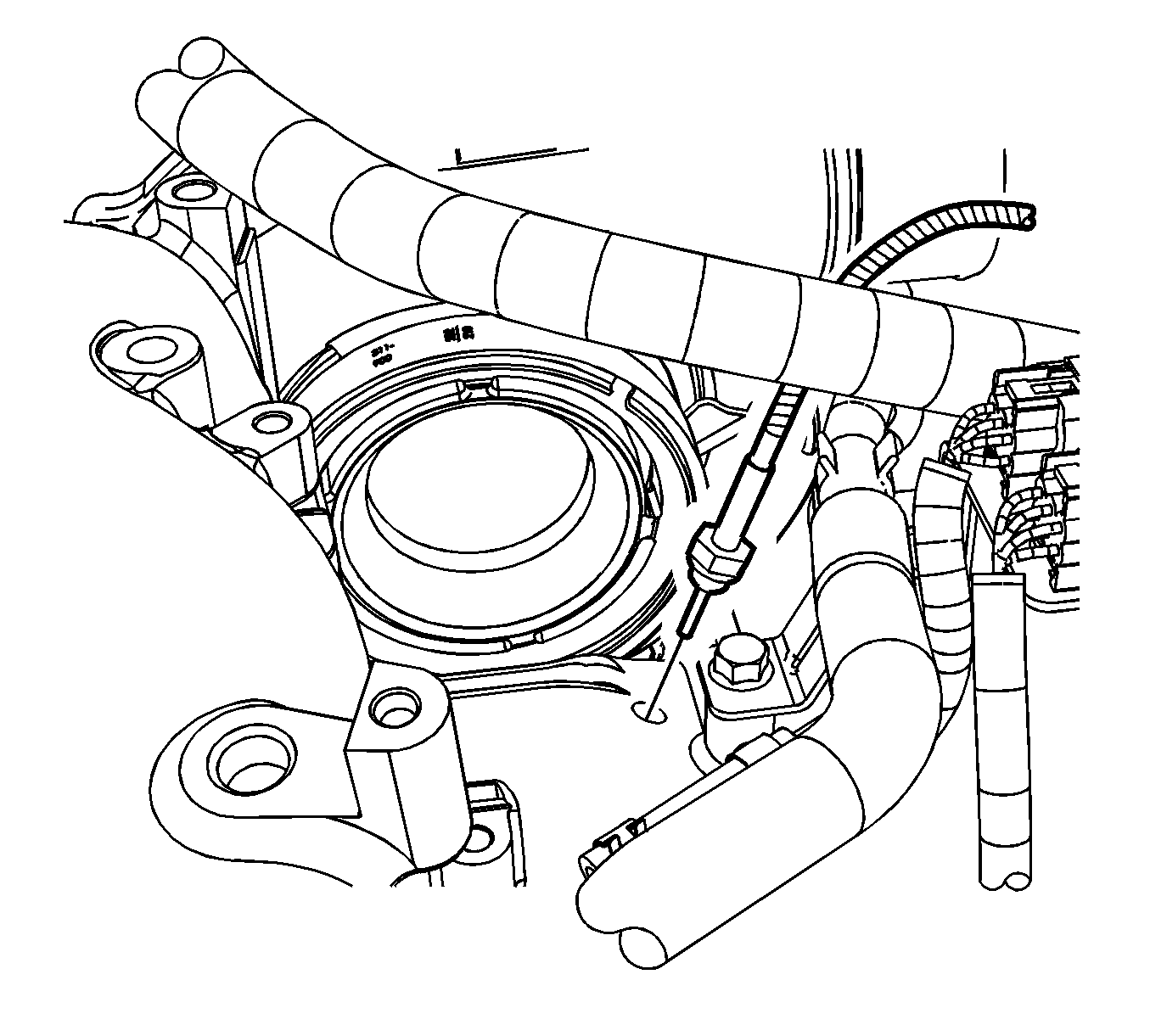

    Fig 1: View Of IAT Sensor
    GM1733089Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the IAT sensor to the center intake manifold.

    Tighten:  Tighten the IAT to 25 N.m (18 lb ft).

  2. Connect the IAT sensor (2) electrical connector.
  3. Install the air intake pipe. Refer to Air Intake Pipe Replacement .
  4. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
