Air Intake Pipe Replacement

WARNING: This page is about a different variant/trim than selected.

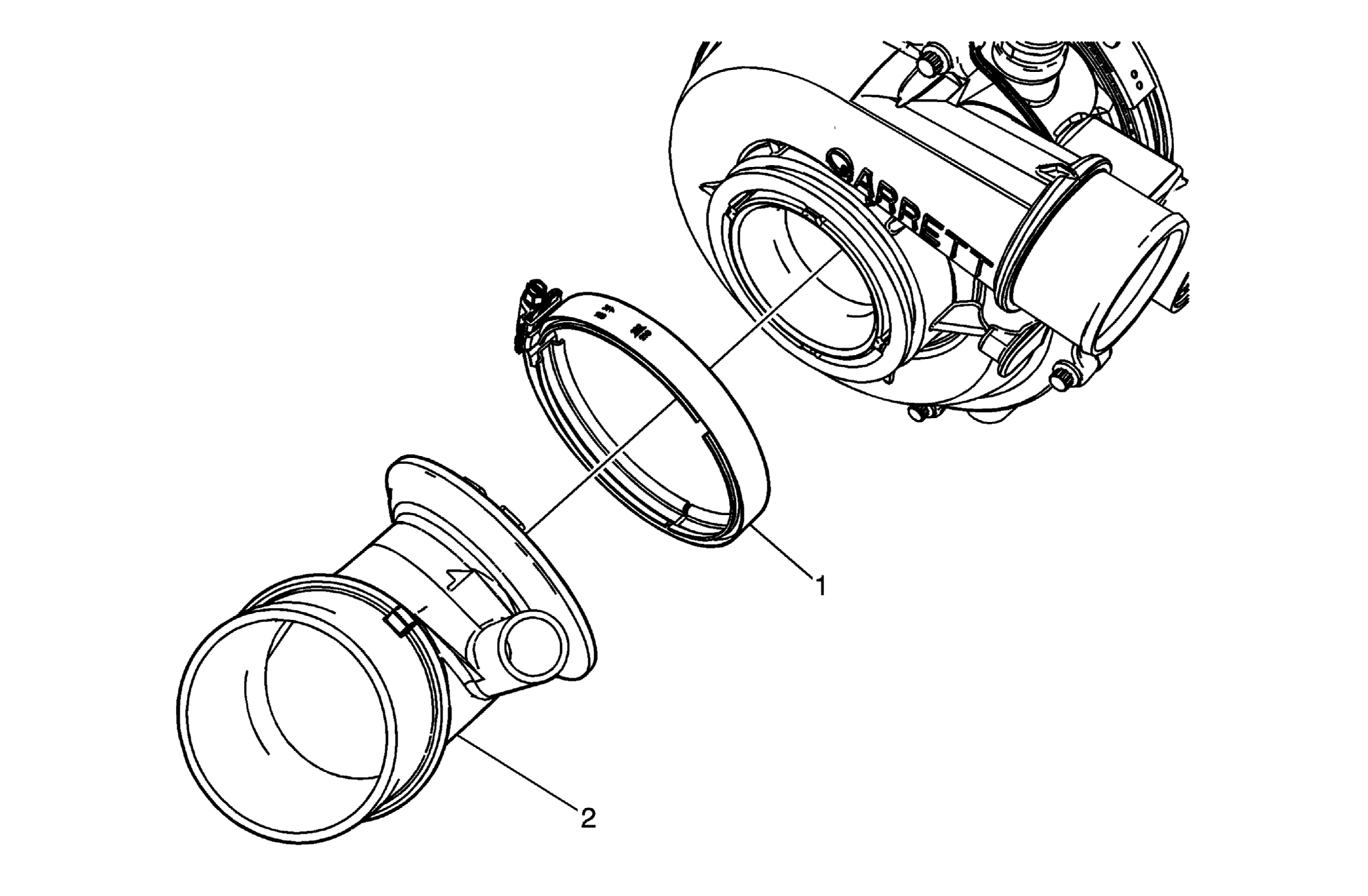

Fig 1: View Of Air Intake Pipe

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the engine cover. Refer to Engine Cover Replacement . Remove the crankcase ventilation hose. Refer to Crankcase Ventilation Hoses/Pipes Replacement (LLY, LBZ) or Crankcase Ventilation Hoses/Pipes Replacement (LMM) . Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Air Intake Pipe Clamp Tighten: 4.6 N.m (41 lb in)
2	Air Intake Pipe Tip: Align the air intake pipe to the turbocharger with the alignment notches during installation.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Air Intake Pipe Clamp

Tighten: 4.6 N.m (41 lb in)

Air Intake Pipe
Tip: Align the air intake pipe to the turbocharger with the alignment notches during installation.
