Installation Procedure

WARNING: This page is about a different variant/trim than selected.

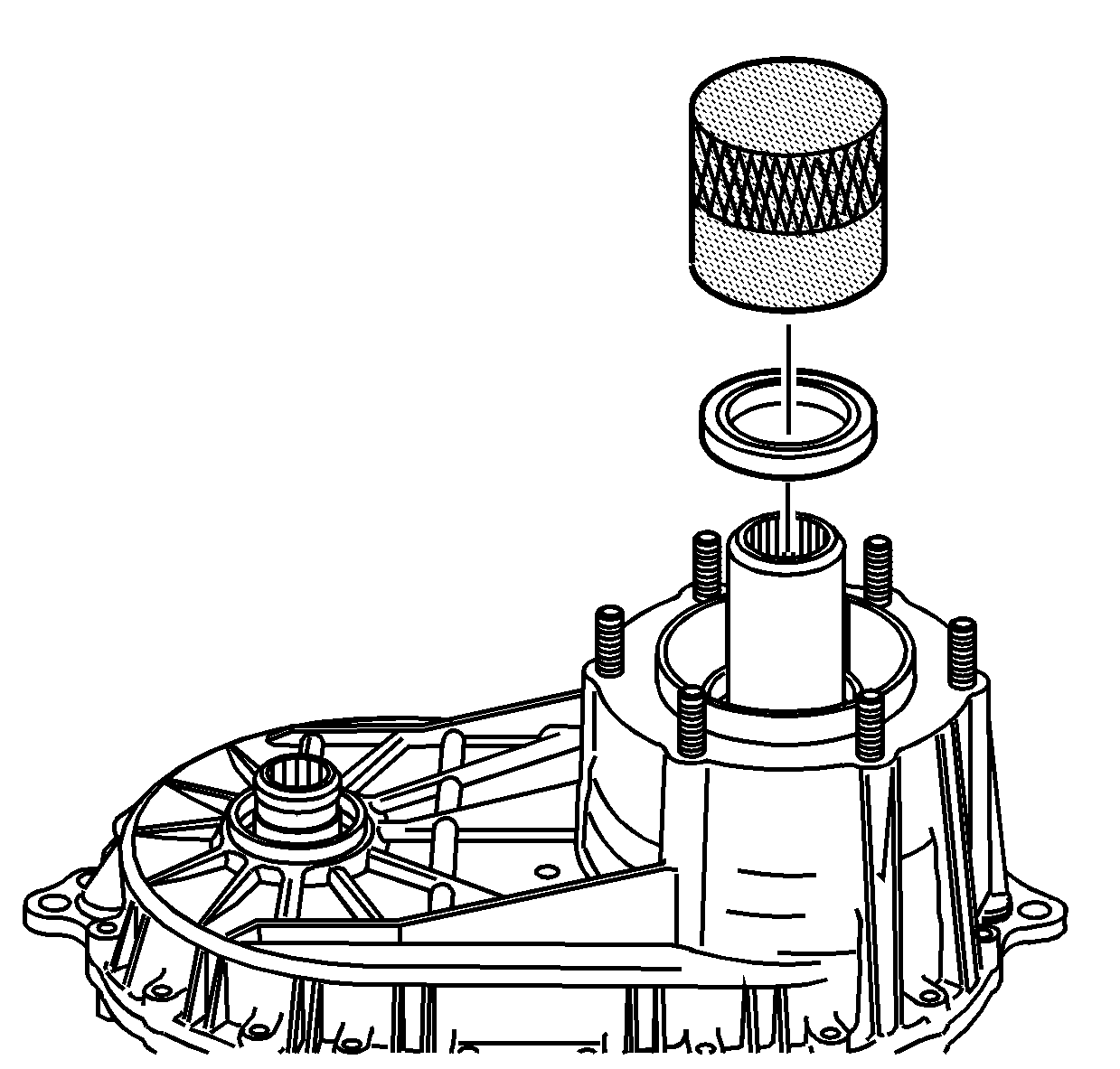

    Fig 1: Installing Front Input Shaft Seal With J 45758
    GM823255Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: When installing the input shaft seal, make sure that the part numbers on the seal are facing outward toward the technician.
  1. Position the seal on the input shaft.
  2. Using the J 45758  , install the input shaft seal in the transfer case. See Special Tools .
  3. Install the transfer case to the adapter. Refer to Transfer Case Assembly Replacement .
  4. Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
