I/P Compartment Dampener Replacement - (Impala)
Dampener Replacement - I/P Compartment (Impala)

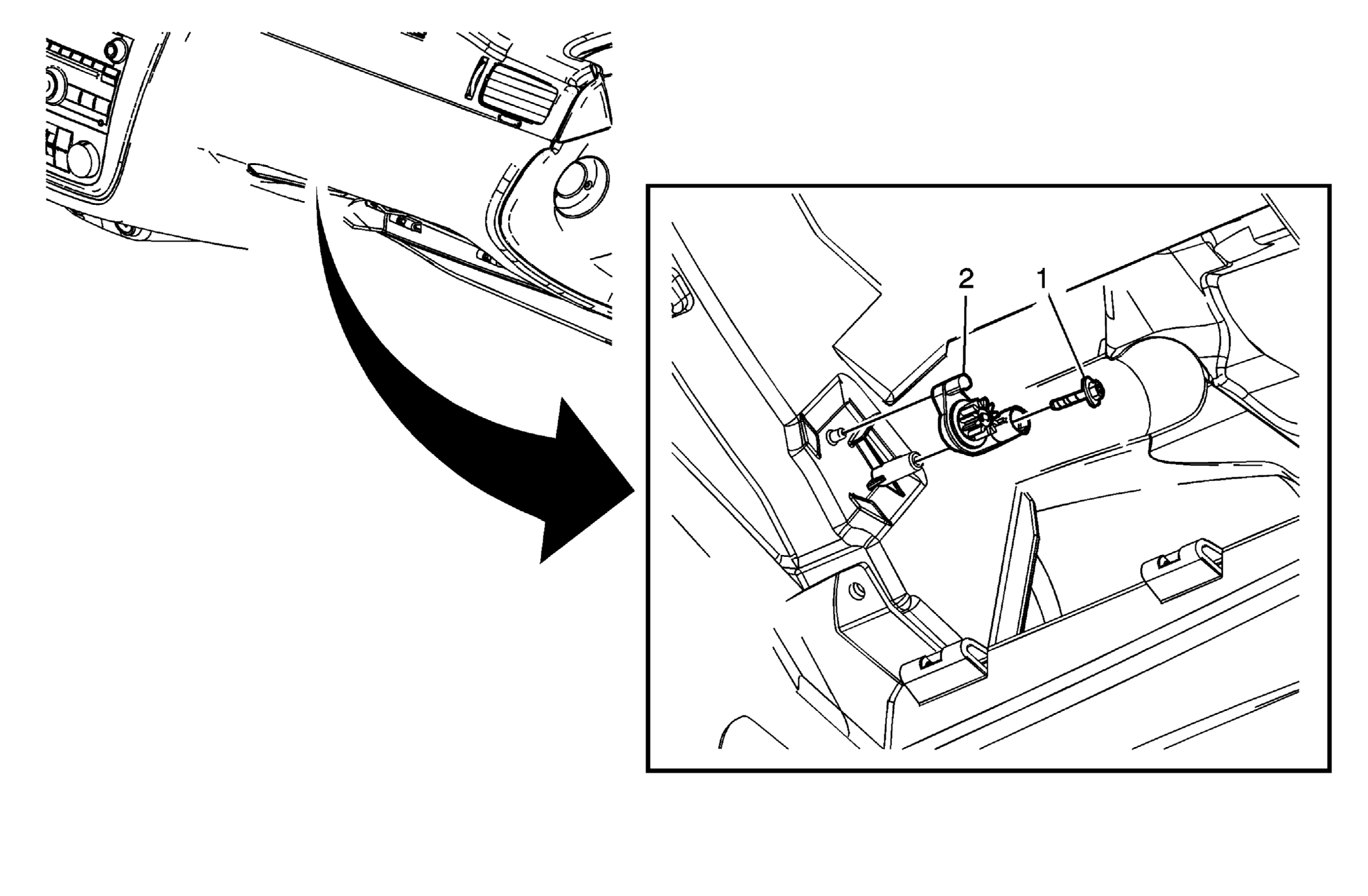

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the Instrument Panel Compartment Door Assembly. Refer to Door Replacement - Instrument Panel (I/P) Compartment (Impala) . |
|
| 1 | Screw, Instrument Panel Compartment Striker (Qty 1) Tighten: 2 N.m (18 lb in) |
| 2 | Dampener Assembly, Instrument Panel Compartment |
