Front Floor Console Armrest Replacement - (Impala)

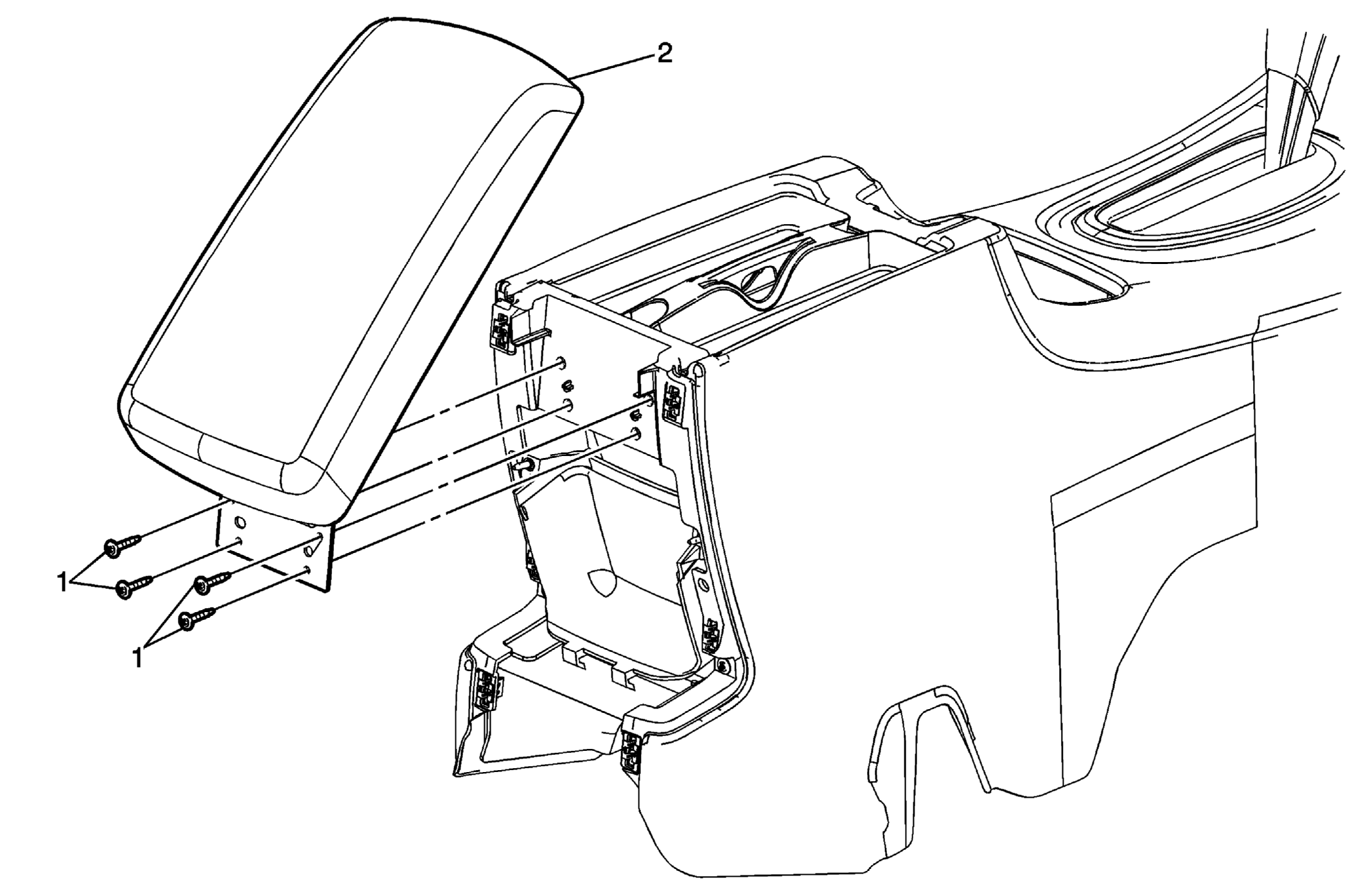

Fig 1: Replacing Front Floor Console Armrest

Courtesy of GENERAL MOTORS CORP.

Console Armrest Replacement - Front Floor (Impala)

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the Front Floor Console Rear Trim Plate. Refer to Trim Plate Replacement - Console Rear (Impala) .
1	Screw, Front Floor Console Armrest Hinge (Qty 4) Tighten:  2 N.m (18 lb in)
2	Armrest Assembly, Front Floor Console
