Console Rear Trim Plate Replacement - (Impala)

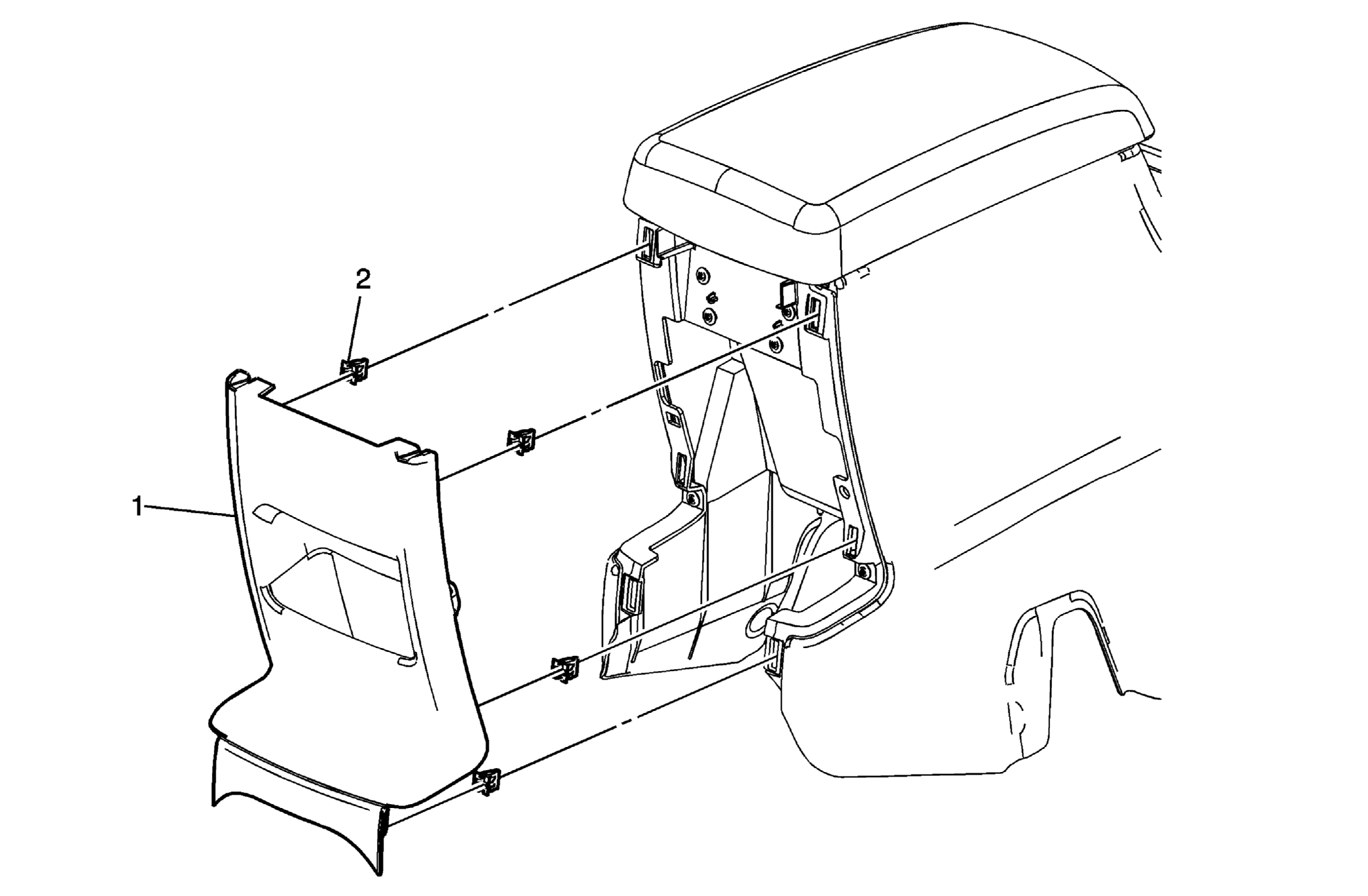

Fig 1: Replacing Console Rear Trim Plate

Courtesy of GENERAL MOTORS CORP.

Trim Plate Replacement - Console Rear (Impala)

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Plate Assembly, Front Floor Console
2	Clip, Retainer (Qty 6)
