Console Front Trim Plate Replacement - (Impala)

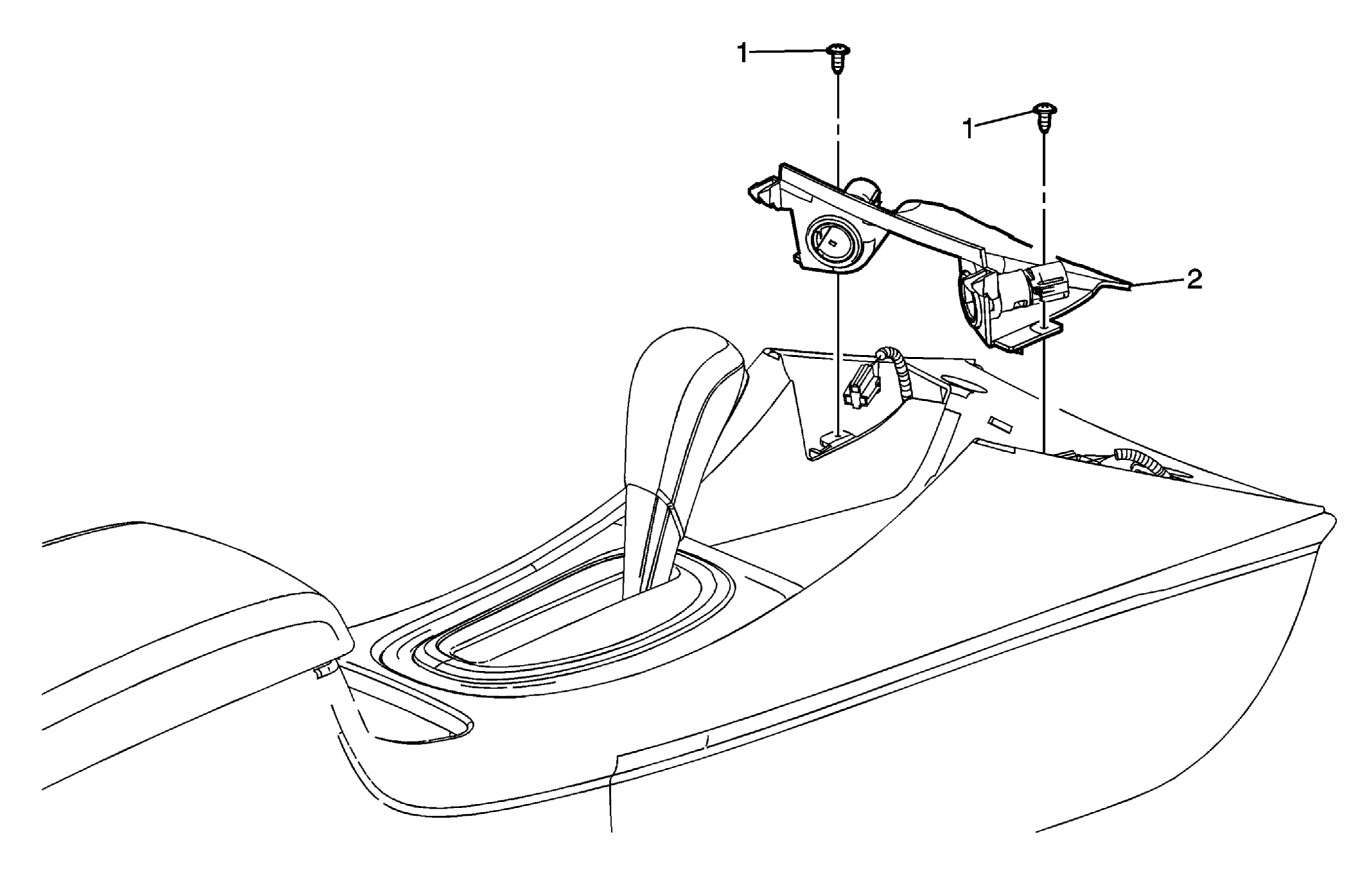

Fig 1: Replacing Console Front Trim Plate

Courtesy of GENERAL MOTORS CORP.

Trim Plate Replacement - Console Front (Impala)

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the Front Floor Console. Refer to Console Replacement - Front Floor (Impala) or Console Replacement - Front Floor (Monte Carlo) .
1	Screw, Front Floor Console Trim Panel (Qty 2) Tighten: 2 N.m (18 lb in)
2	Panel Assembly, Front Floor Console Trim Tip: Disconnect electrical connectors. Remove the 12 volt Accessory Power Receptacles. Refer to Cigar Lighter Housing or 12 Volt Accessory Power Receptacle Replacement .
