Console Floor Bracket Replacement

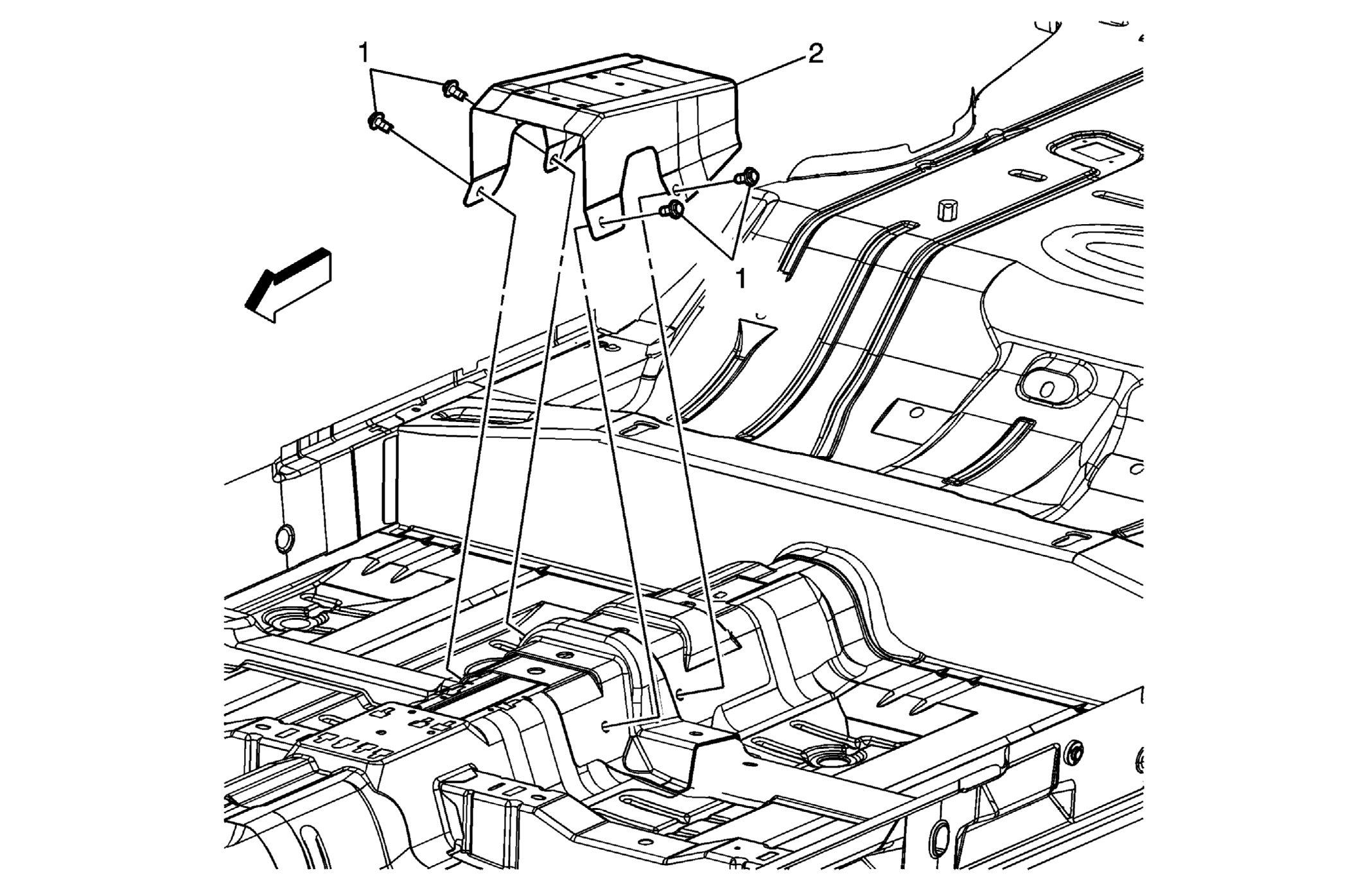

Fig 1: Replacing Console Floor Bracket

Courtesy of GENERAL MOTORS CORP.

Bracket Replacement - Console Floor

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the Front Floor Console. Refer to Console Replacement - Front Floor (Impala) or Console Replacement - Front Floor (Monte Carlo) .
1	Front Floor Console Reinforcement Bracket Bolts (Qty 4) Tip: Pull the carpet back enough to access the bolts. Tighten: 44 N.m (32 lb ft)
2	Front Floor Console Reinforcement Bracket Assembly
